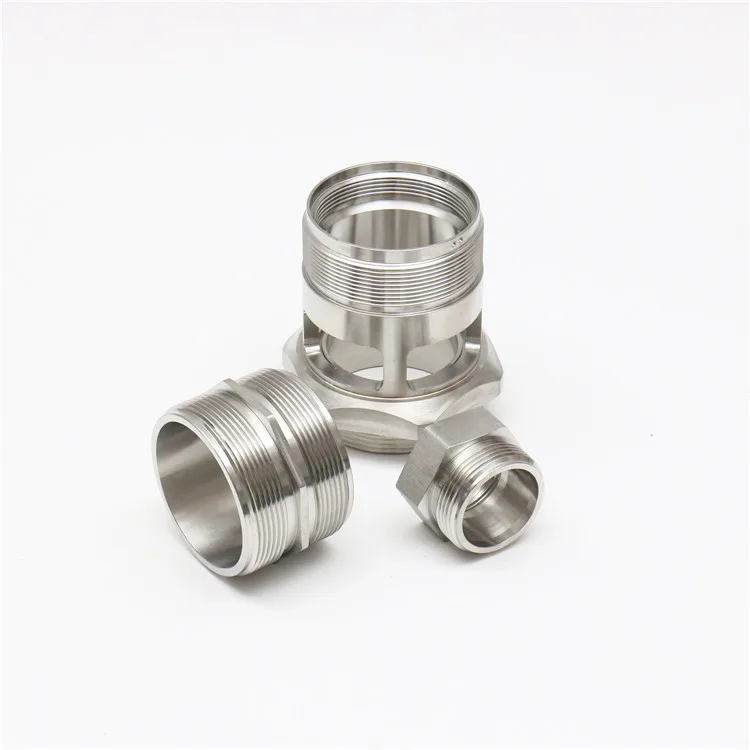

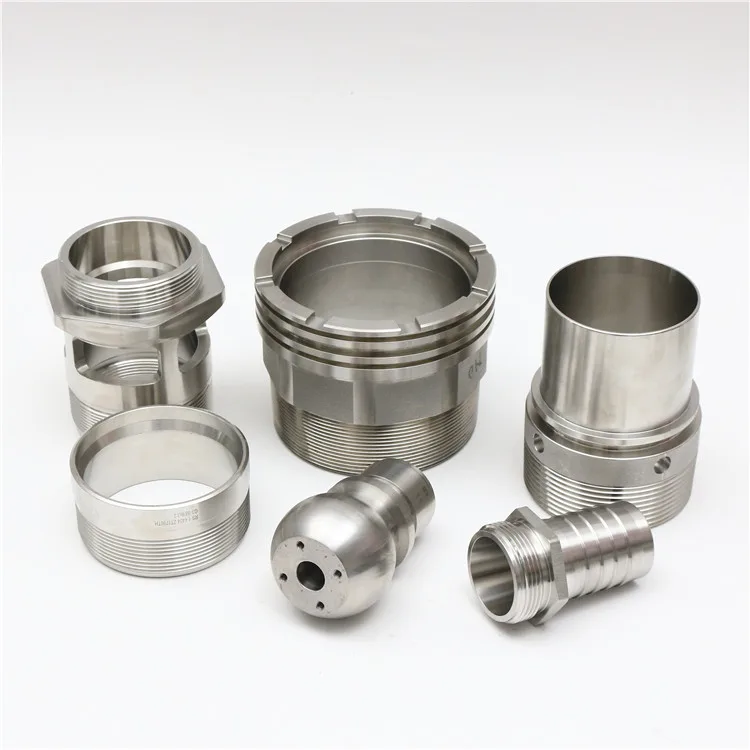

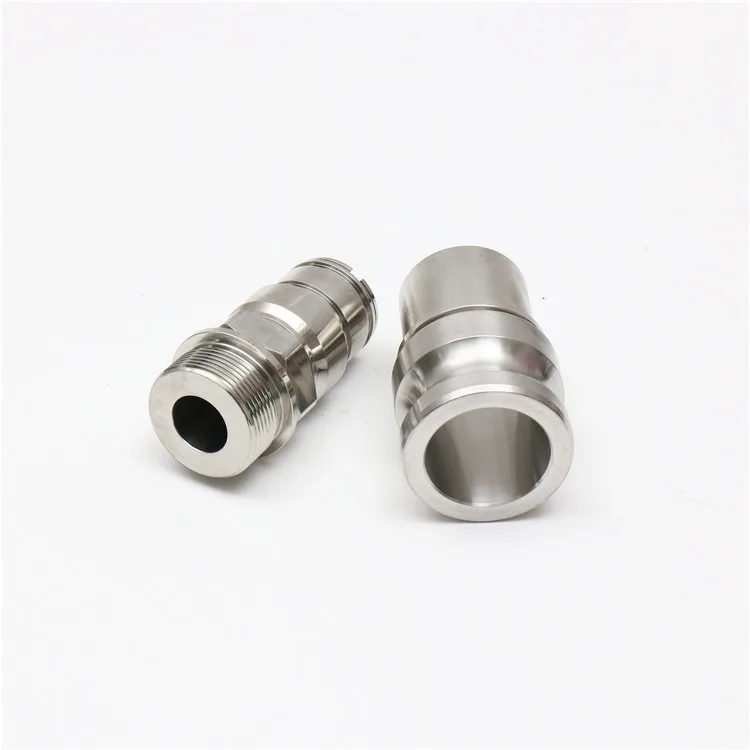

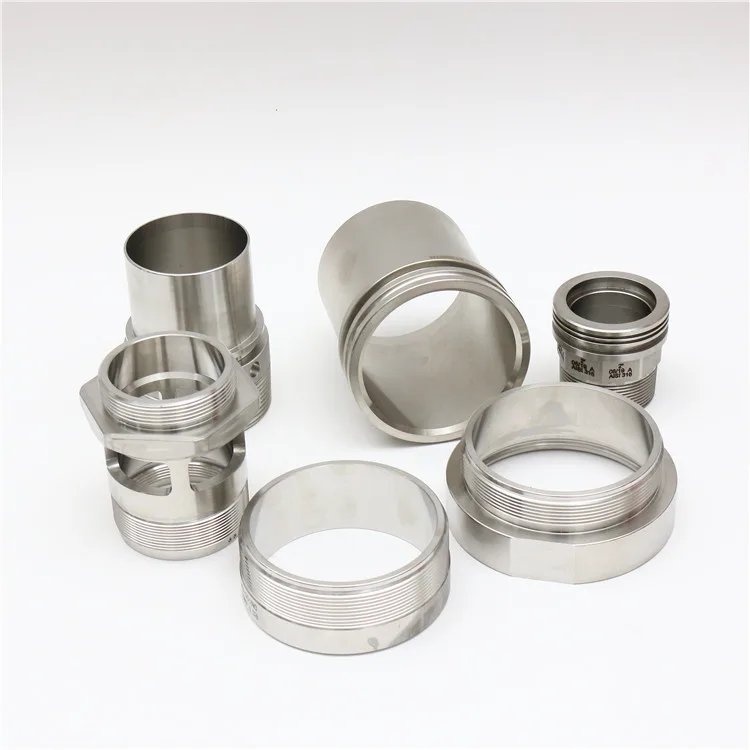

Stainless Steel Pipe Fitting and Valve Housing

A pipe fitting for the connection arrangement shown in the order drawing. This pipe fitting and valve housing is specified in Stainless Steel. The manufacturing specification includes machining.

Technical Overview

• Part: Pipe Fitting and Valve Housing
• Material: Stainless Steel
• Processing: Machined

Pipe Fitting and Valve Housing Design and Assembly

• End connections: identify the thread, tube, weld or other connection types actually required.
• Flow opening: specify bore dimensions and the relationship between the two ends.
• Installation features: define wrenching flats, orientation and the space available for assembly.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Specify end types, nominal dimensions, bore and any wrenching features. Confirm the applicable thread or connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
