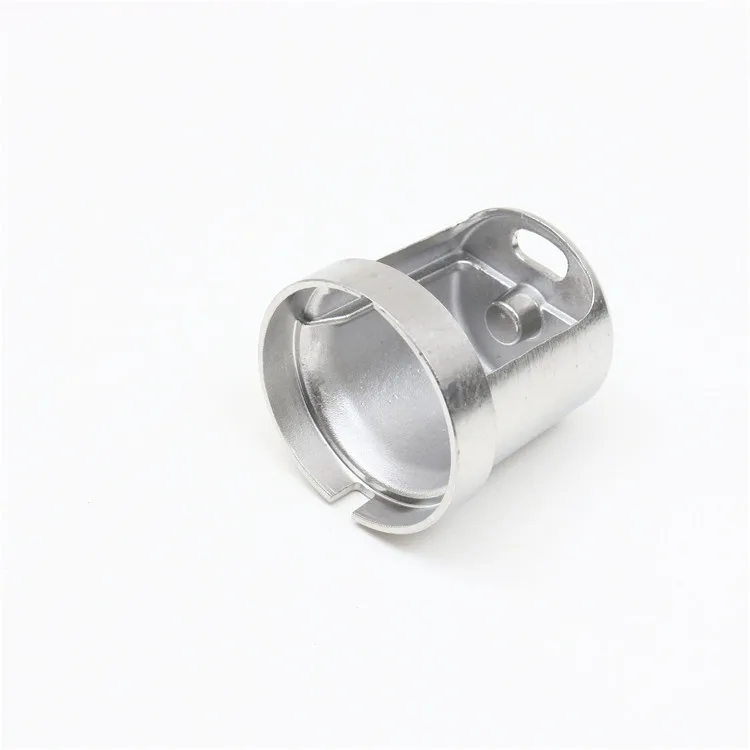

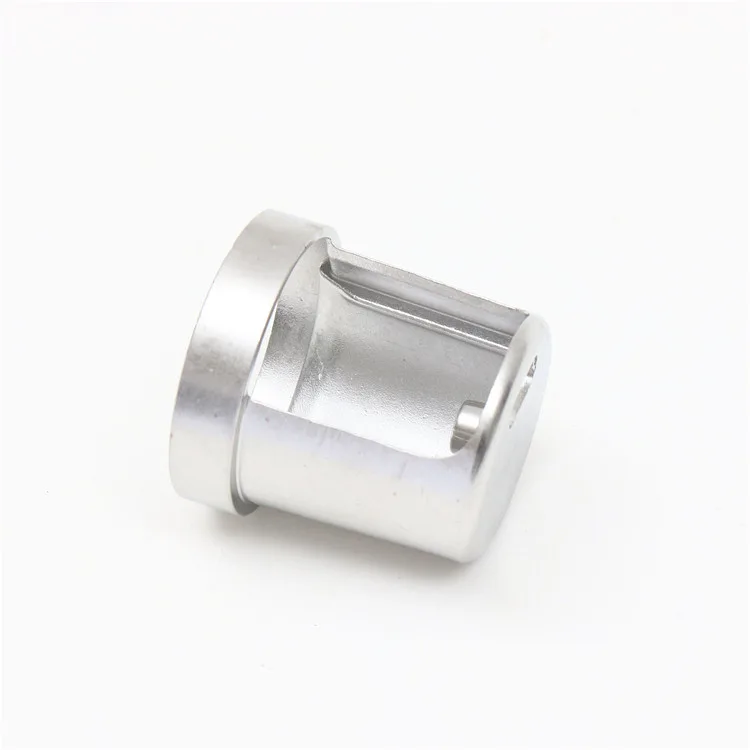

Investment-Cast Stainless Steel Dough Machine Die Head Bracket

A bracket for the die-head arrangement in the named dough machine. This dough machine die head bracket is specified in Stainless Steel. The manufacturing specification includes investment casting and precision machining.

Technical Overview

• Part: Dough Machine Die Head Bracket
• Material: Stainless Steel
• Processing: Precision Machined, Investment-Cast

Dough Machine Die Head Bracket Design and Assembly

• Part geometry: provide a dimensioned drawing showing the complete outline and any functional internal features.
• Assembly interfaces: identify the mating parts, installation datums and dimensions that control fit.
• Order definition: specify the material, required surface condition and which features need particular inspection attention.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify die-head mounting geometry, support faces and access clearances. Identify the machine model and contact-surface requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
