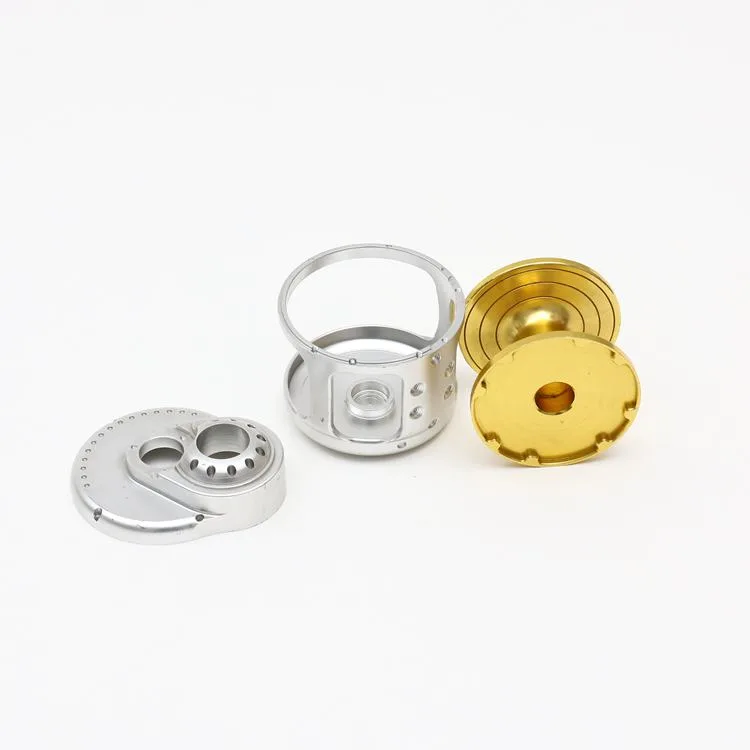

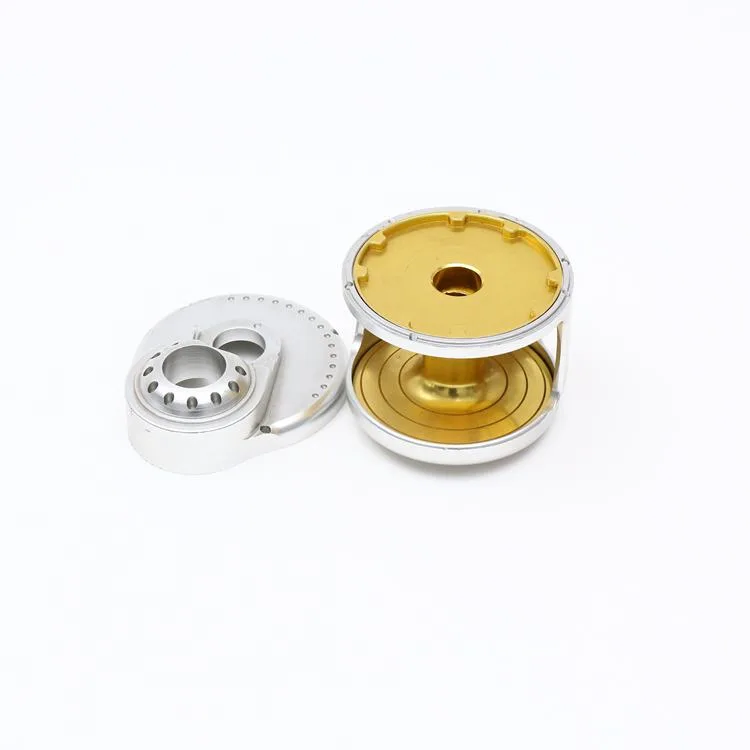

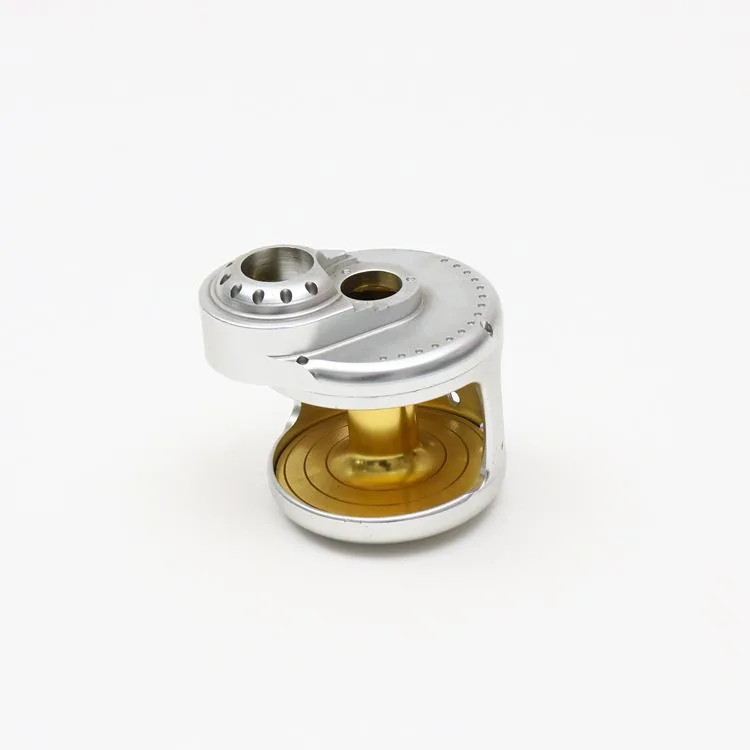

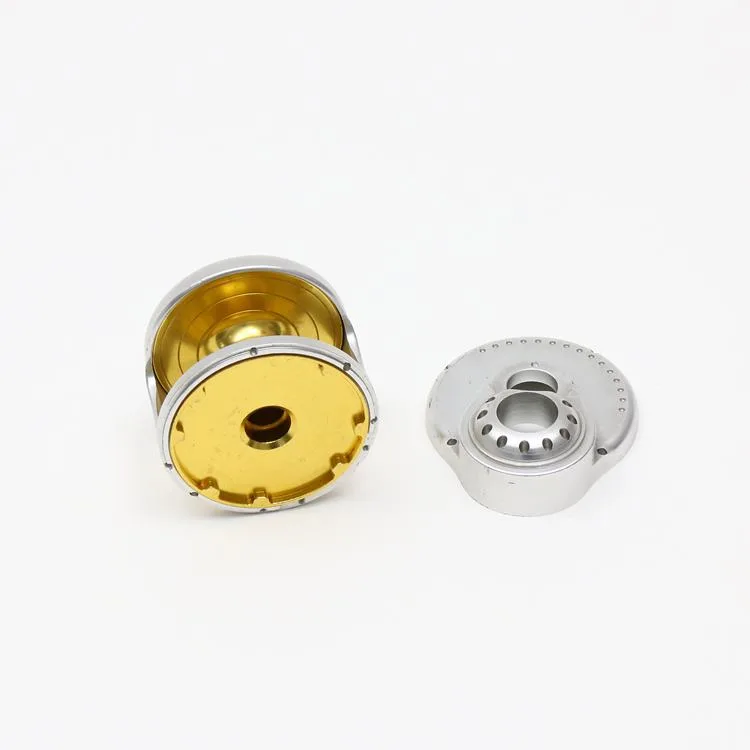

Custom Hot-Forged Fishing Reel Cover

A cover item for a fishing reel assembly. This fishing reel cover is produced to the specified part drawing. The manufacturing specification includes hot forging and precision machining.

Technical Overview

• Part: Fishing Reel Cover
• Processing: Precision Machined, Hot-Forged

Fishing Reel Cover Design and Assembly

• Housing match: provide the profile and locating features that connect the cover to the reel.
• Fastener pattern: define attachment points and any removable access features.
• Mechanism clearance: show the space required around the enclosed winding or drive components.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Hot forging is included in the specification. Distinguish the forged blank from the finished component, with any subsequent machining, trimming and treatment requirements stated in the order drawing.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide the reel housing interface, fastening details and clearances for the enclosed winding mechanism. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
