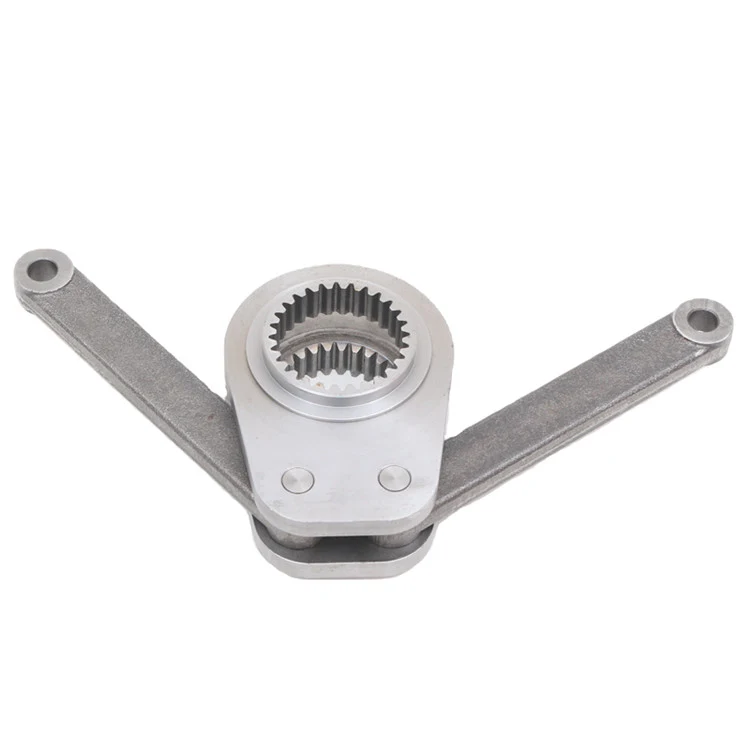

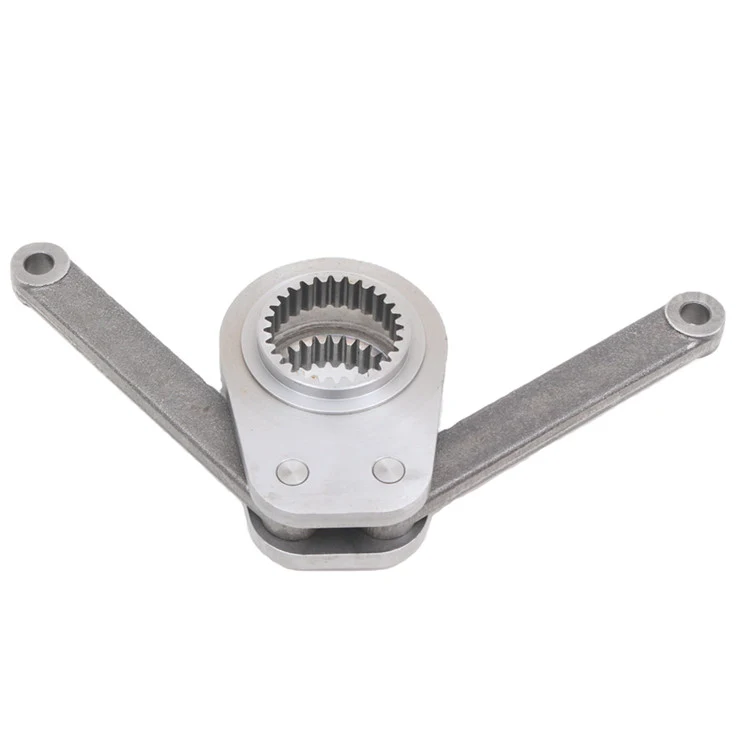

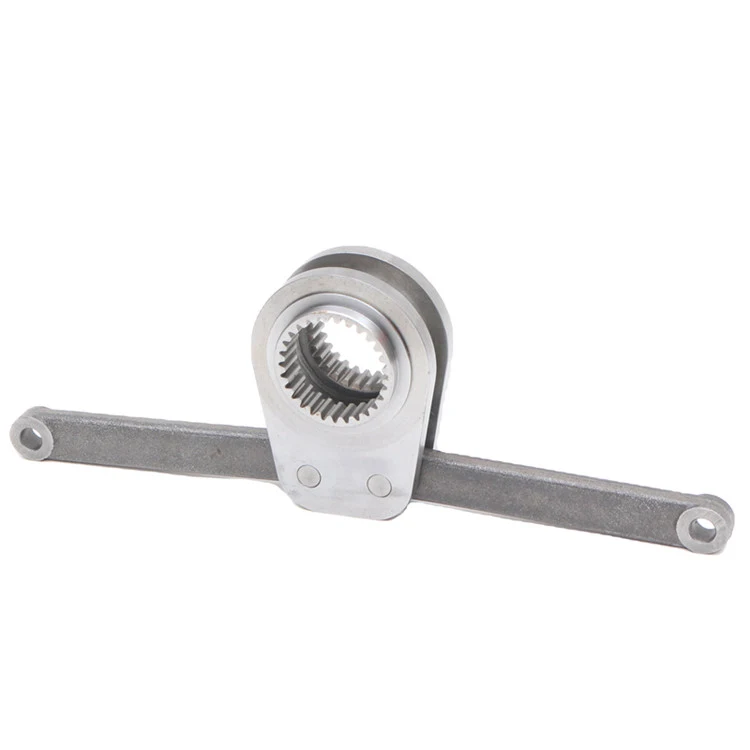

Investment-Cast Carbon Steel High-Voltage Switch Crankshaft

A mechanical item for the high-voltage switch assembly used with this component. This high-voltage switch crankshaft is specified in Carbon Steel. The manufacturing specification includes investment casting.

Technical Overview

• Part: High-Voltage Switch Crankshaft
• Material: Carbon Steel
• Processing: Investment-Cast

High-Voltage Switch Crankshaft Design and Assembly

• Mechanism position: identify the switch assembly and the part's role in its mechanical arrangement.
• Linkage geometry: provide mounting, pivot or engagement dimensions relevant to this component.
• Assembly constraints: state the required movement clearances and any electrical-equipment constraints separately.

Material and Manufacturing Requirements

The specified material is carbon steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Quotation Information

Provide the switch mechanism drawing and the component's installation position. Confirm mechanical clearances and any electrical-system constraints separately. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
