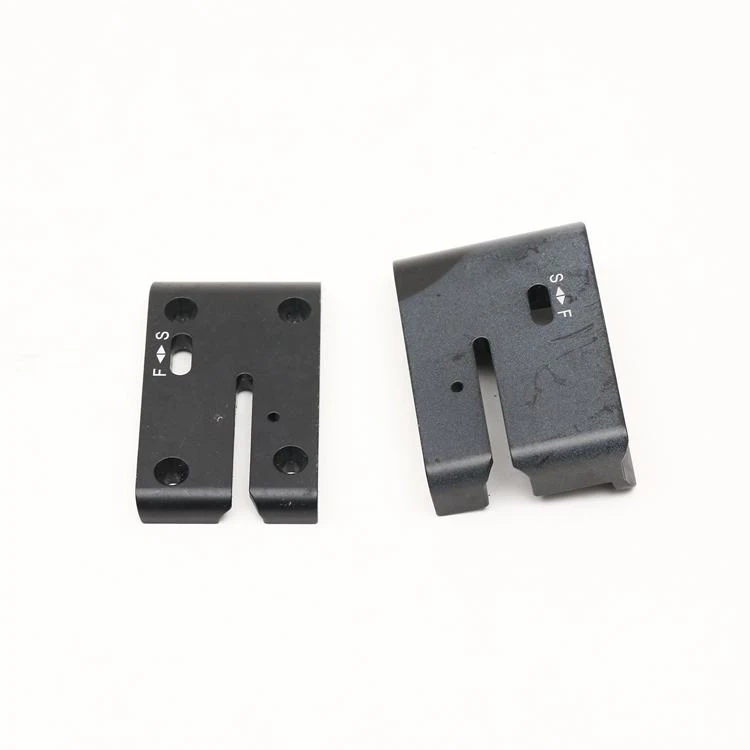

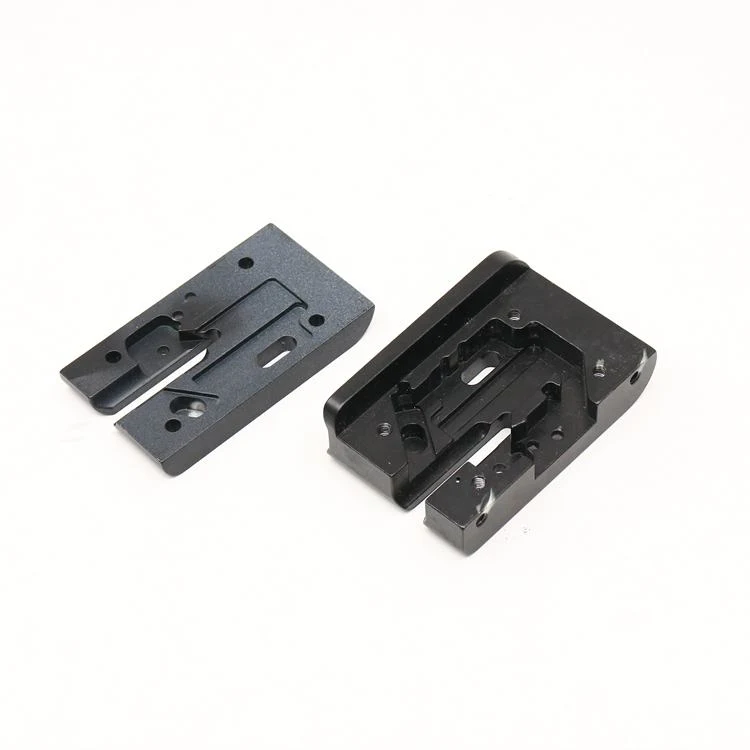

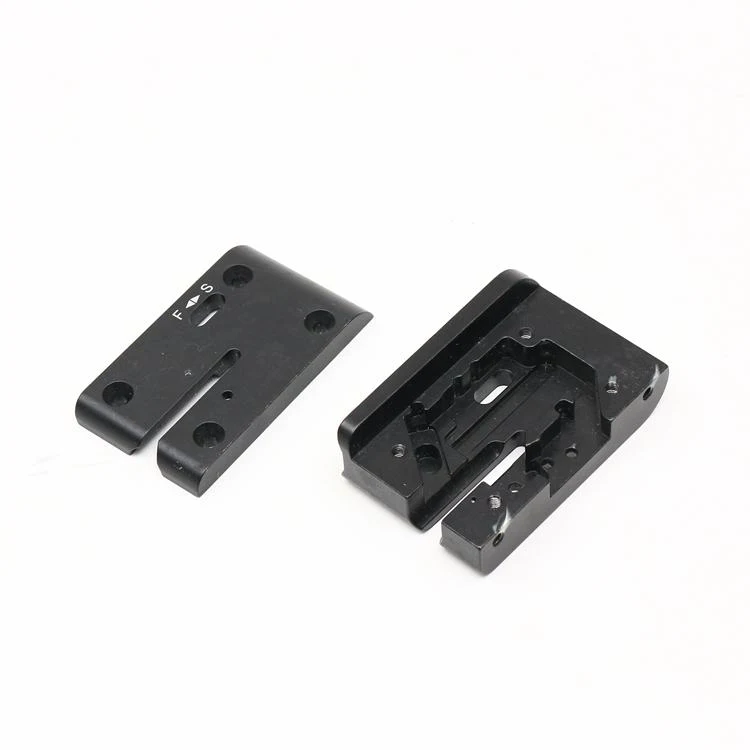

6061 Aluminum Lock Component

A part for the locking mechanism used with this component. This lock component is specified in 6061 Aluminum. The manufacturing specification includes precision machining.

Technical Overview

• Part: Lock Component
• Material: 6061 Aluminum
• Processing: Precision Machined

Lock Component Design and Assembly

• Mechanism interface: identify the mating lock assembly and the role of the ordered component.
• Engagement geometry: define the contact profile and the clearance around moving parts.
• Mounting references: show pivot, guide or fastening positions relative to the lock mechanism.

Material and Manufacturing Requirements

The specified material is 6061 Aluminum. Include the applicable grade designation and delivery condition in the drawing or purchase specification, together with any material documentation required for the order.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Show engagement surfaces, mounting datums and clearance to moving lock parts. Confirm the specific component required. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
