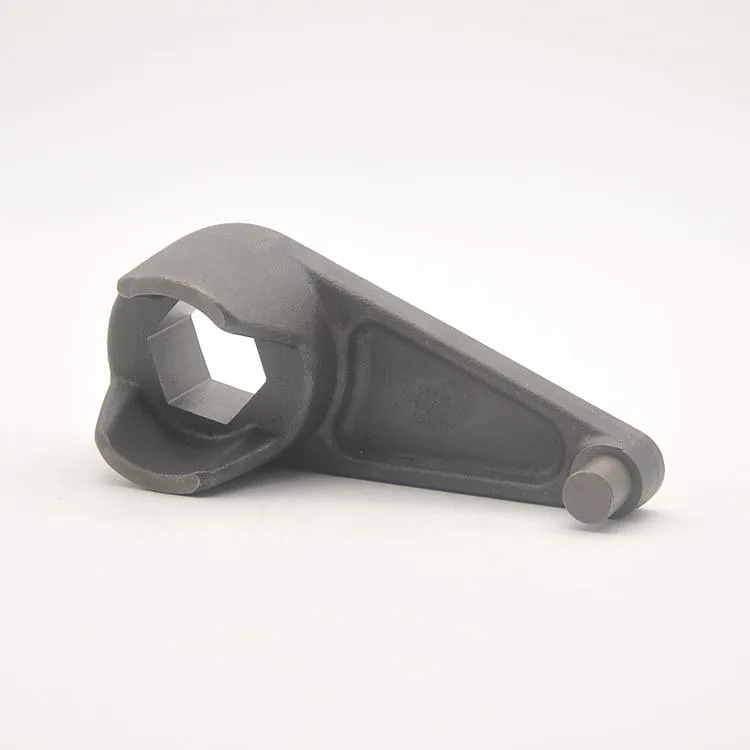

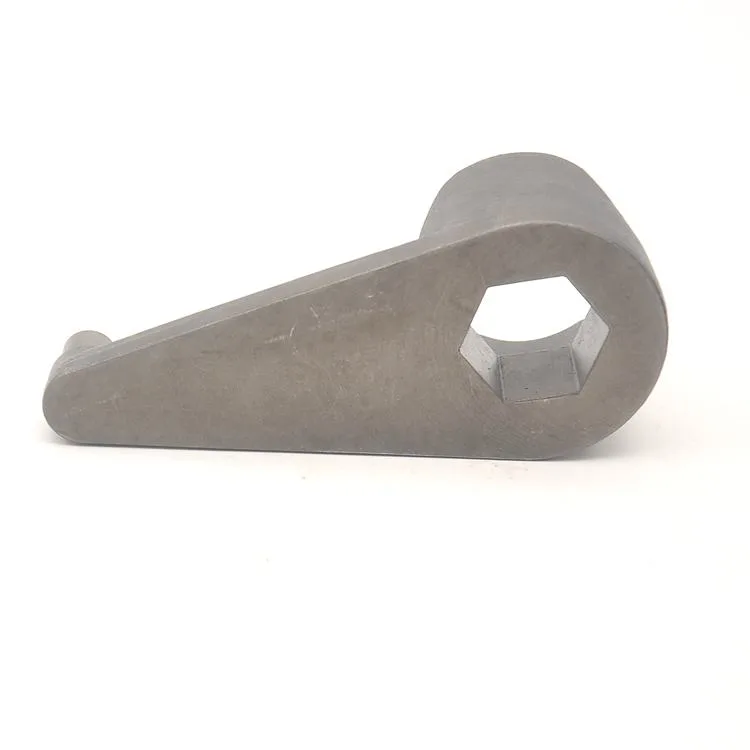

Custom Crank

A crank item for the linkage arrangement used with this component. This crank is produced to the specified part drawing. The manufacturing specification includes machining.

Technical Overview

• Part: Crank
• Processing: Machined

Crank Design and Assembly

• Part geometry: provide a dimensioned drawing showing the complete outline and any functional internal features.
• Assembly interfaces: identify the mating parts, installation datums and dimensions that control fit.
• Order definition: specify the material, required surface condition and which features need particular inspection attention.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Provide pivot-center spacing, attachment geometry and required angular relationships on the drawing. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
