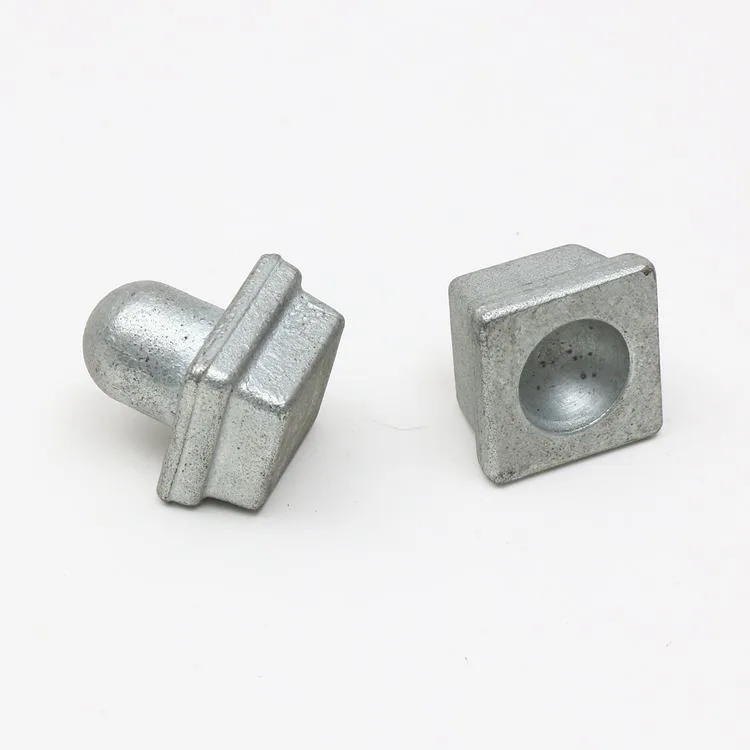

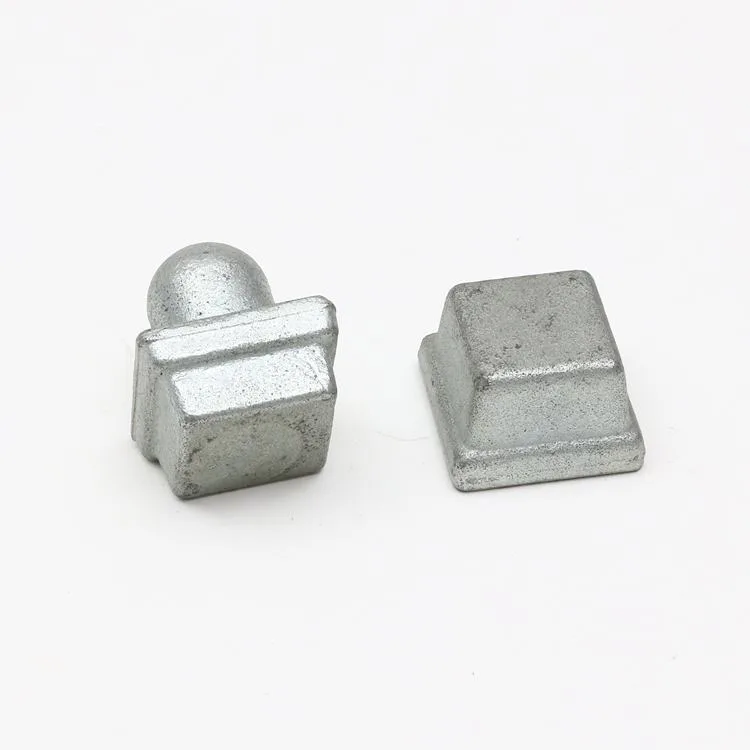

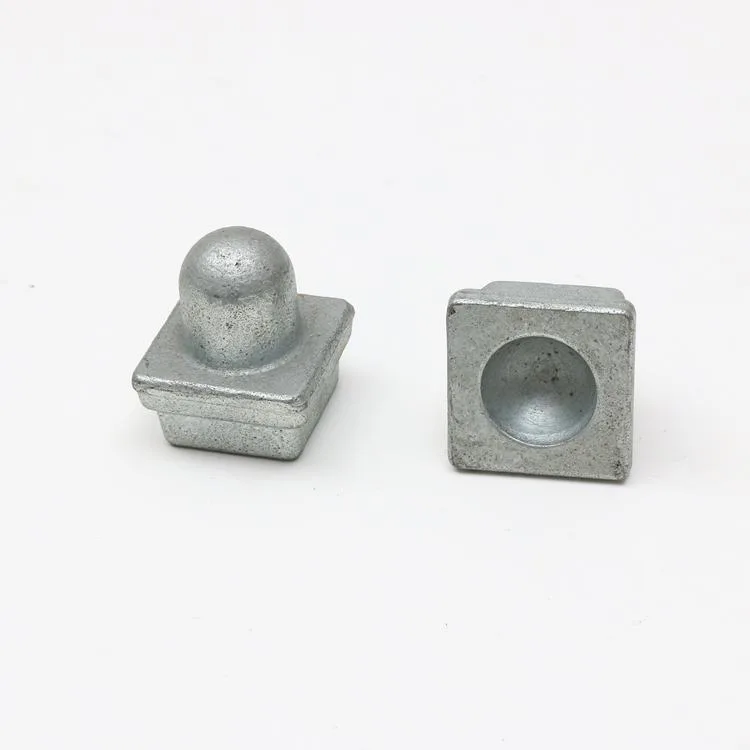

Hot-Forged Door Lock Component

A part for a door lock mechanism, with its engagement geometry defined by the lock design. This door lock component is produced to the specified part drawing. The manufacturing specification includes hot forging and precision machining.

Technical Overview

• Part: Door Lock Component
• Processing: Precision Machined, Hot-Forged

Door Lock Component Design and Assembly

• Mechanism interface: identify the mating lock assembly and the role of the ordered component.
• Engagement geometry: define the contact profile and the clearance around moving parts.
• Mounting references: show pivot, guide or fastening positions relative to the lock mechanism.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Hot forging is included in the specification. Distinguish the forged blank from the finished component, with any subsequent machining, trimming and treatment requirements stated in the order drawing.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify the lock model or mating mechanism, pivot or mounting locations and the required latch clearances. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
