Description

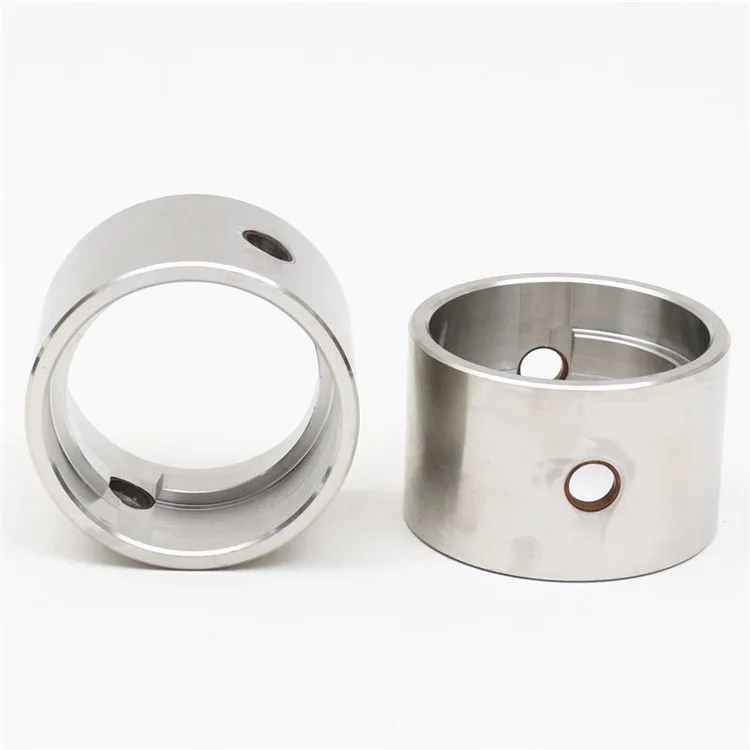

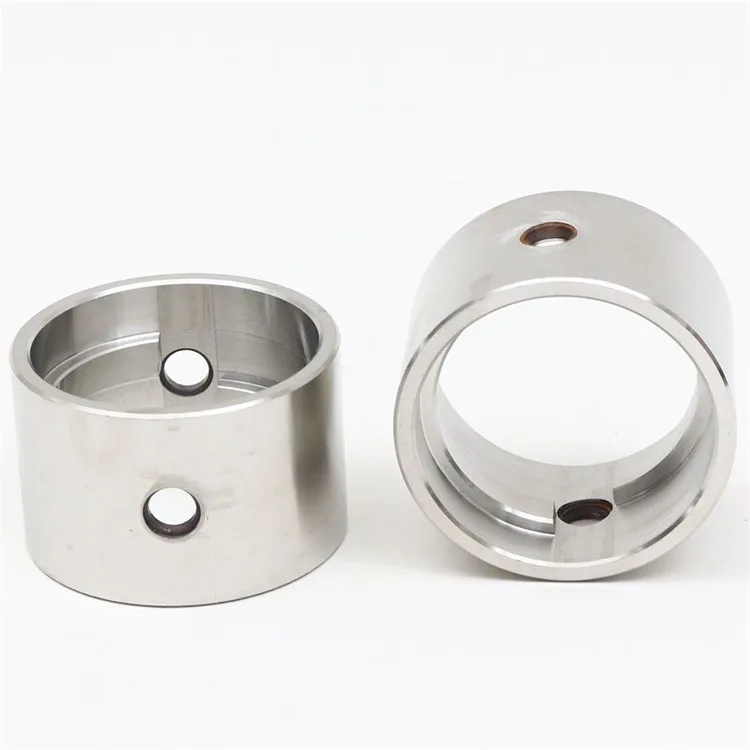

CNC Machined Stainless Steel Valve Component
A component for a valve assembly, with the specific internal or external interface defined by the part drawing. This valve component is specified in Stainless Steel. The manufacturing specification includes CNC machining.
Technical Overview
- Part: Valve Component
- Material: Stainless Steel
- Processing: CNC Machined
Valve Component Design and Assembly
- Component scope: identify the valve type and the exact part required within the assembly.
- Connection geometry: provide the dimensions of the mating parts and the appropriate connection standard.
- Service-related details: state the intended fluid and operating conditions where they affect the specified material or design.
Material and Manufacturing Requirements
The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.
CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.
Quotation Information
Identify the valve type and the component's position in the assembly. Specify connection, sealing and fit requirements relevant to that position. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
