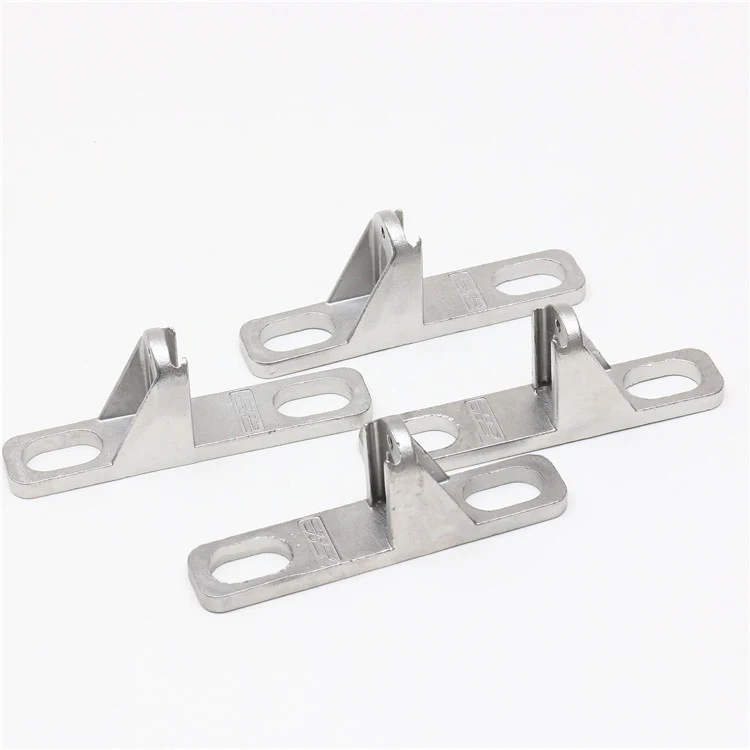

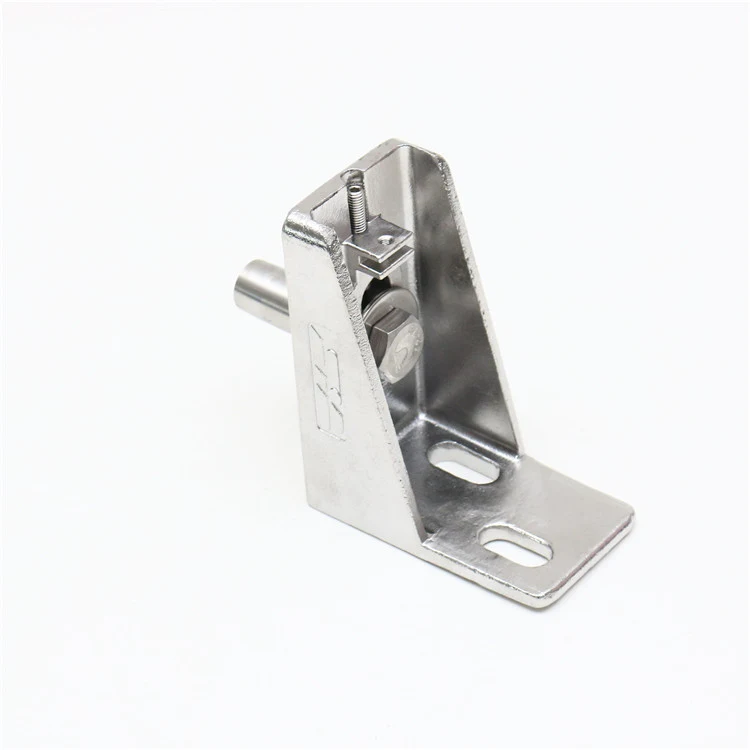

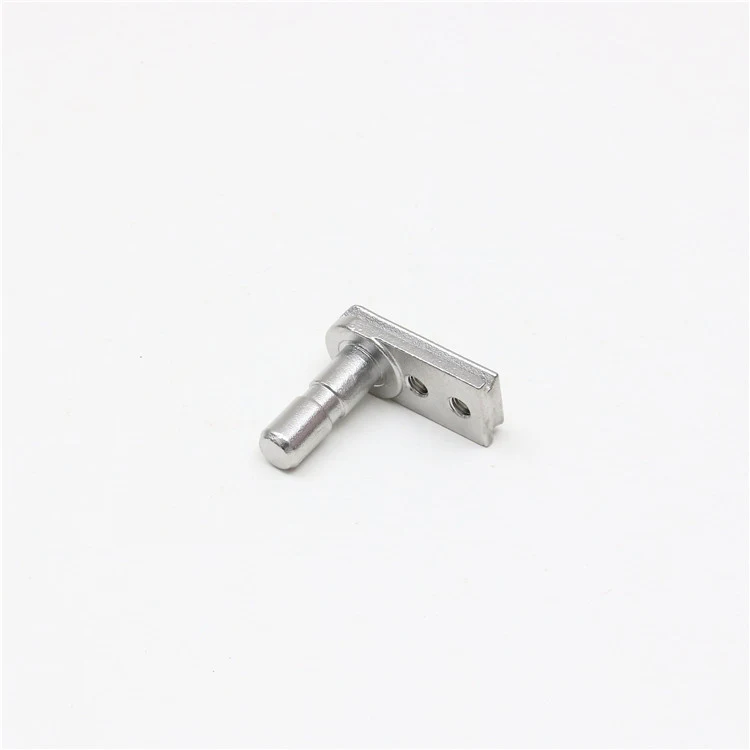

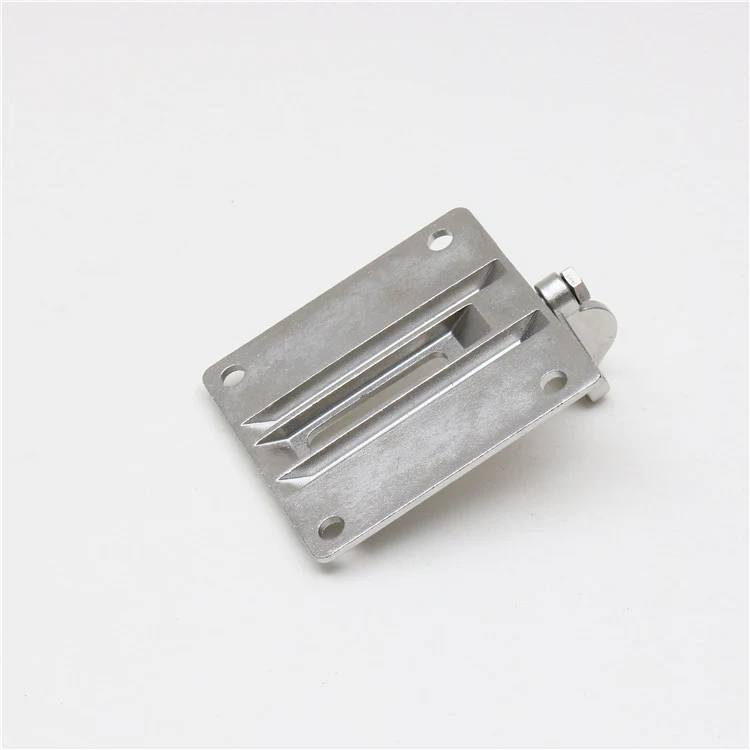

Stainless Steel Door Lock Component

A part for a door lock mechanism, with its engagement geometry defined by the lock design. This door lock component is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Door Lock Component
• Material: Stainless Steel
• Processing: Precision Machined

Door Lock Component Design and Assembly

• Mechanism interface: identify the mating lock assembly and the role of the ordered component.
• Engagement geometry: define the contact profile and the clearance around moving parts.
• Mounting references: show pivot, guide or fastening positions relative to the lock mechanism.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify the lock model or mating mechanism, pivot or mounting locations and the required latch clearances. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
