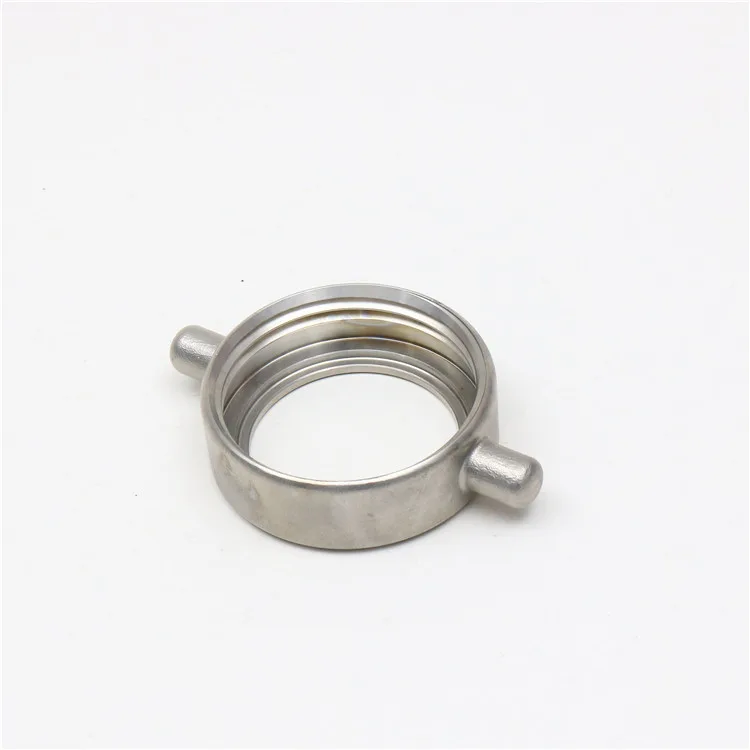

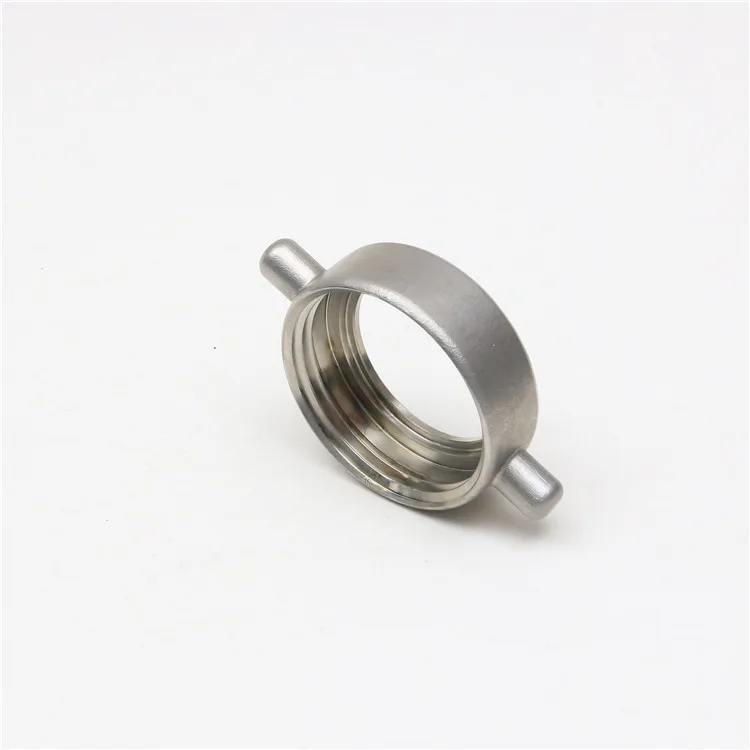

Stainless Steel Valve Sleeve

A sleeve item for a valve assembly, with fit determined by the surrounding bore and internal moving part. This valve sleeve is specified in Stainless Steel.

Technical Overview

• Part: Valve Sleeve
• Material: Stainless Steel

Valve Sleeve Design and Assembly

• Sleeve dimensions: specify the bore, outside diameter and overall length.
• Locating features: show shoulders, grooves and openings that are part of the actual design.
• Mating fit: define how the sleeve locates in the valve and interacts with the internal component.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Specify inner and outer diameters, sleeve length, surface requirements and any ports or locating features. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
