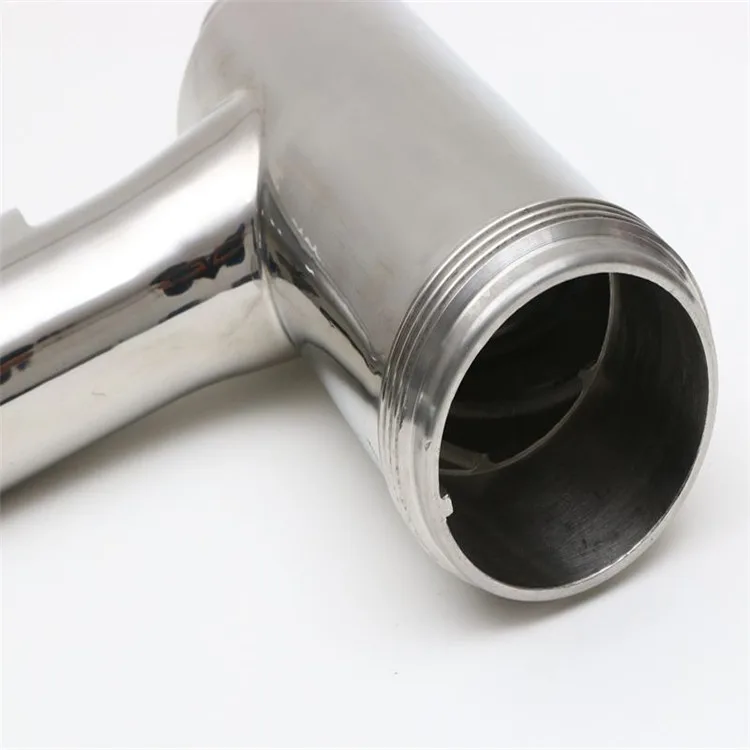

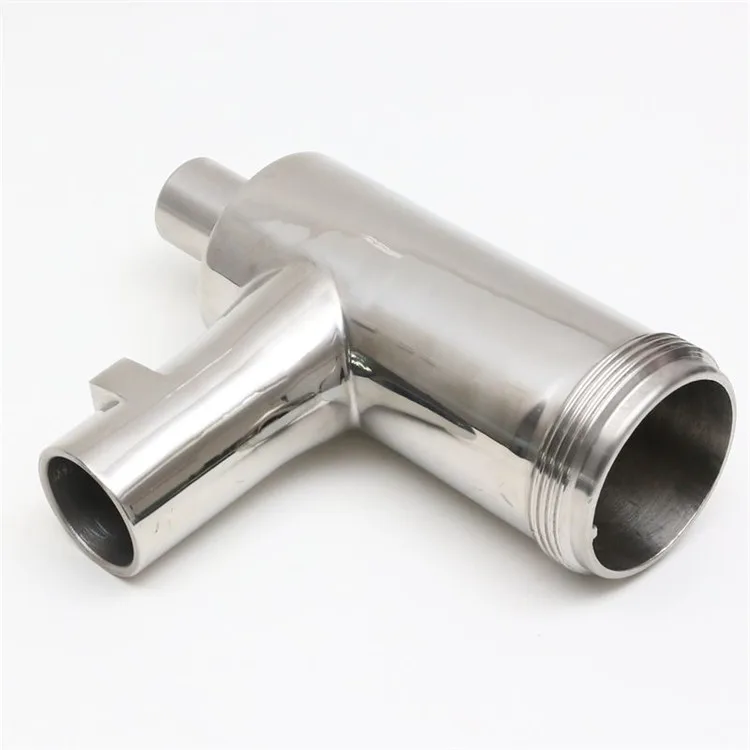

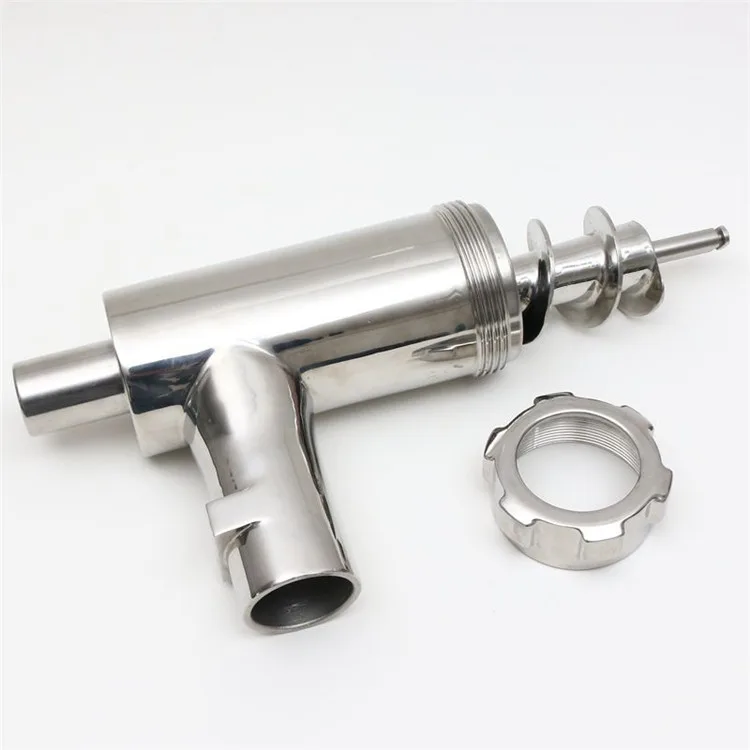

Stainless Steel Housing and Chamber

A housing item with internal and external interfaces defined by the assembly drawing. This housing and chamber is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Housing and Chamber
• Material: Stainless Steel
• Processing: Precision Machined

Housing and Chamber Design and Assembly

• Internal space: define the cavities and the interface with the enclosed assembly.
• External mounting: show installation datums and attachment points.
• Openings and joints: specify access, connection and cover interfaces relevant to the ordered housing.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify cavity geometry, mounting datums, access openings and fit with the enclosed components. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
