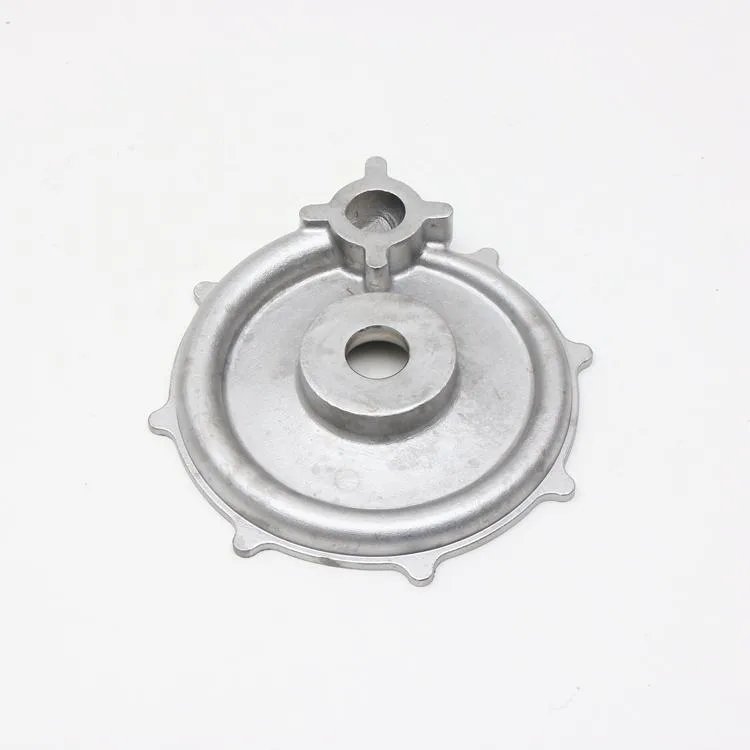

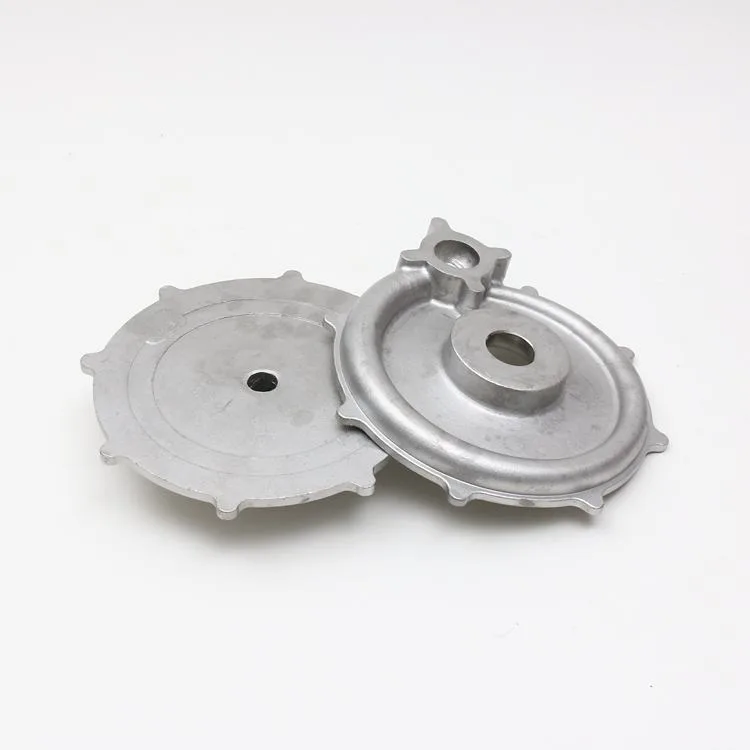

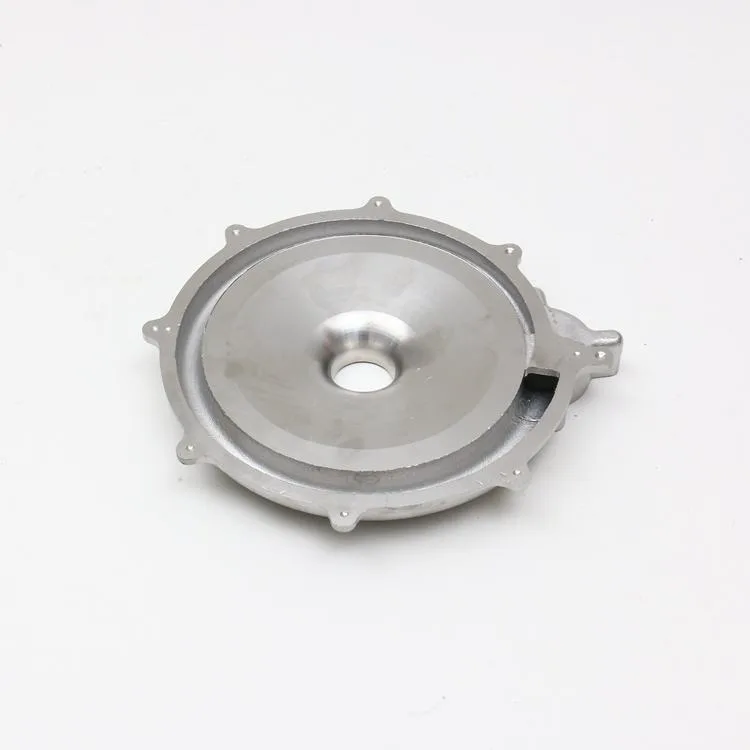

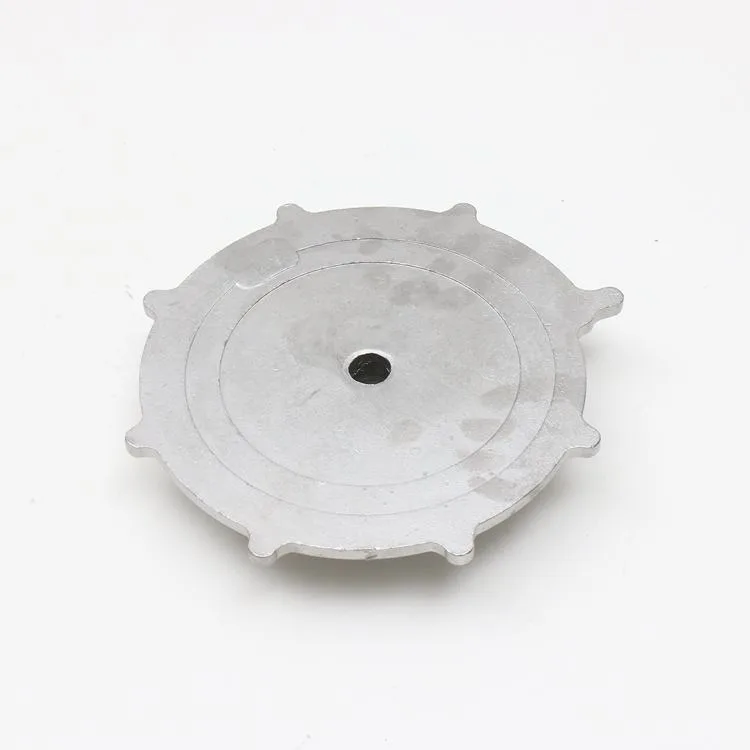

Cast Stainless Steel Valve Cover

The cover interfaces with the valve body and its fastening arrangement. This valve cover is specified in Stainless Steel. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Valve Cover
• Material: Stainless Steel
• Processing: Precision Machined, Cast

Valve Cover Design and Assembly

• Cover profile: define the outside contour and the joint with the adjoining valve body.
• Fastener layout: provide hole positions, thread details and access around the mounting points.
• Contact and clearance: identify any sealing face and the space required around internal valve components.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

The drawing should define the cover profile, bolt pattern, sealing face and clearance for internal valve parts. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
