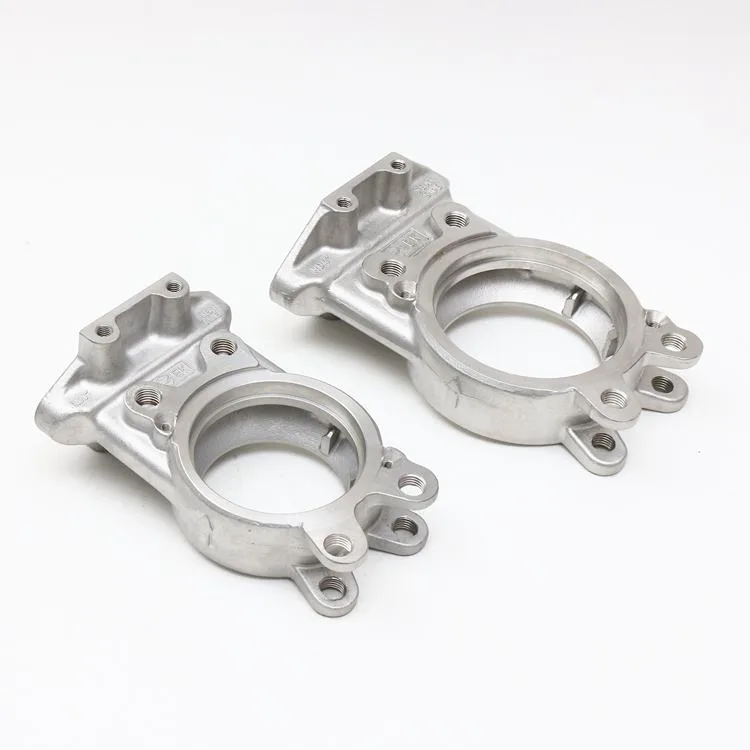

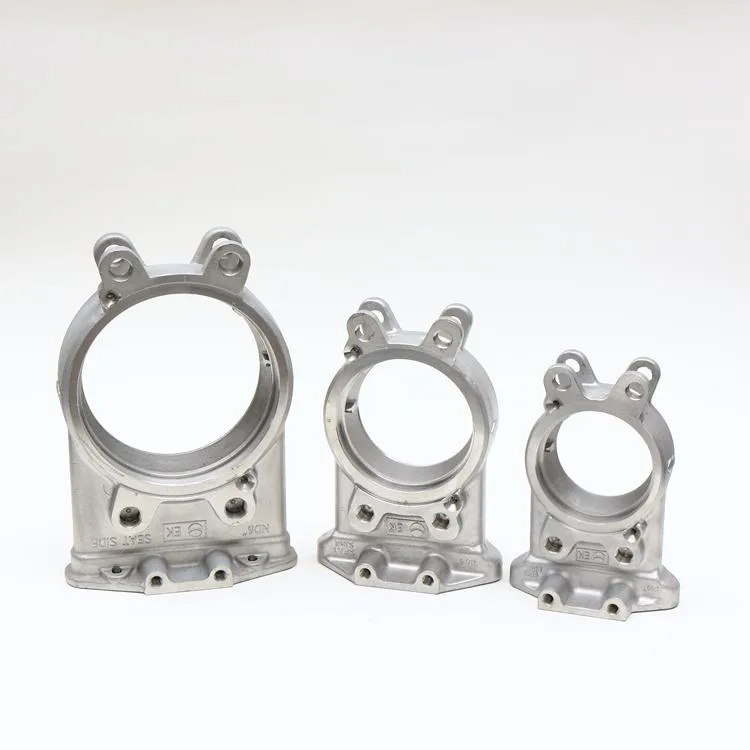

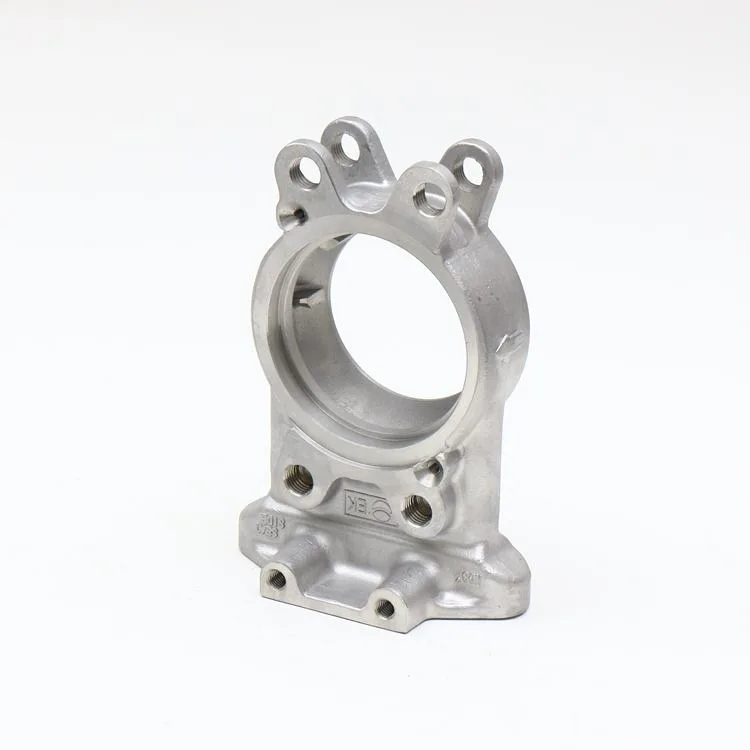

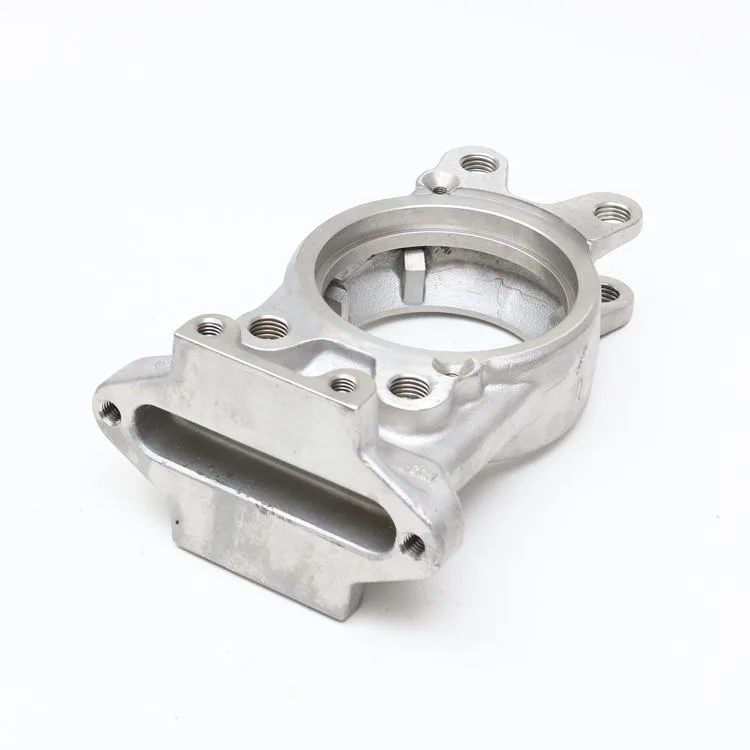

CNC Machined Investment-Cast Valve Component

A component for a valve assembly, with the specific internal or external interface defined by the part drawing. This valve component is produced to the specified part drawing. The manufacturing specification includes investment casting and CNC machining.

Technical Overview

• Part: Valve Component
• Processing: CNC Machined, Investment-Cast

Valve Component Design and Assembly

• Component scope: identify the valve type and the exact part required within the assembly.
• Connection geometry: provide the dimensions of the mating parts and the appropriate connection standard.
• Service-related details: state the intended fluid and operating conditions where they affect the specified material or design.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.

Quotation Information

Identify the valve type and the component's position in the assembly. Specify connection, sealing and fit requirements relevant to that position. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
