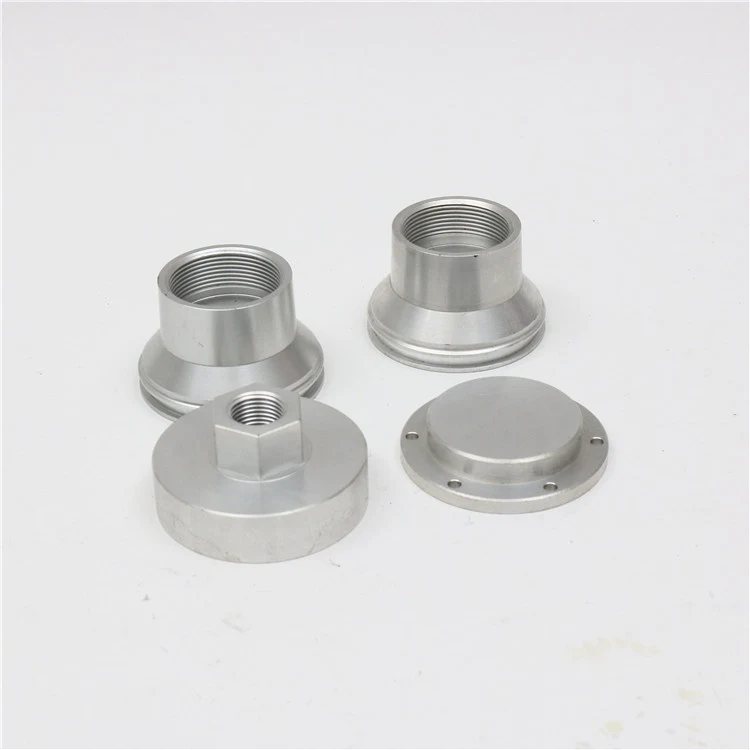

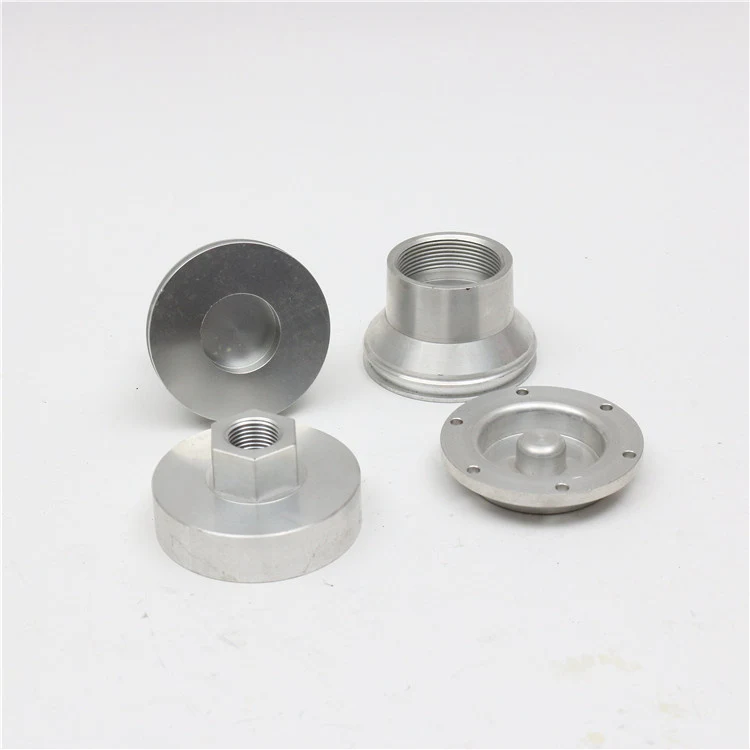

Aluminum Protective Cover

A cover item for the mating housing or assembly specified for this component. This protective cover is specified in Aluminum. The manufacturing specification includes precision machining.

Technical Overview

• Part: Protective Cover
• Material: Aluminum
• Processing: Precision Machined

Protective Cover Design and Assembly

• Outer profile: define the cover contour and its relationship to the adjoining housing.
• Attachment pattern: show locating features and fastening positions.
• Enclosed space: identify clearances, access openings and any contact-face requirements included in the design.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Define the outer profile, fastening locations and clearance to the enclosed components. Include any sealing-face requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
