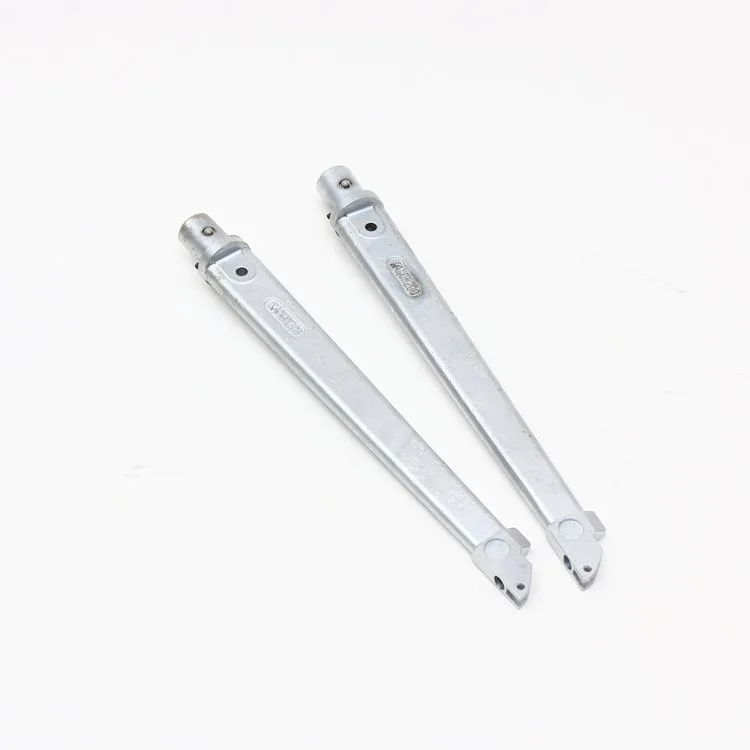

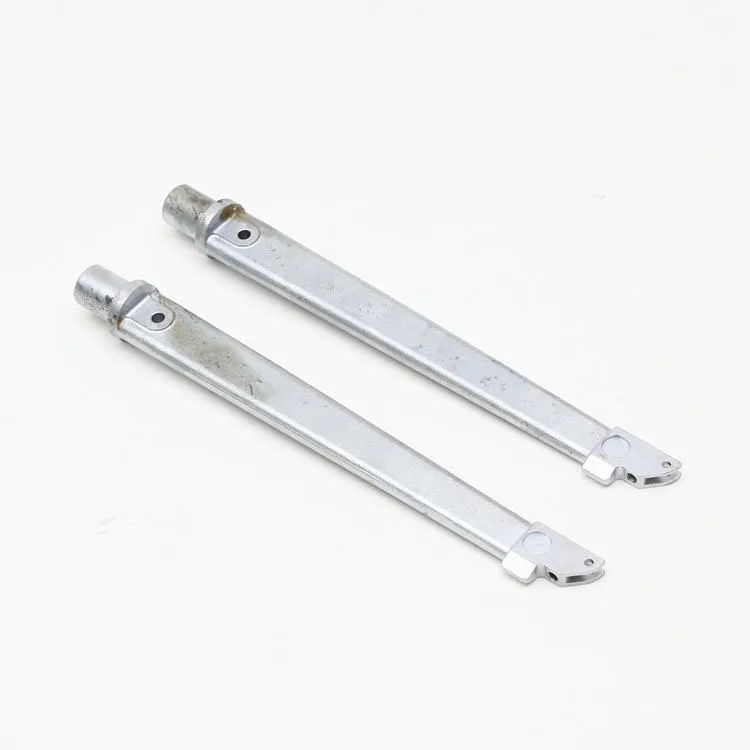

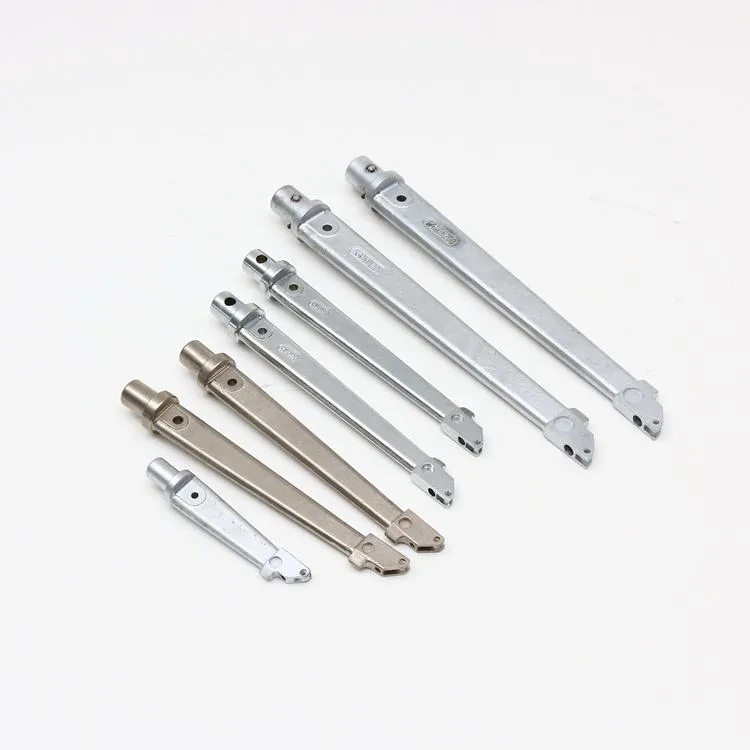

Forged 42CrMo Alloy Steel Wrench Component

A wrench item with the working profile identified by the component drawing. This wrench component is specified in 42CrMo Alloy Steel. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Wrench Component
• Material: 42CrMo Alloy Steel
• Processing: Precision Machined, Forged

Wrench Component Design and Assembly

• Working end: specify jaw, socket or engagement geometry for the mating fastener.
• Body dimensions: define the profile and the connection to the handle or other tool component.
• Order requirements: state the material and any treatment or finish needed for the intended tool application.

Material and Manufacturing Requirements

The specified material is 42CrMo Alloy Steel. Include the applicable grade designation and delivery condition in the drawing or purchase specification, together with any material documentation required for the order.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify jaw or socket geometry, engagement depth and handle connection. Confirm material and treatment requirements for the intended use. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
