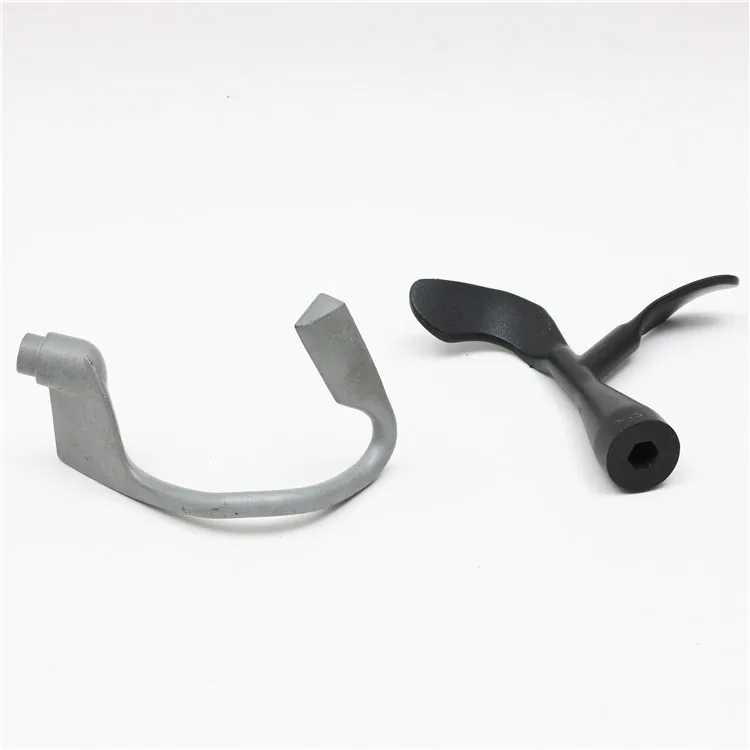

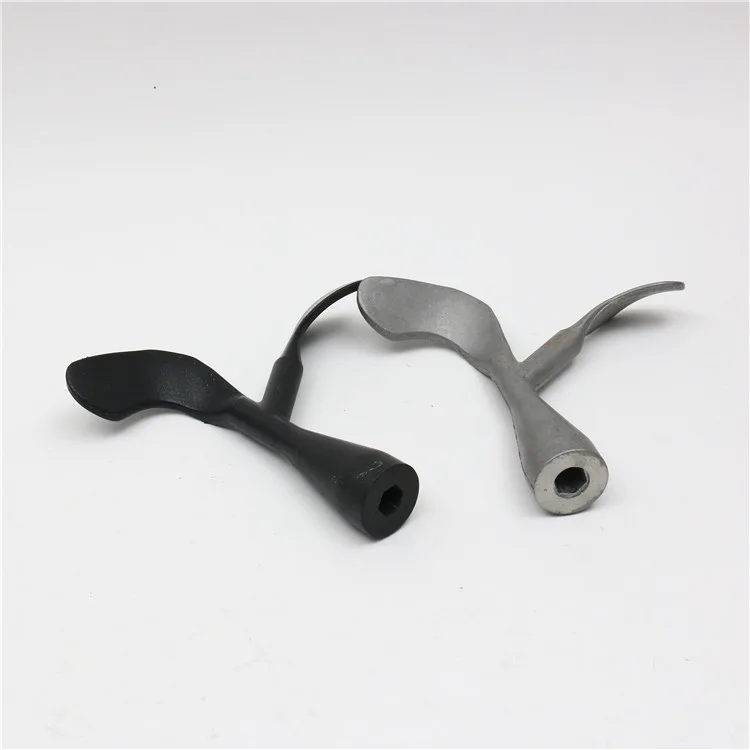

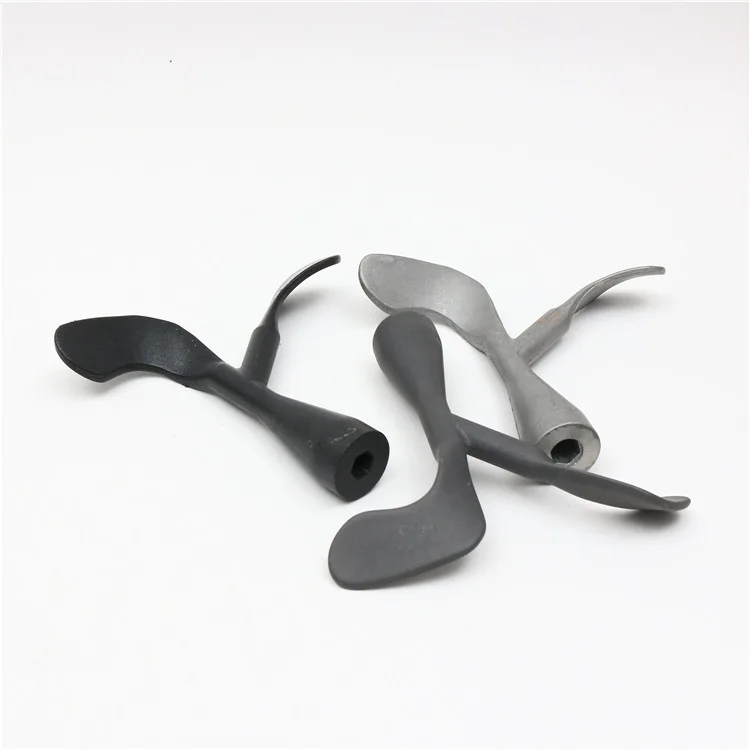

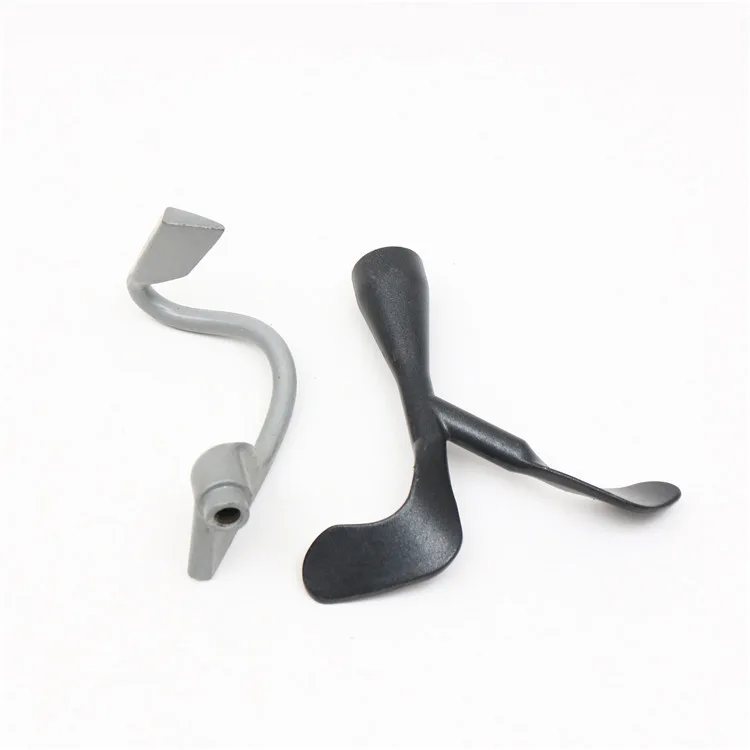

Forged Aluminum Mixing Shaft

A shaft item for a mixing assembly, with mixer attachment details defined by the equipment design. This mixing shaft is specified in Aluminum. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Mixing Shaft
• Material: Aluminum
• Processing: Precision Machined, Forged

Mixing Shaft Design and Assembly

• Drive interface: specify the connection between the shaft and the mixer drive.
• Working section: define the shaft length and the attachment of mixing elements included in the assembly.
• Equipment fit: provide bearing positions, operating clearances and product-contact surface requirements where applicable.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify shaft length, drive connection, mixing-element attachment and operating clearances. Identify any product-contact surface requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
