Carbon Steel Pulley

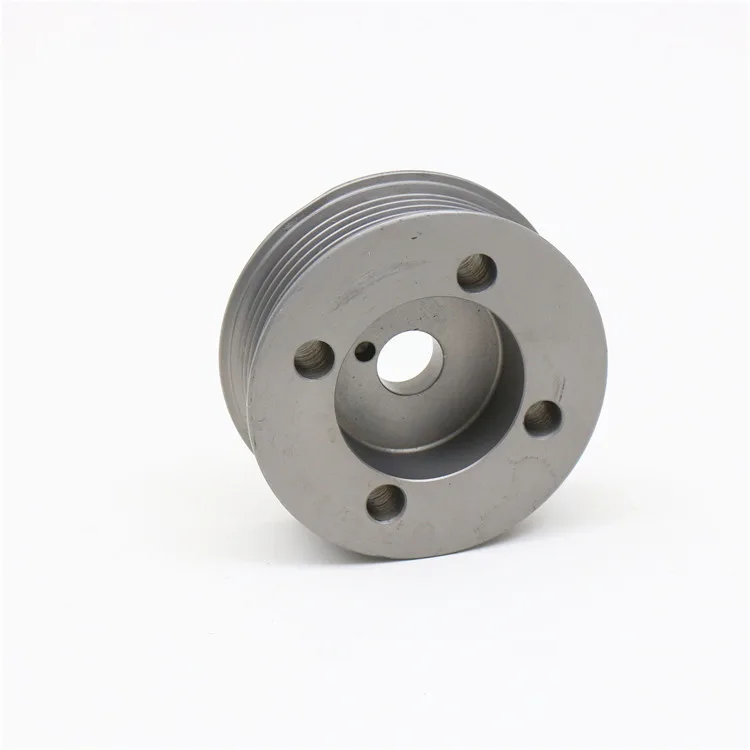

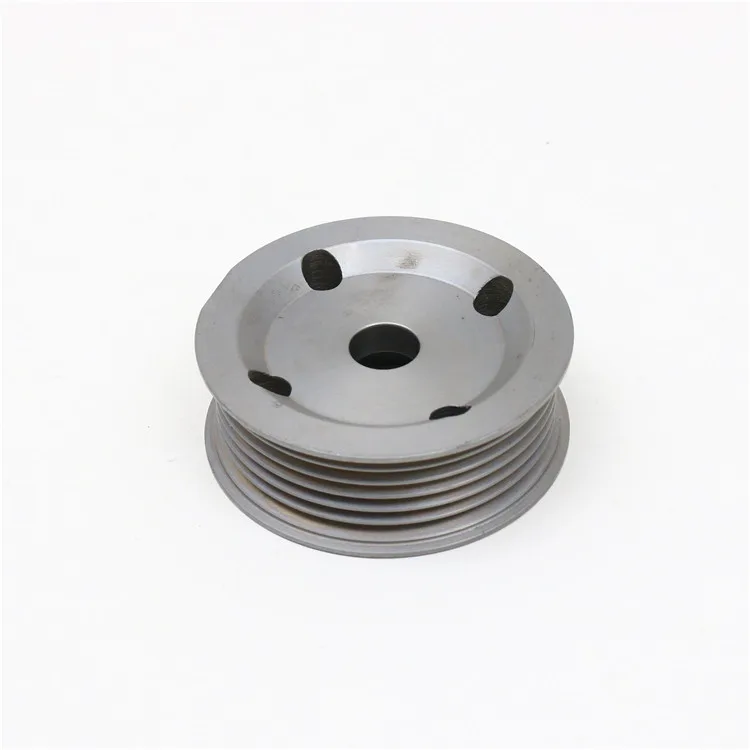

A pulley item whose profile must match the selected belt and shaft connection. This pulley is specified in Carbon Steel. The manufacturing specification includes precision machining.
Technical Overview
- Part: Pulley
- Material: Carbon Steel
- Processing: Precision Machined
Pulley Design and Assembly
- Belt interface: define the groove profile and the belt specification used in the assembly.
- Working dimensions: state pulley diameter, width and the number of grooves.
- Hub connection: show the shaft fit and any keyway, retaining feature or fastening arrangement.
Material and Manufacturing Requirements
The specified material is carbon steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.
Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.
Quotation Information
Provide groove form, pitch diameter, groove count, bore dimensions and hub attachment details. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
