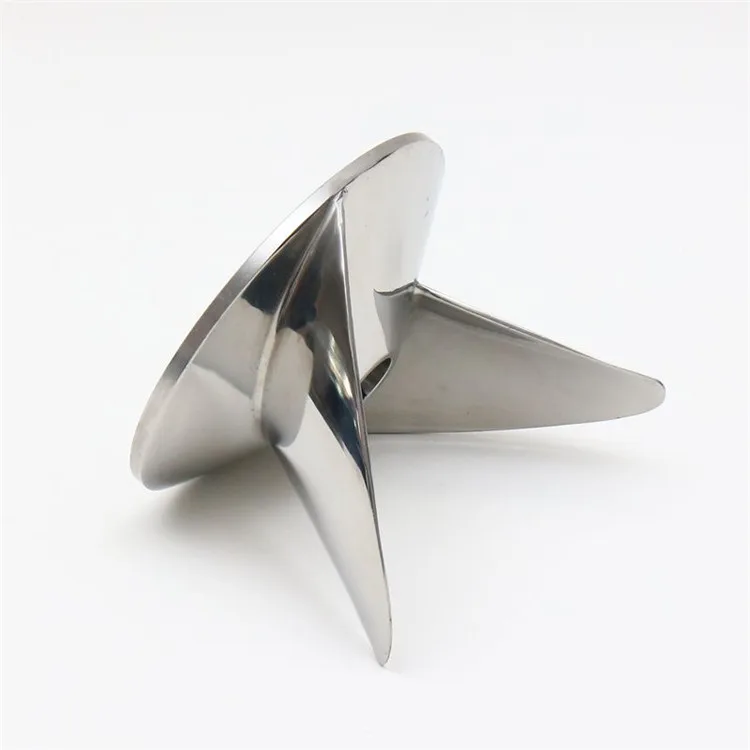

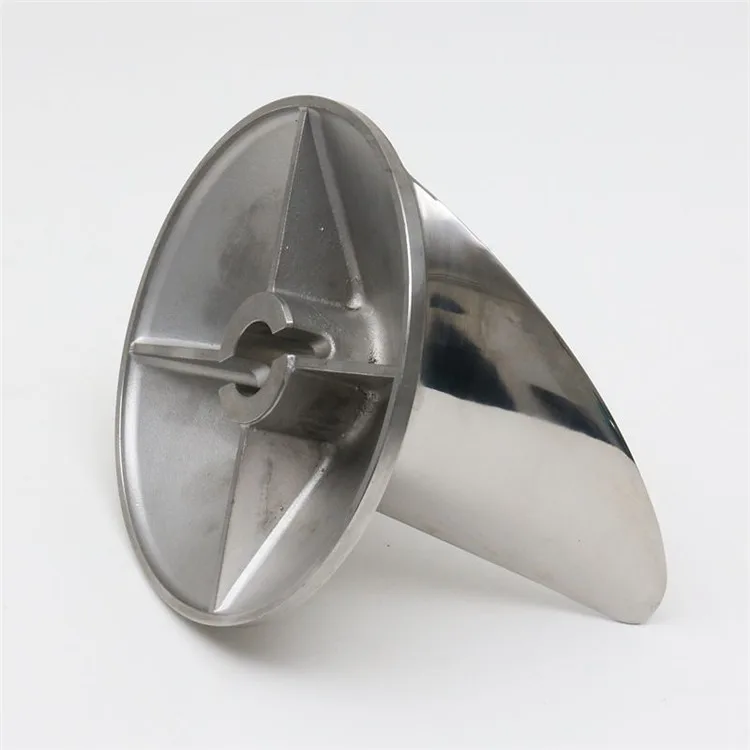

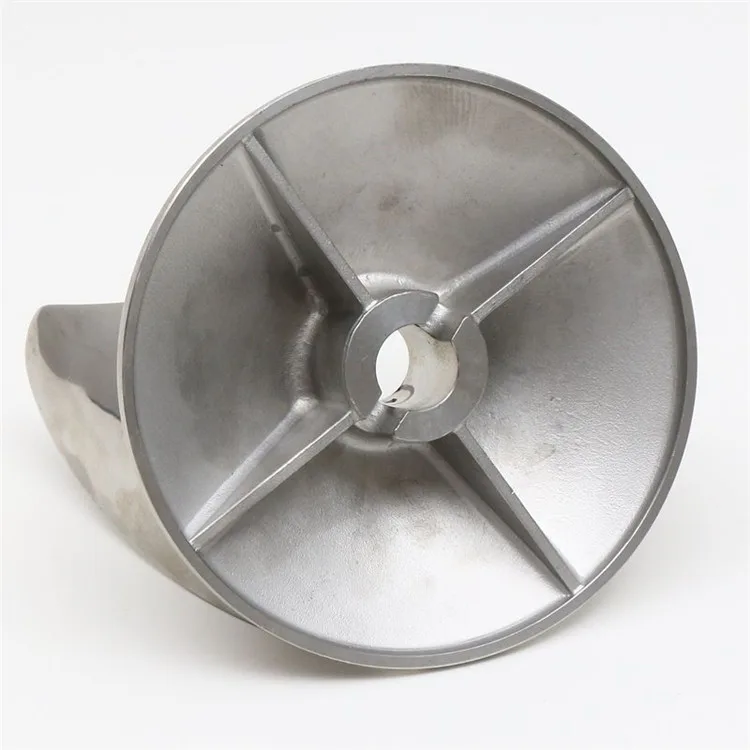

CNC Machined Stainless Steel Mixer Component

A component for the mixing equipment specified for this component. This mixer component is specified in Stainless Steel. The manufacturing specification includes CNC machining.

Technical Overview

• Part: Mixer Component
• Material: Stainless Steel
• Processing: CNC Machined

Mixer Component Design and Assembly

• Mixer interface: identify the equipment model and the component's mounting or drive connection.
• Working clearance: show the relationship to the mixing elements, bowl or surrounding structure.
• Product-contact details: specify the surface condition required in areas exposed to the mixed material.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.

Quotation Information

Provide the mixer model, component drawing and mating interfaces. Confirm motion clearances and contact-surface requirements where applicable. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
