Forged Alloy Steel Splined Sleeve and Flange

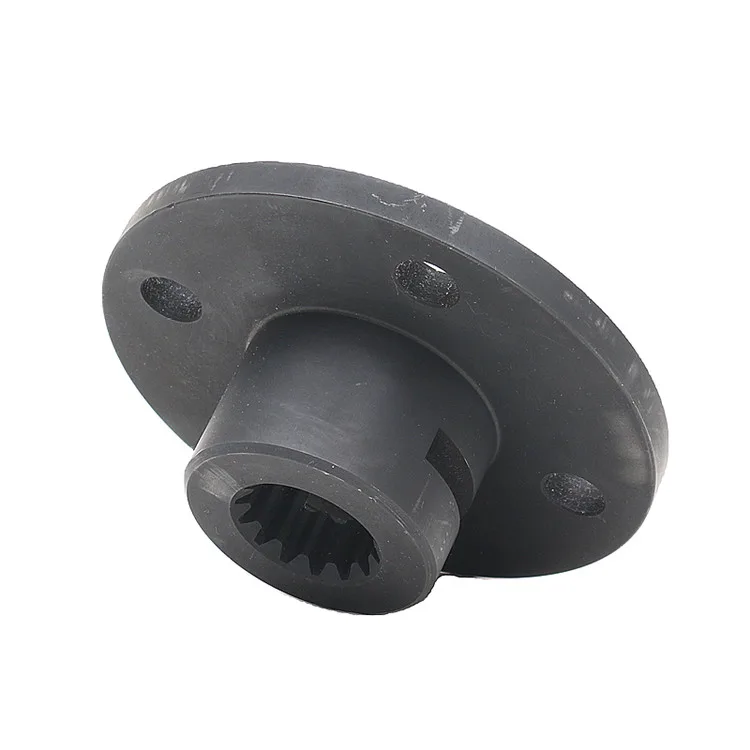

A splined sleeve and flange item combining a spline interface with a flanged connection. This splined sleeve and flange is specified in Alloy Steel. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Splined Sleeve and Flange
• Material: Alloy Steel
• Processing: Precision Machined, Forged

Splined Sleeve and Flange Design and Assembly

• Spline definition: state the applicable tooth form, size, tooth count and fit designation.
• Engagement length: show the working spline length and its relationship to shoulders or adjoining features.
• Alignment: identify the reference axis and the mating hub or shaft used for dimensional review.

Material and Manufacturing Requirements

The specified material is alloy steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Confirm whether the order covers an integrated part or separate items. Specify spline form, tooth count, fit and flange mounting geometry. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
