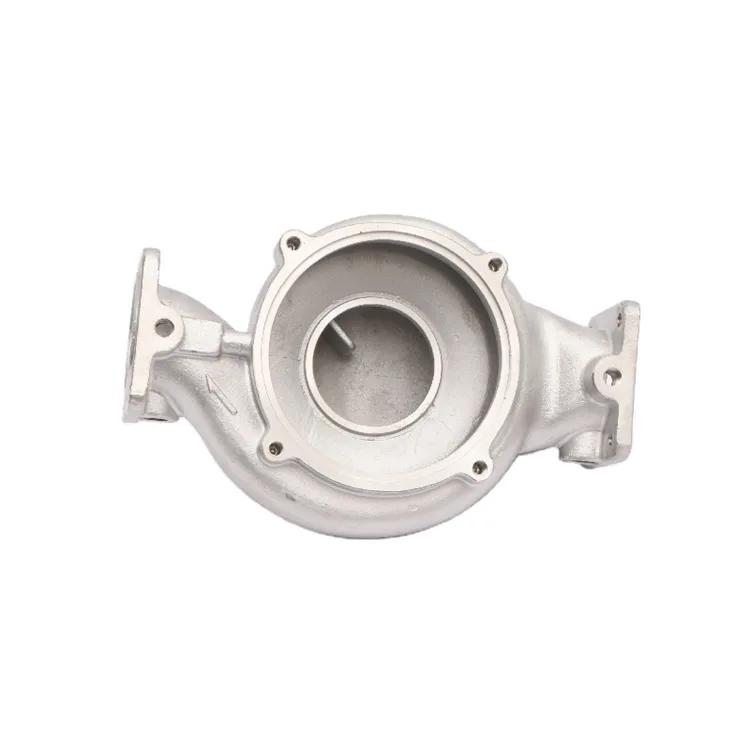

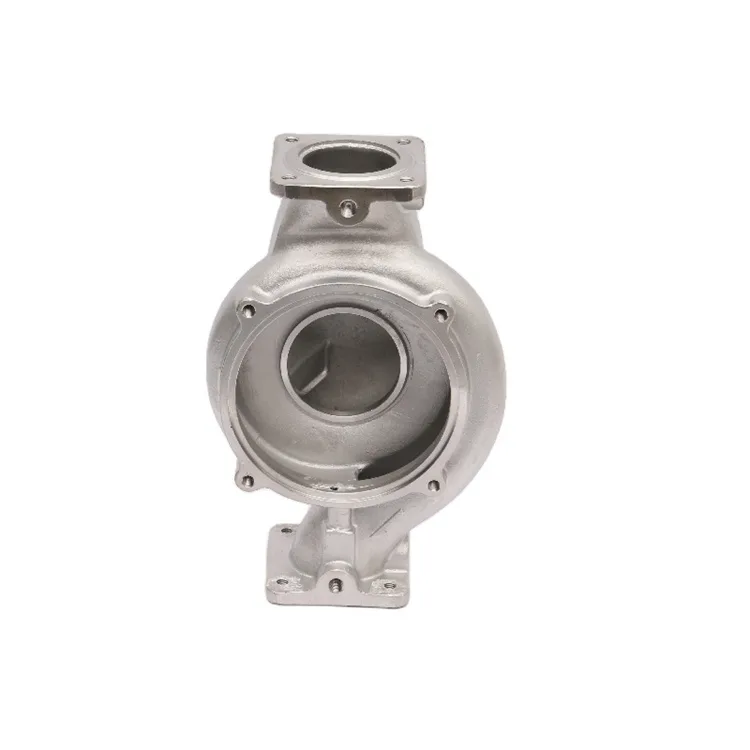

Precision Machined Investment-Cast Stainless Steel Turbine Housing

A housing item for the turbine assembly used with this component. This turbine housing is specified in Stainless Steel. The manufacturing specification includes investment casting and precision machining.

Technical Overview

• Part: Turbine Housing
• Material: Stainless Steel
• Processing: Precision Machined, Investment-Cast

Turbine Housing Design and Assembly

• Internal space: define the cavities and the interface with the enclosed assembly.
• External mounting: show installation datums and attachment points.
• Openings and joints: specify access, connection and cover interfaces relevant to the ordered housing.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide internal contours, mounting datums and rotor clearances. Confirm the equipment type and service environment before finalizing requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
