Aluminum Lever

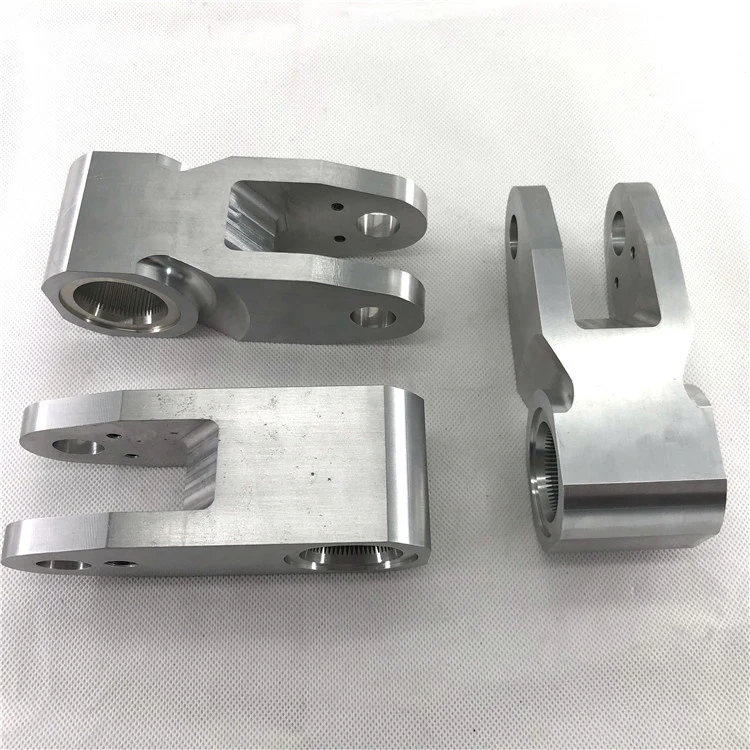

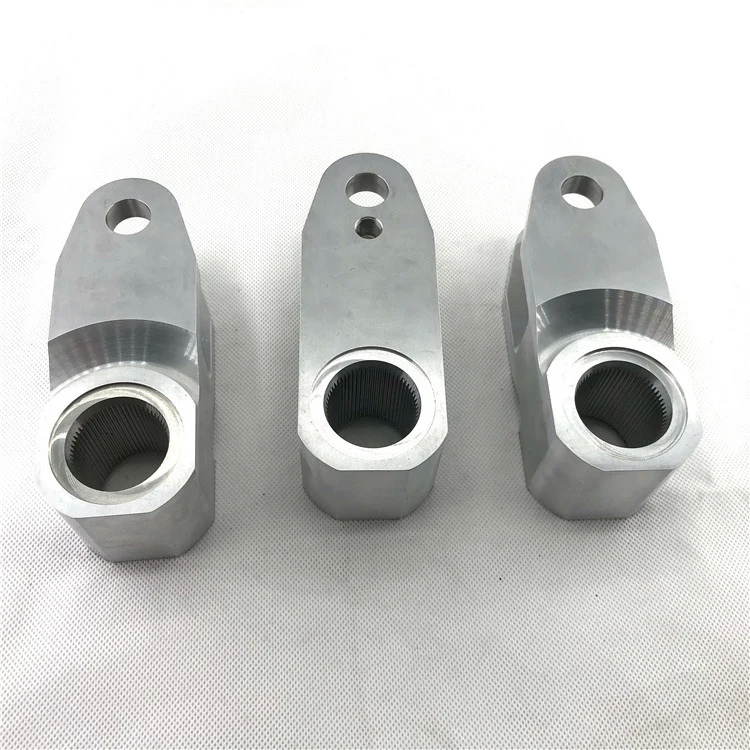

A lever item with pivot and contact interfaces defined by the mechanism drawing. This lever is specified in Aluminum. The manufacturing specification includes machining.

Technical Overview

• Part: Lever
• Material: Aluminum
• Processing: Machined

Lever Design and Assembly

• Pivot geometry: identify the axis, bore and locating features of the lever.
• Connection points: provide arm lengths and the attachment details at each working end.
• Travel clearance: define the installed orientation and clearance to neighboring parts during movement.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Specify arm lengths, pivot bore, end connections and travel limits for the intended linkage. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
