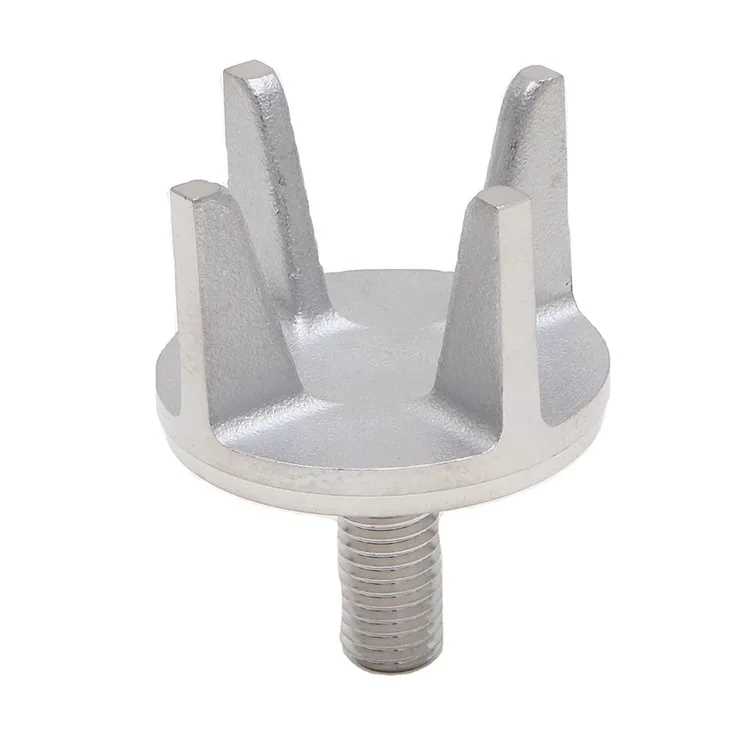

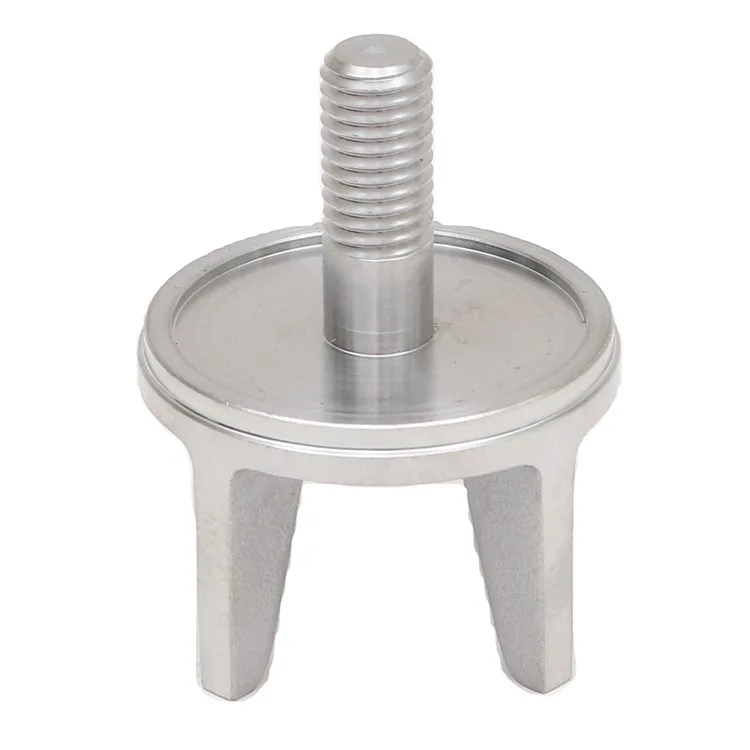

Stainless Steel Soy Milk Maker Mixing Component

This soy milk maker mixing component is intended to match the interfaces defined by the equipment assembly drawing. This soy milk maker mixing component is specified in Stainless Steel.

Technical Overview

• Part: Soy Milk Maker Mixing Component
• Material: Stainless Steel

Soy Milk Maker Mixing Component Design and Assembly

• Machine fit: provide the equipment model and the position of the component within the maker.
• Functional interface: show the connection to the adjacent chamber, shaft, blade or mounting structure as applicable.
• Contact requirements: identify the surfaces exposed to the processed product and the finish specified for those surfaces.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Provide a dimensioned part drawing showing the assembly interfaces, required material and the surfaces that determine fit. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
