Carbon Steel Control Block

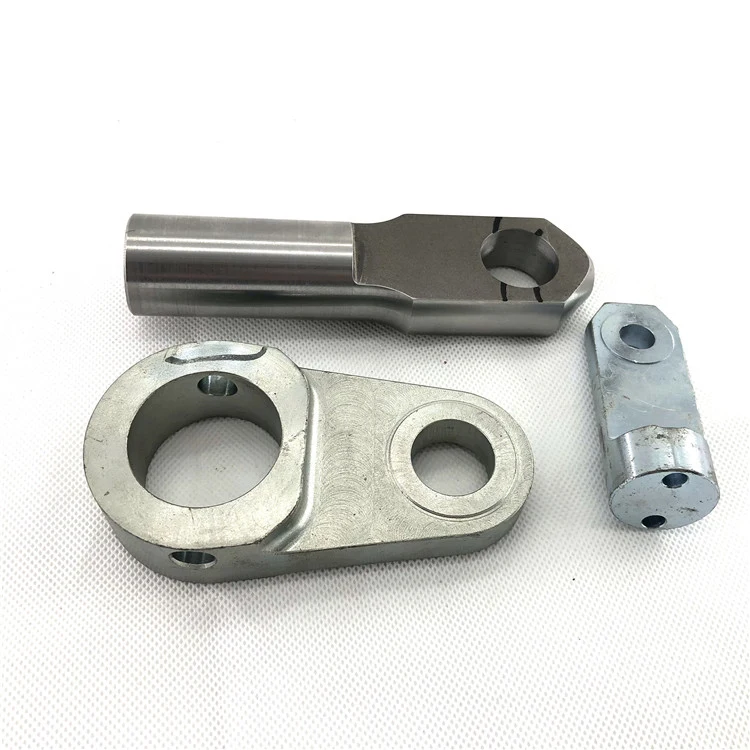

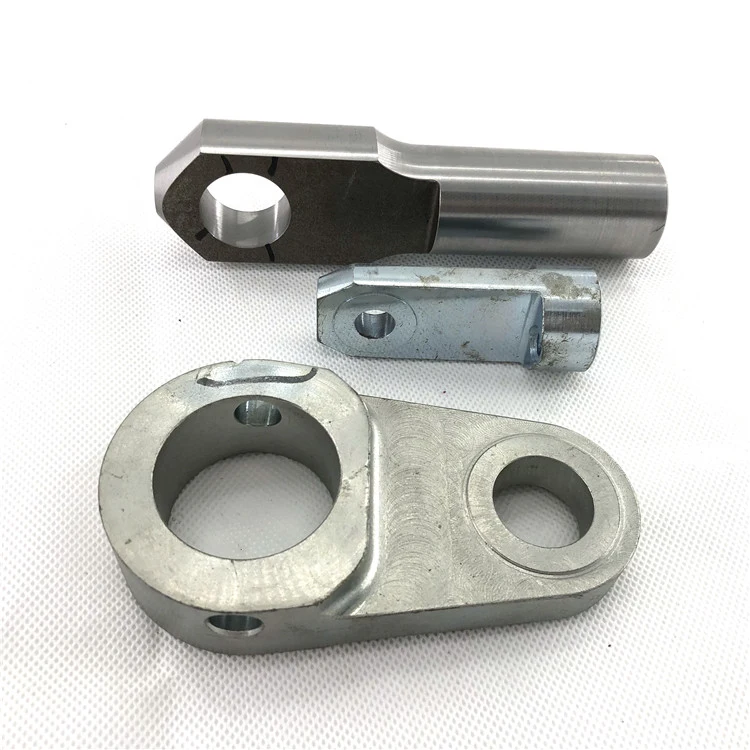

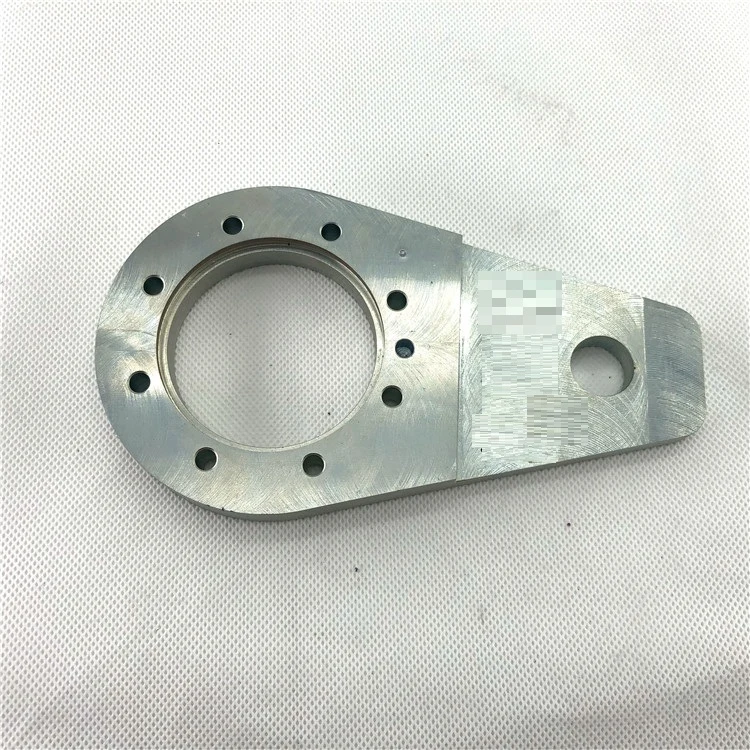

A block item for the control mechanism identified in the part drawing. This control block is specified in Carbon Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Control Block
• Material: Carbon Steel
• Processing: Precision Machined

Control Block Design and Assembly

• Block profile: define the external geometry and the surfaces used to locate the part.
• Connection features: show mounting holes, slots or passages required by the mechanism.
• Assembly references: specify the dimensions that relate the block to its neighboring components.

Material and Manufacturing Requirements

The specified material is carbon steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Show the block profile, locating faces, mounting holes and any passages or slots required by the mechanism. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
