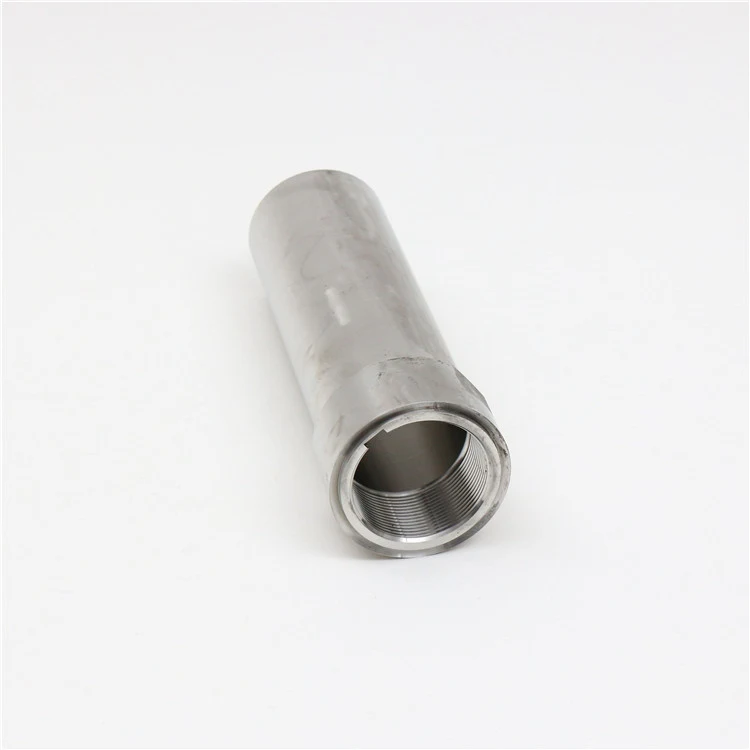

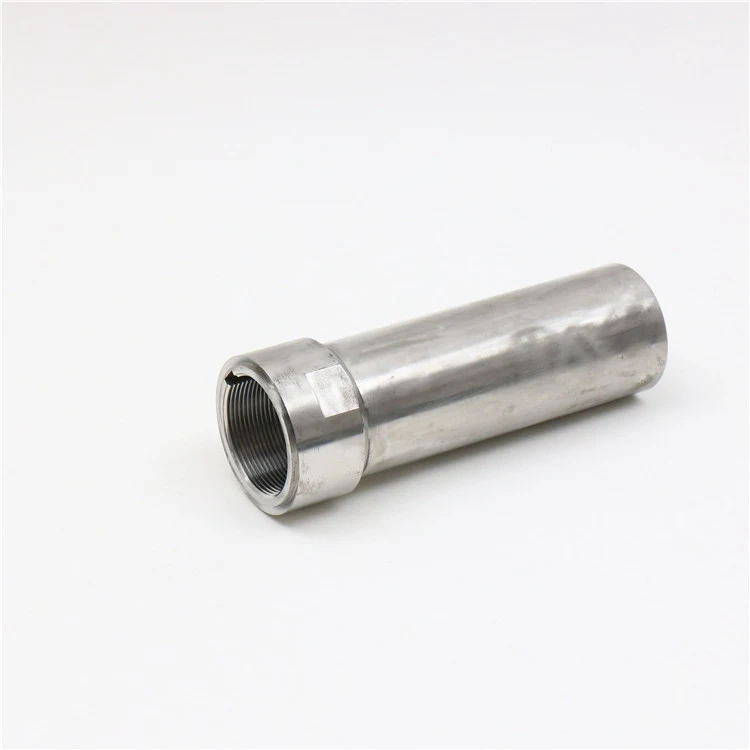

Shielding Tube

A tube item for the shielding arrangement used with this component. This shielding tube is defined by the equipment drawing and its mating interfaces.

Technical Overview

• Part: Shielding Tube

Shielding Tube Design and Assembly

• Tube geometry: define diameter, wall section and overall length.
• End arrangement: identify connections, fixing details and interfaces with adjacent components.
• Installation space: show the surrounding equipment envelope and state the intended shielding requirements.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

The manufacturing route should be agreed against the finished geometry and order quantity. Identify the surfaces and mating features that govern acceptance rather than specifying processes that are not required by the design.

Quotation Information

Specify tube dimensions, end connections, installation space and material requirements for the intended equipment. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
