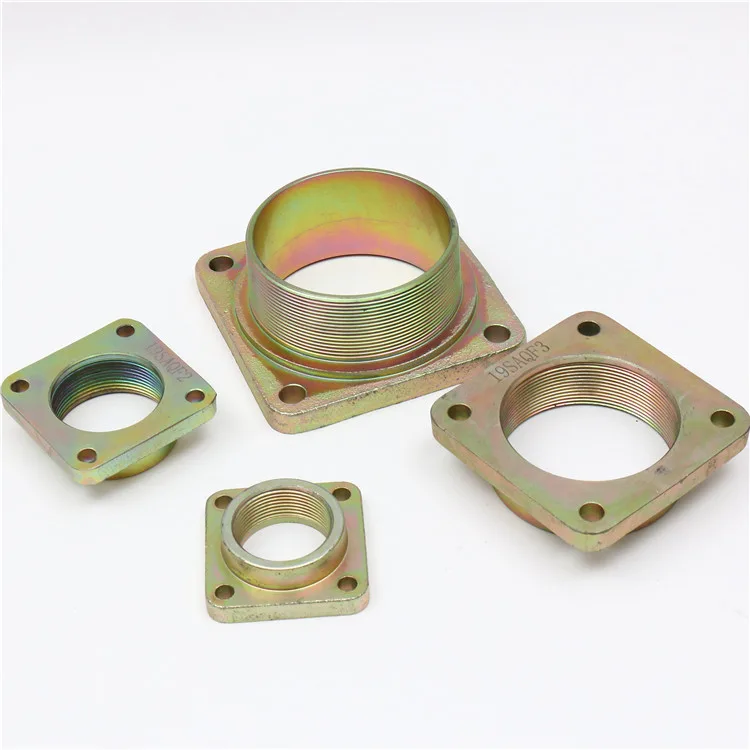

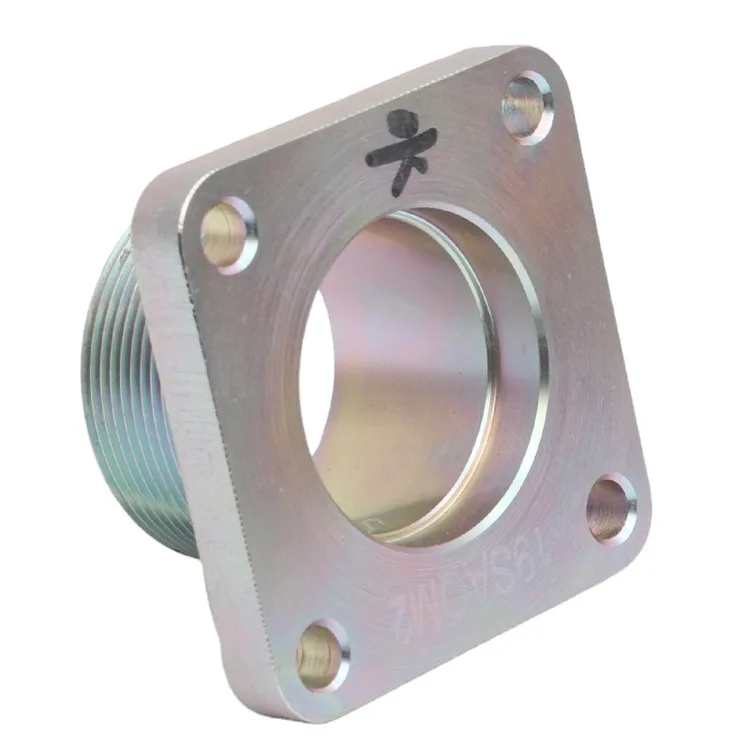

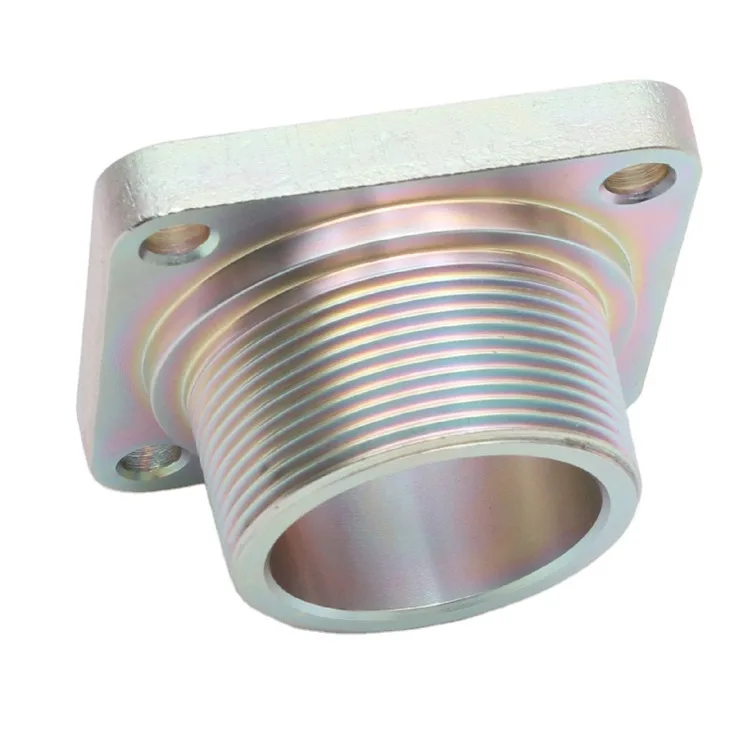

Fe360 Steel Oil Pipeline Flange

A flange item for the adjoining component or pipe connection. This oil pipeline flange is specified in Fe360 Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Oil Pipeline Flange
• Material: Fe360 Steel
• Processing: Precision Machined

Oil Pipeline Flange Design and Assembly

• Mounting pattern: define hole quantity, hole size and bolt-circle or coordinate positions.
• Mating face: identify the contact surface and any seal-related details present in the design.
• Center opening: specify bore geometry, overall thickness and the connection to the adjoining part.

Material and Manufacturing Requirements

The specified material is Fe360 Steel. Include the applicable grade designation and delivery condition in the drawing or purchase specification, together with any material documentation required for the order.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

State outside diameter, thickness, bolt-circle geometry and mating-face requirements. Identify the connection standard where one applies. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
