Custom Nonstandard Cast Exhaust Pipe

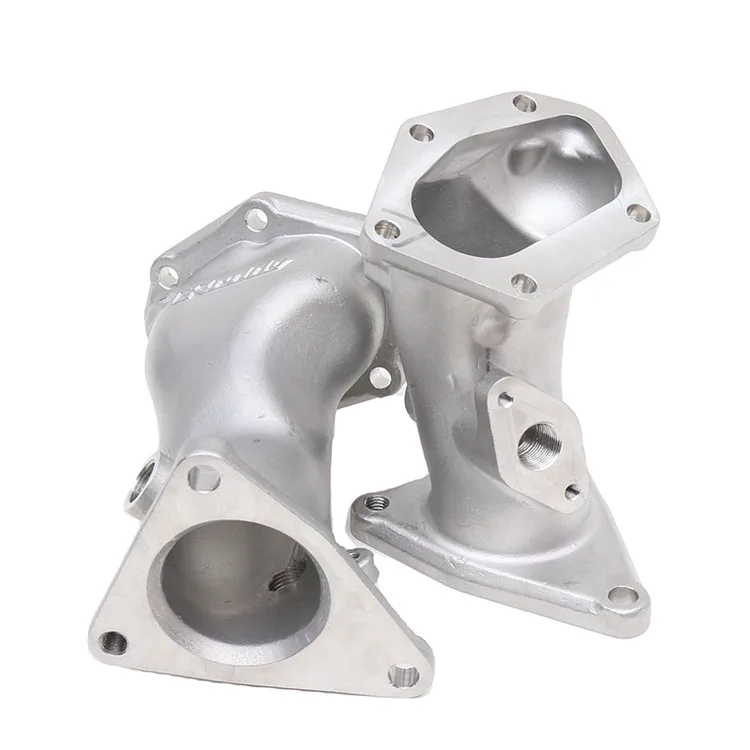

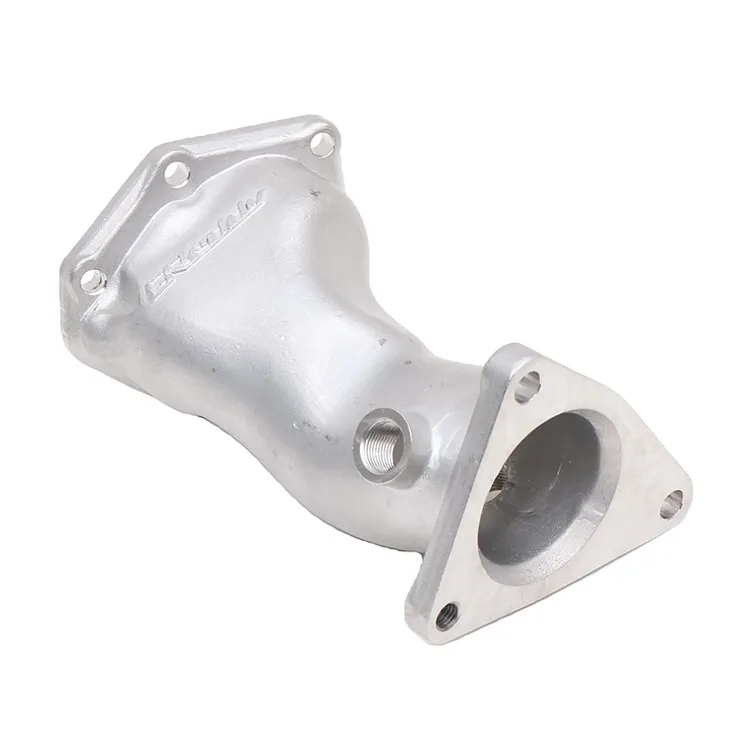

A pipe item for the specified exhaust assembly. This exhaust pipe is produced to the specified part drawing. The manufacturing specification includes casting and machining.

Technical Overview

• Part: Exhaust Pipe
• Processing: Machined, Cast

Exhaust Pipe Design and Assembly

• Equipment application: confirm the vehicle or equipment model and the ordered component's position.
• Connection geometry: define end interfaces, mounting points and the adjoining exhaust parts.
• Installation requirements: provide routing or enclosure dimensions and the material specification for the intended service.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Provide diameter, wall section, routing geometry and end connections. Confirm the vehicle or equipment model and required mounting points. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
