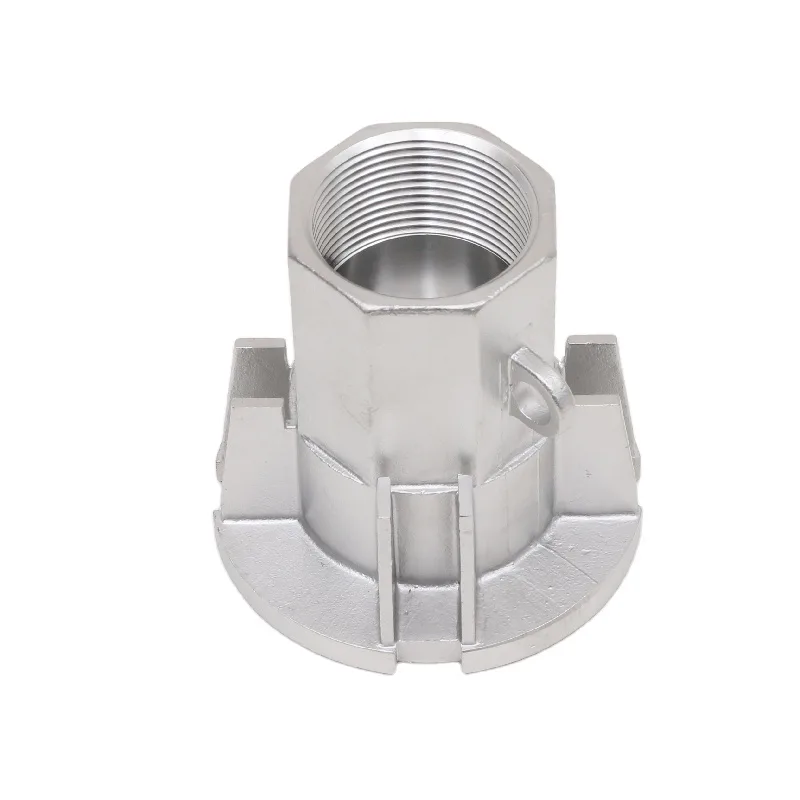

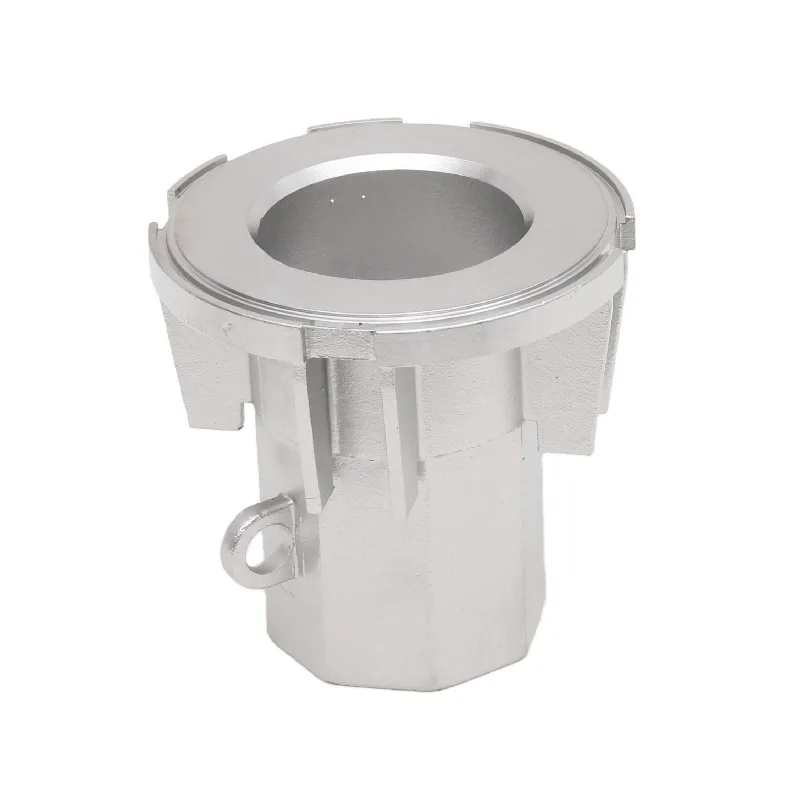

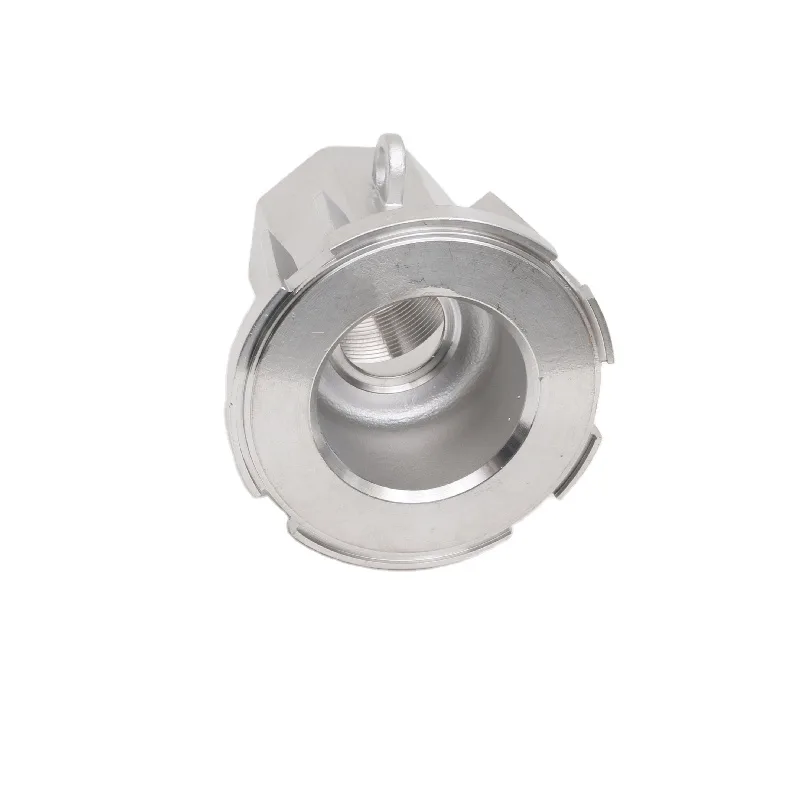

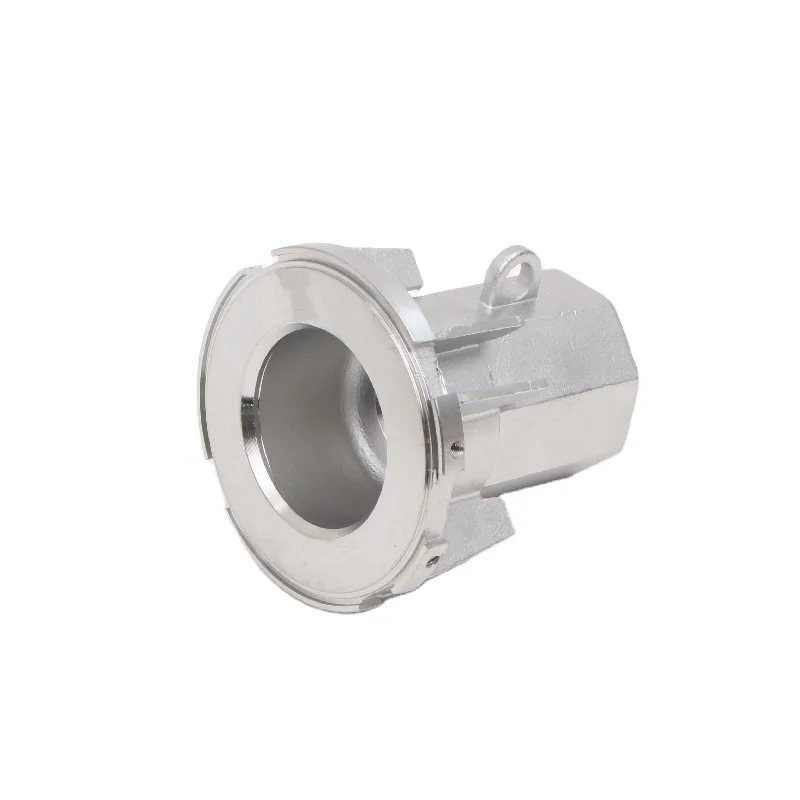

CNC Machined Stainless Steel Automotive Pump Component

A pump component whose exact geometry is specified by the equipment drawing. This automotive pump component is specified in Stainless Steel. The manufacturing specification includes CNC machining.

Technical Overview

• Part: Automotive Pump Component
• Material: Stainless Steel
• Processing: CNC Machined

Automotive Pump Component Design and Assembly

• Vehicle application: identify the relevant assembly and component drawing revision.
• Mating interfaces: specify fastening, mounting or engagement features used in that assembly.
• Procurement scope: distinguish the individual metal component from a complete vehicle subsystem.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

CNC machining is specified for this component. Supply the latest drawing and, where available, the 3D model, with critical fits and reference datums identified rather than relying on the external shape alone.

Quotation Information

Identify the component's position in the pump, the mating parts and required working clearances. Include operating conditions where they affect the material or design. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
