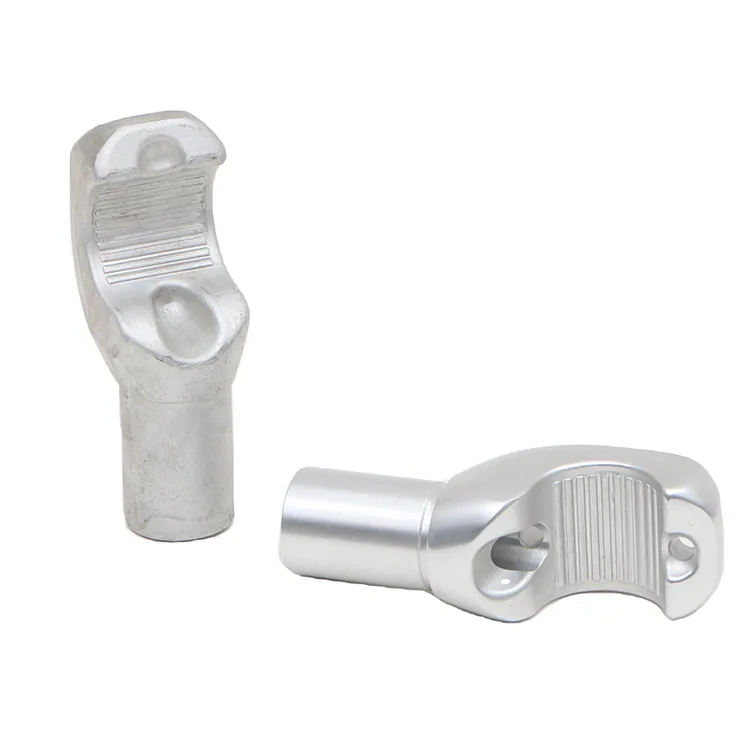

Forged Aluminum Latch

A latch item for the specified retaining or closure arrangement. This latch is specified in Aluminum. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Latch
• Material: Aluminum
• Processing: Precision Machined, Forged

Latch Design and Assembly

• Engagement face: show the profile that interacts with the mating retaining part.
• Pivot or guide: specify the location and fit of the moving interface.
• Release movement: define travel, installed orientation and clearance needed to operate the latch.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide engagement geometry, mounting points and required release clearance for the mating mechanism. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
