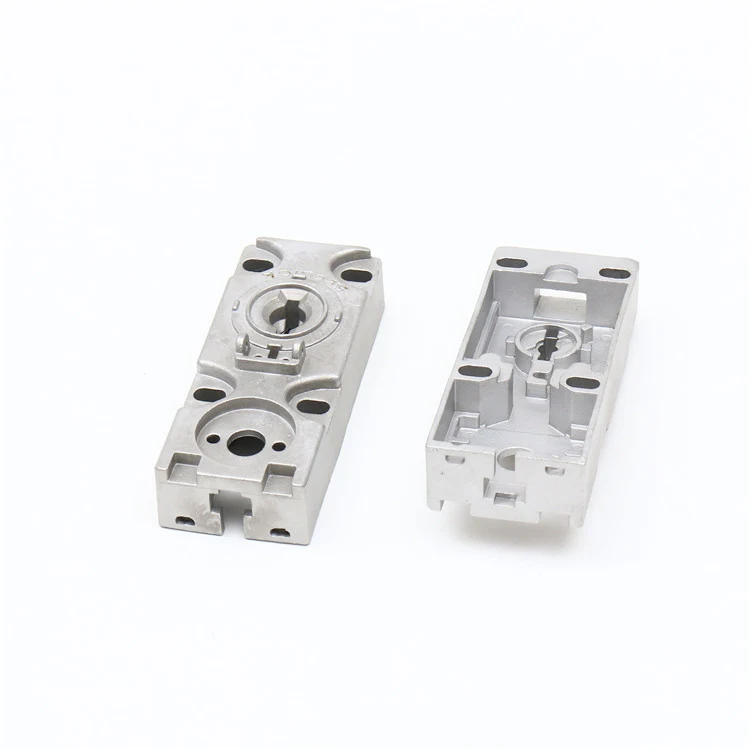

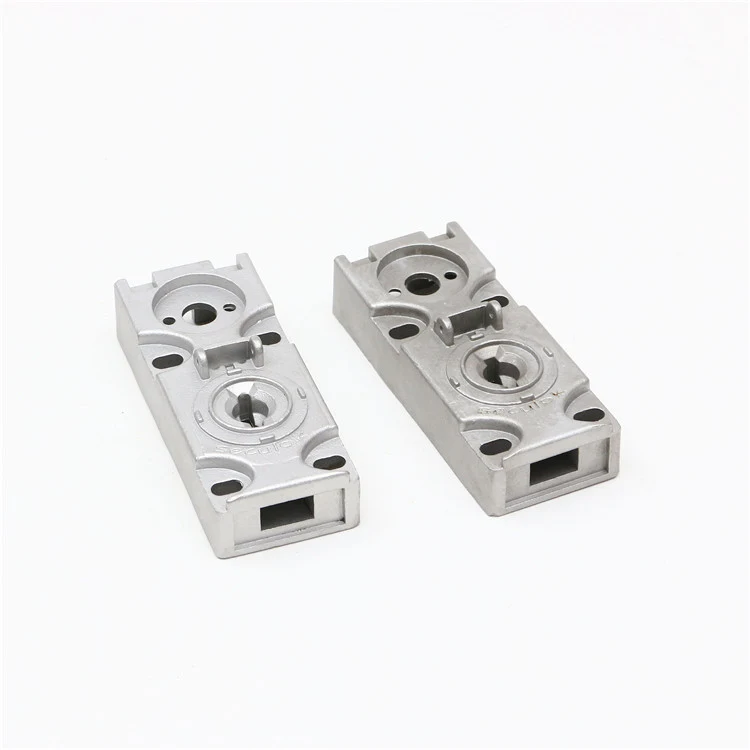

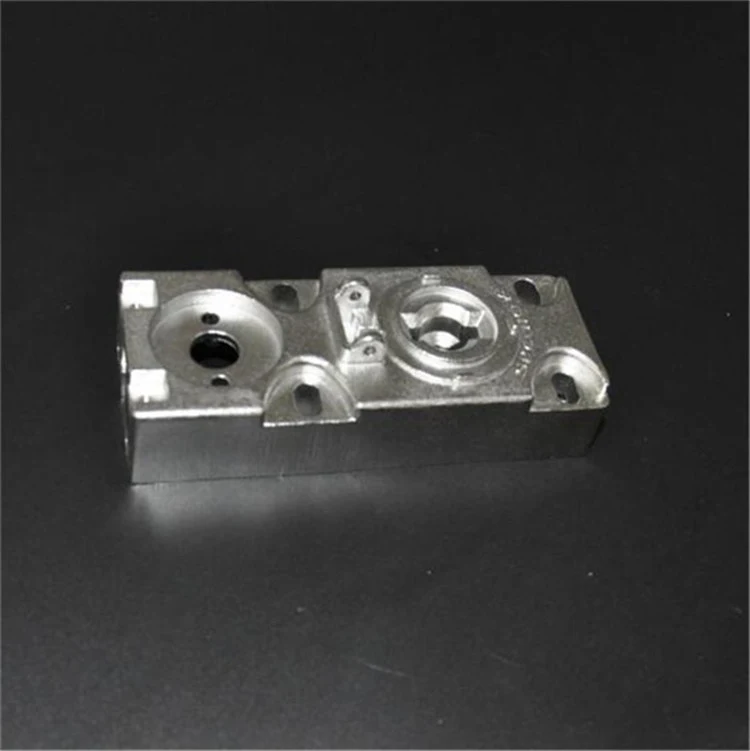

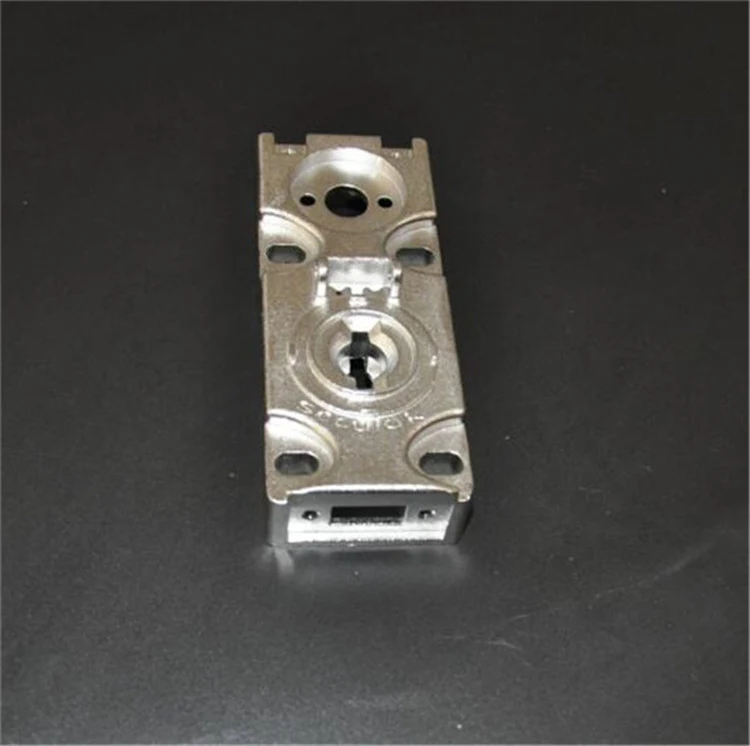

Cast Stainless Steel Lock Component

A part for the locking mechanism used with this component. This lock component is specified in Stainless Steel. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Lock Component
• Material: Stainless Steel
• Processing: Precision Machined, Cast

Lock Component Design and Assembly

• Mechanism interface: identify the mating lock assembly and the role of the ordered component.
• Engagement geometry: define the contact profile and the clearance around moving parts.
• Mounting references: show pivot, guide or fastening positions relative to the lock mechanism.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Show engagement surfaces, mounting datums and clearance to moving lock parts. Confirm the specific component required. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
