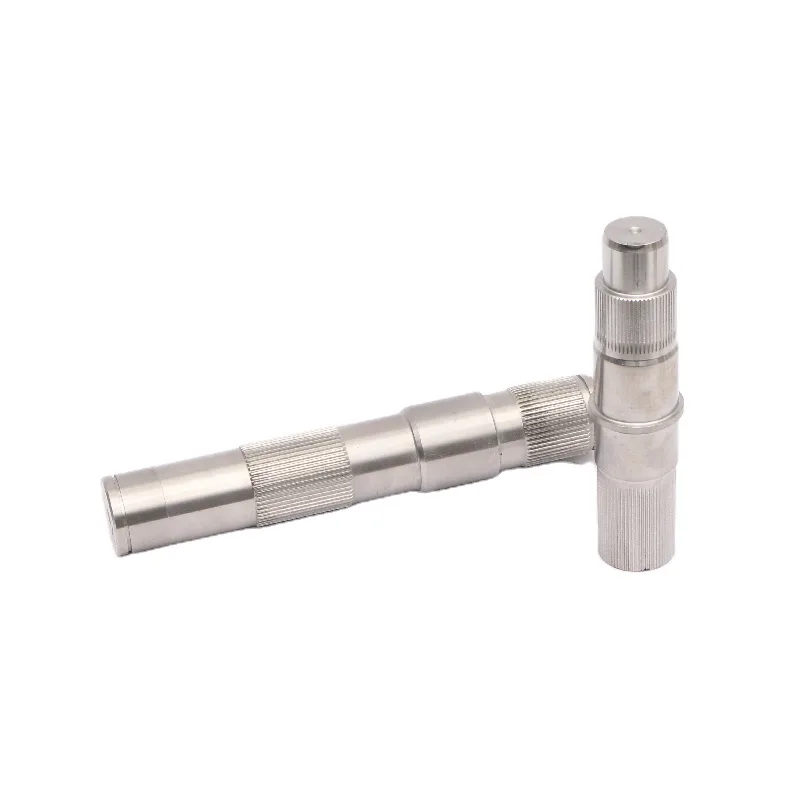

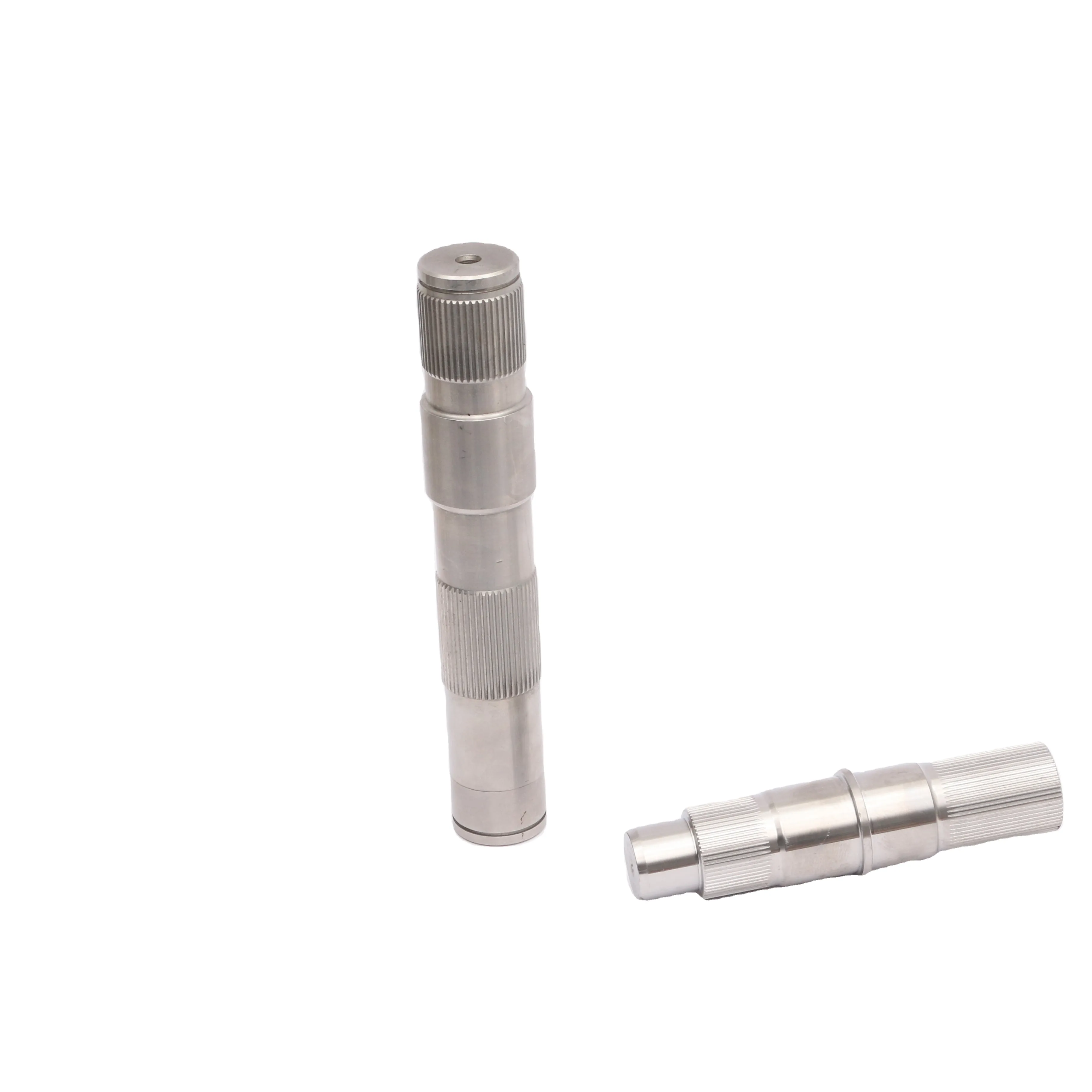

Forged Stainless Steel Eccentric Camshaft

A camshaft with an eccentric feature for the specified mechanism. This eccentric camshaft is specified in Stainless Steel. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Eccentric Camshaft
• Material: Stainless Steel
• Processing: Precision Machined, Forged

Eccentric Camshaft Design and Assembly

• Cam definition: provide the working contours and the angular relationship between each cam feature.
• Shaft interfaces: identify journals, drive connections and axial locating surfaces.
• Geometric controls: show the datums used to evaluate alignment and the relationship between rotating features.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Define eccentric offset, angular relationship, bearing journals and end interfaces. Include runout and datum requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
