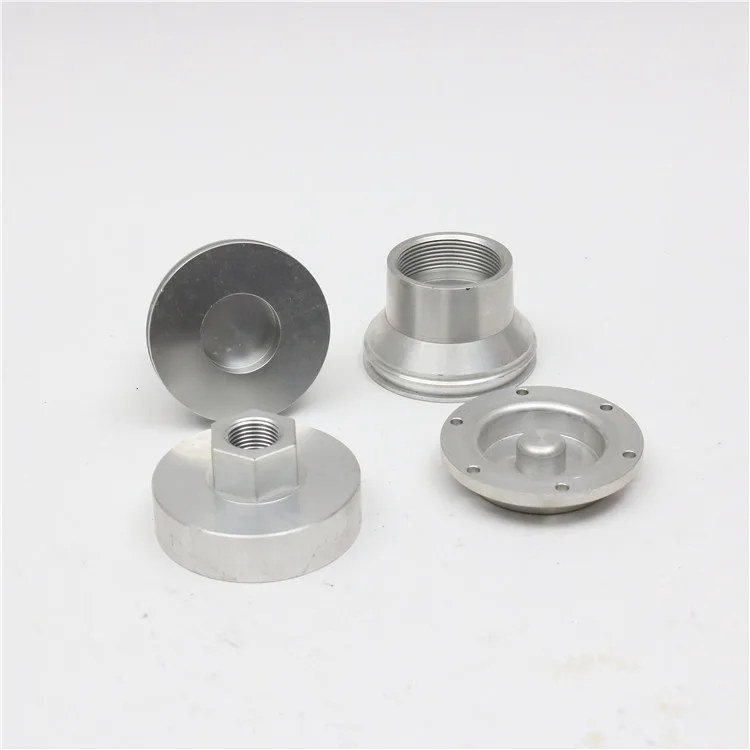

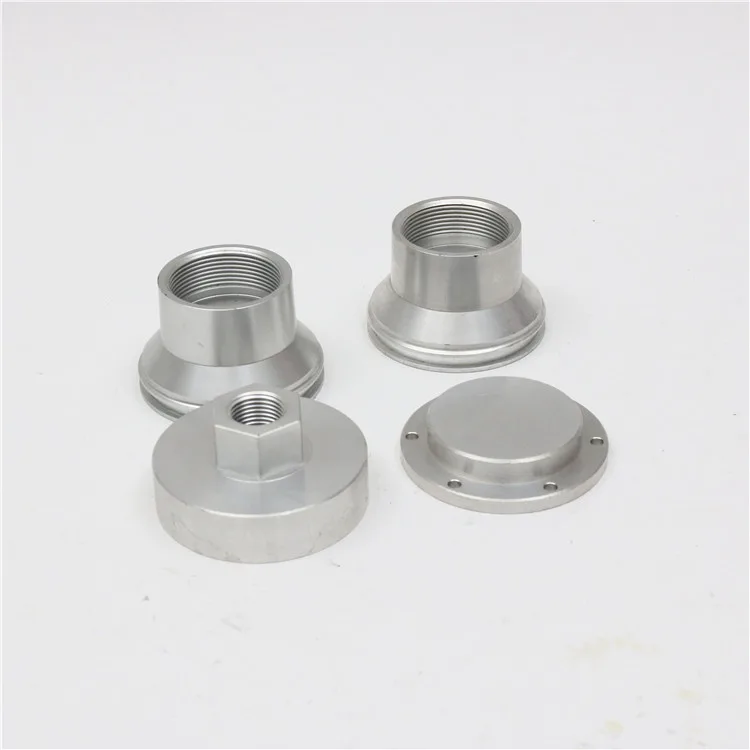

Custom Aluminum Valve Cover

The cover interfaces with the valve body and its fastening arrangement. This valve cover is specified in Aluminum. The manufacturing specification includes machining.

Technical Overview

• Part: Valve Cover
• Material: Aluminum
• Processing: Machined

Valve Cover Design and Assembly

• Cover profile: define the outside contour and the joint with the adjoining valve body.
• Fastener layout: provide hole positions, thread details and access around the mounting points.
• Contact and clearance: identify any sealing face and the space required around internal valve components.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

The drawing should define the cover profile, bolt pattern, sealing face and clearance for internal valve parts. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
