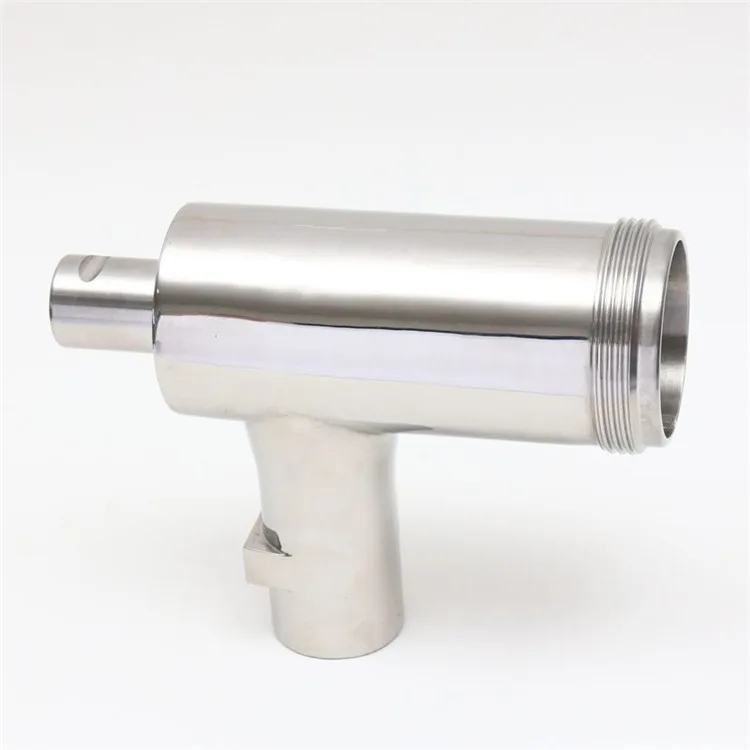

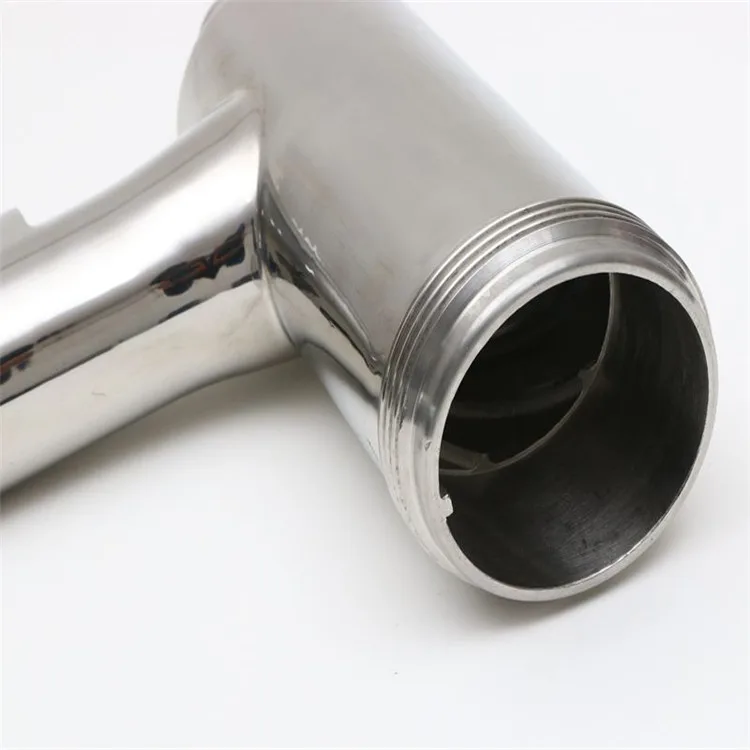

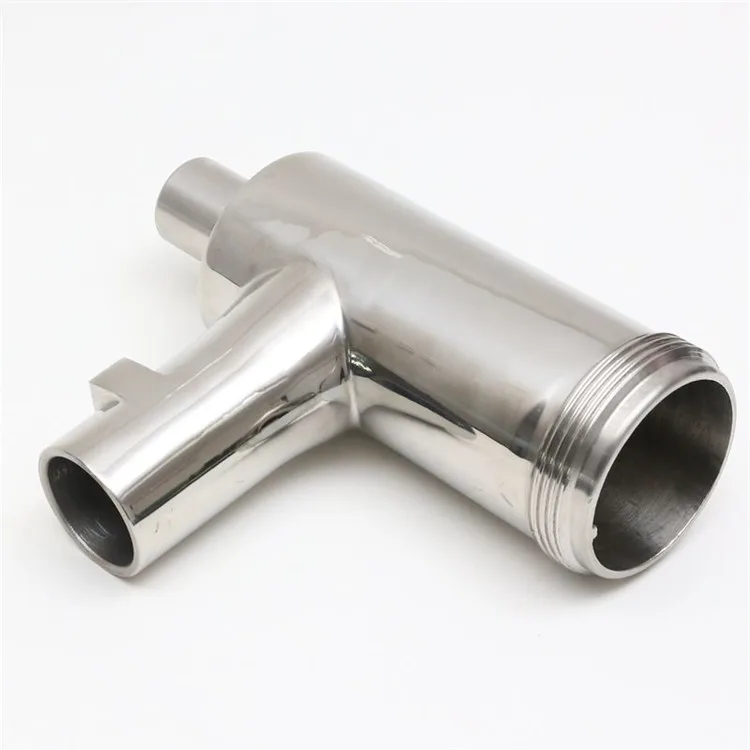

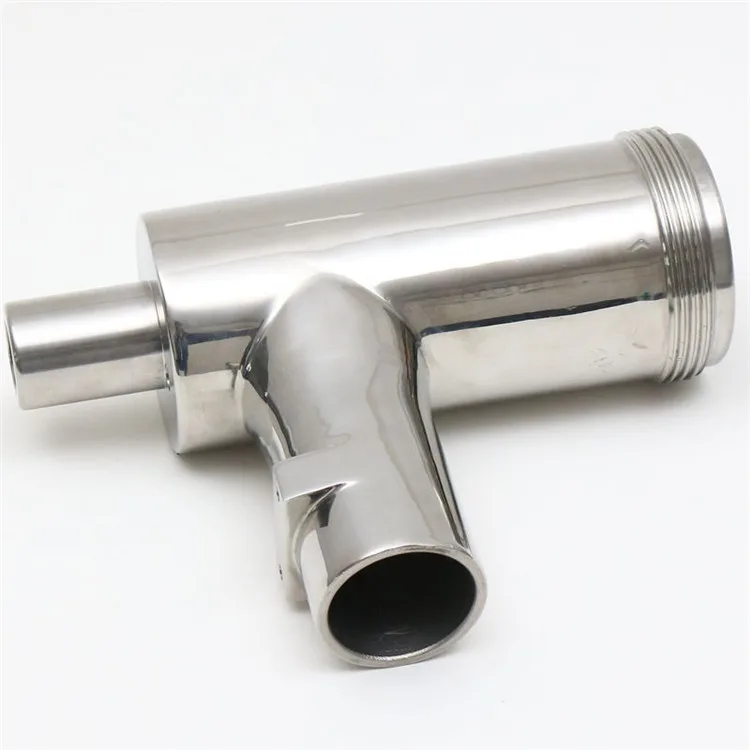

Meat Grinder Chamber

A chamber item for the meat grinder's processing section. This meat grinder chamber is produced to the specified part drawing. The manufacturing specification includes precision machining.

Technical Overview

• Part: Meat Grinder Chamber
• Processing: Precision Machined

Meat Grinder Chamber Design and Assembly

• Machine identification: provide the grinder model and the exact component position.
• Mating geometry: show the connection to the drive, chamber, cutter or other relevant neighboring part.
• Contact requirements: specify material grade and surface condition for any areas that contact the processed product.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Define the working passage, feed connection and interfaces with the auger or cutter. State the required finish on contact surfaces. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
