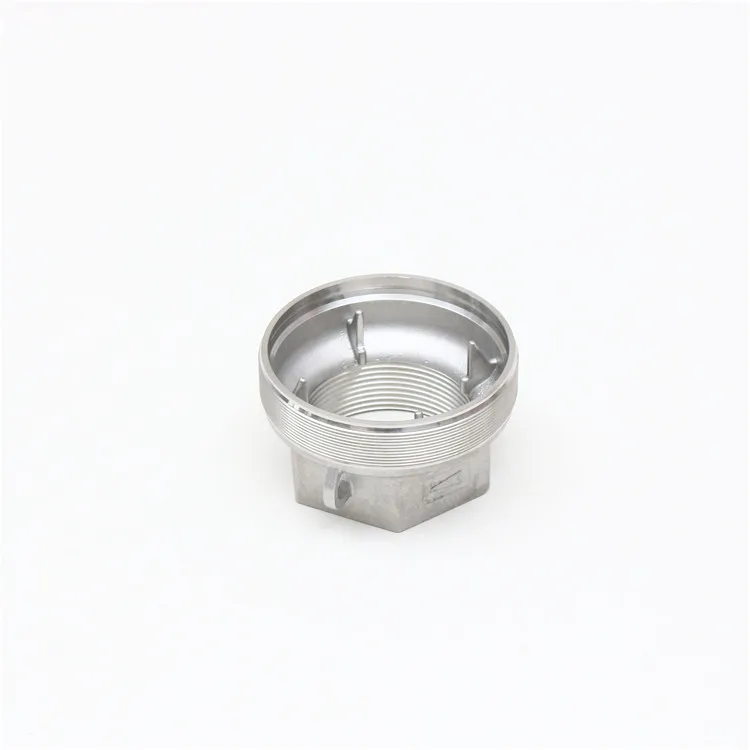

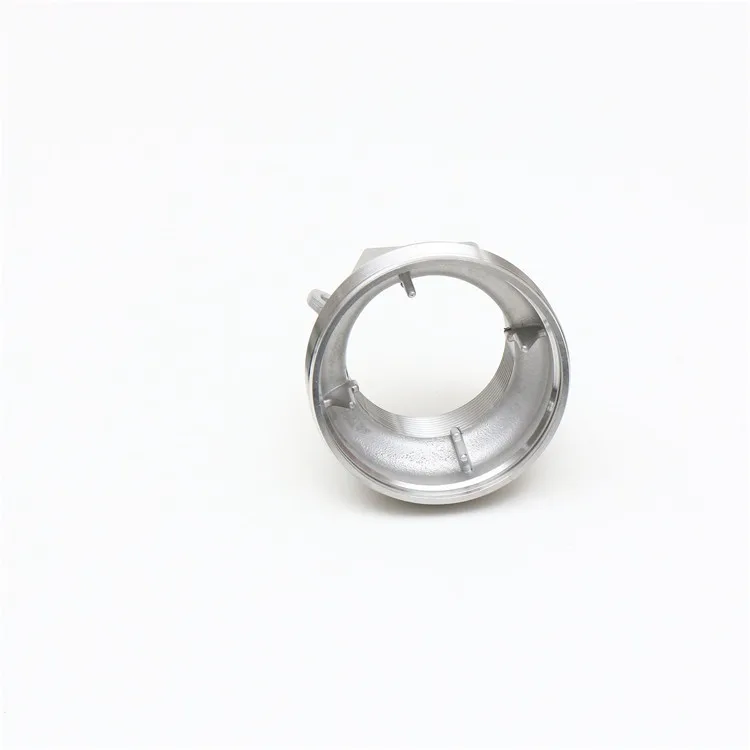

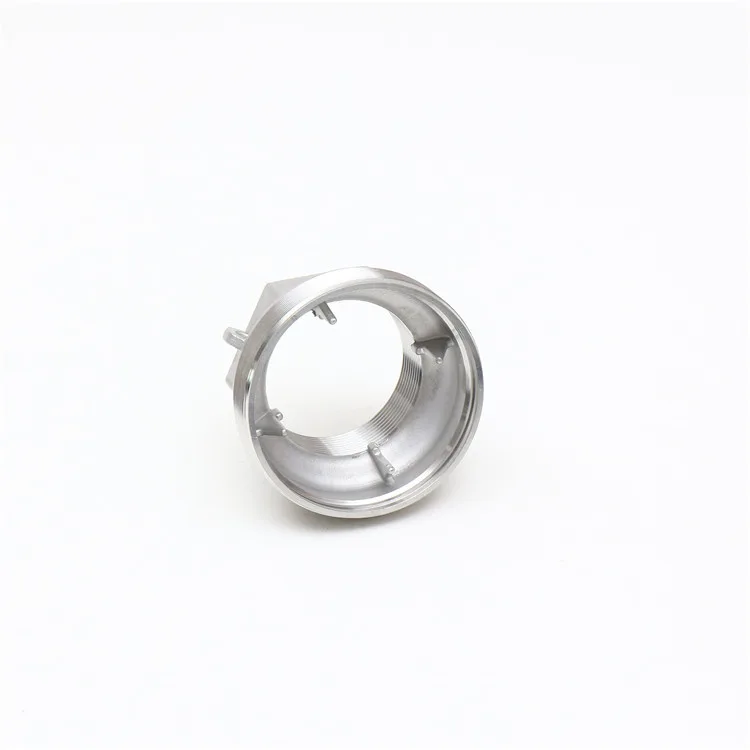

Stainless Steel Soy Milk Maker Mounting Base

A mounting base for the component arrangement in a soy milk maker. This soy milk maker mounting base is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Soy Milk Maker Mounting Base
• Material: Stainless Steel
• Processing: Precision Machined

Soy Milk Maker Mounting Base Design and Assembly

• Machine fit: provide the equipment model and the position of the component within the maker.
• Functional interface: show the connection to the adjacent chamber, shaft, blade or mounting structure as applicable.
• Contact requirements: identify the surfaces exposed to the processed product and the finish specified for those surfaces.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide fastening locations, seating geometry and clearance to the surrounding machine components. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
