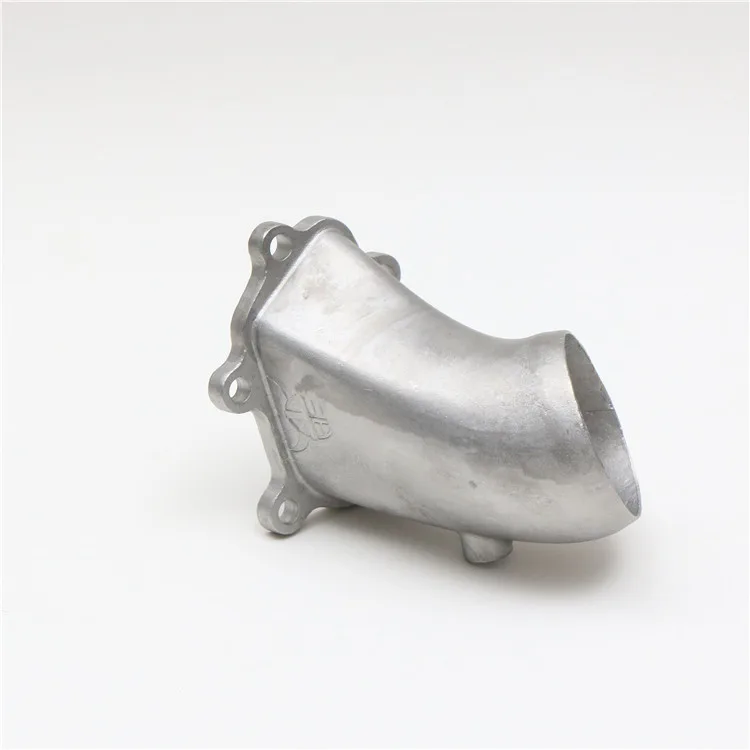

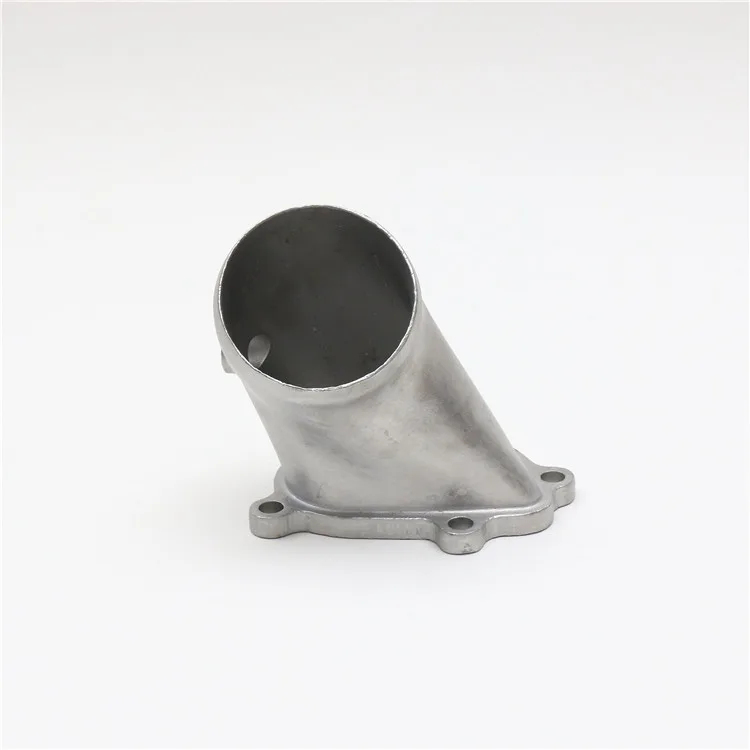

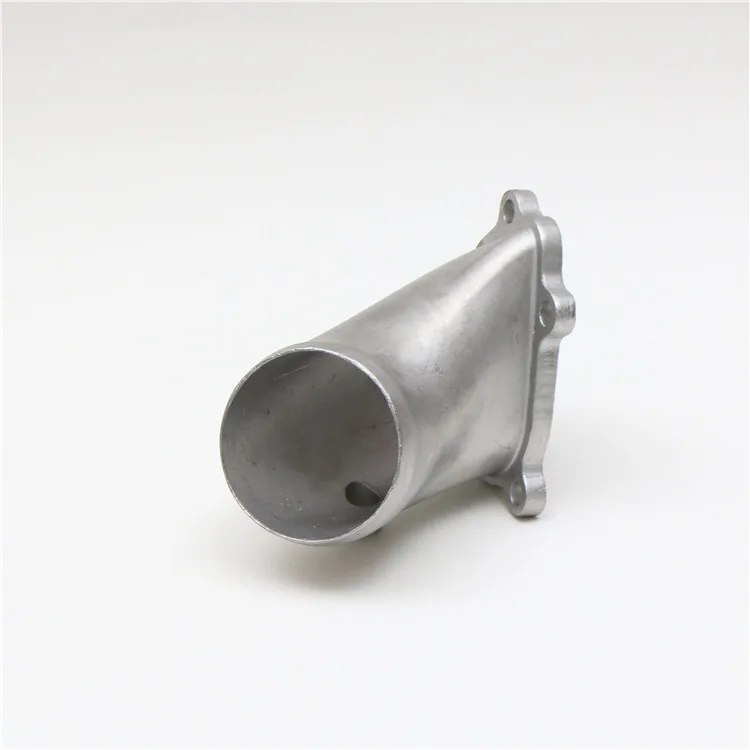

Investment-Cast Stainless Steel Horn-Shaped Flange

A flange item for the adjoining component or pipe connection. This horn-shaped flange is specified in Stainless Steel. The manufacturing specification includes investment casting and machining.

Technical Overview

• Part: Horn-Shaped Flange
• Material: Stainless Steel
• Processing: Machined, Investment-Cast

Horn-Shaped Flange Design and Assembly

• Mounting pattern: define hole quantity, hole size and bolt-circle or coordinate positions.
• Mating face: identify the contact surface and any seal-related details present in the design.
• Center opening: specify bore geometry, overall thickness and the connection to the adjoining part.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

State outside diameter, thickness, bolt-circle geometry and mating-face requirements. Identify the connection standard where one applies. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
