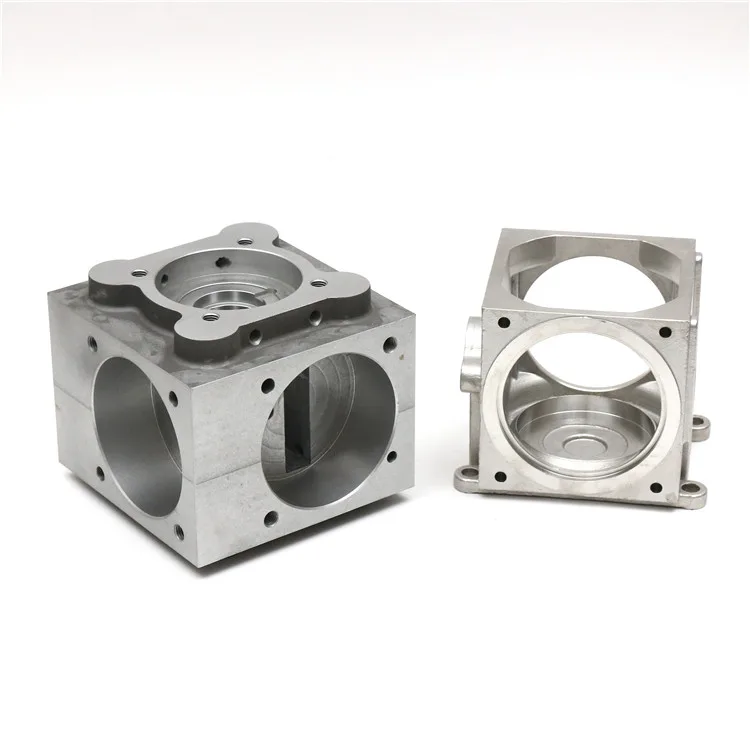

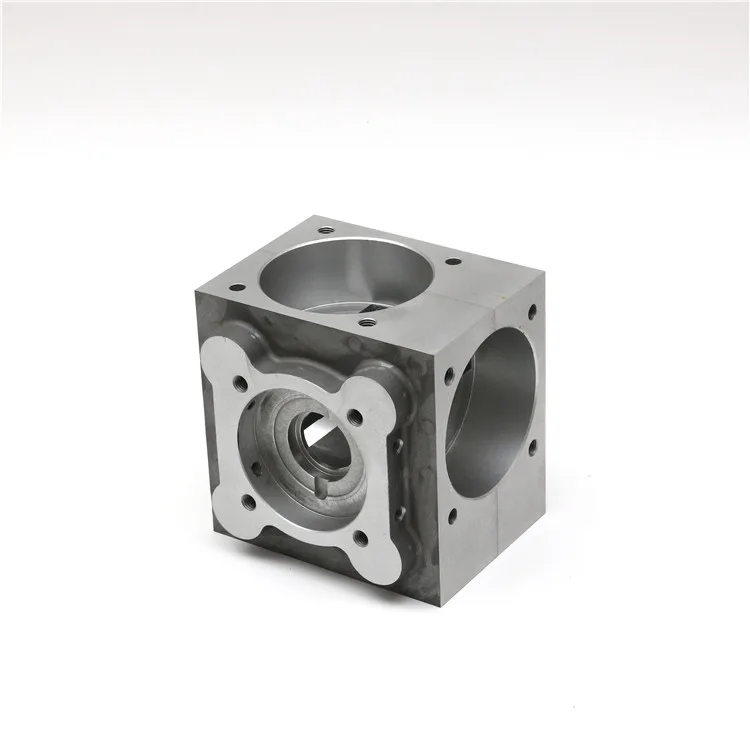

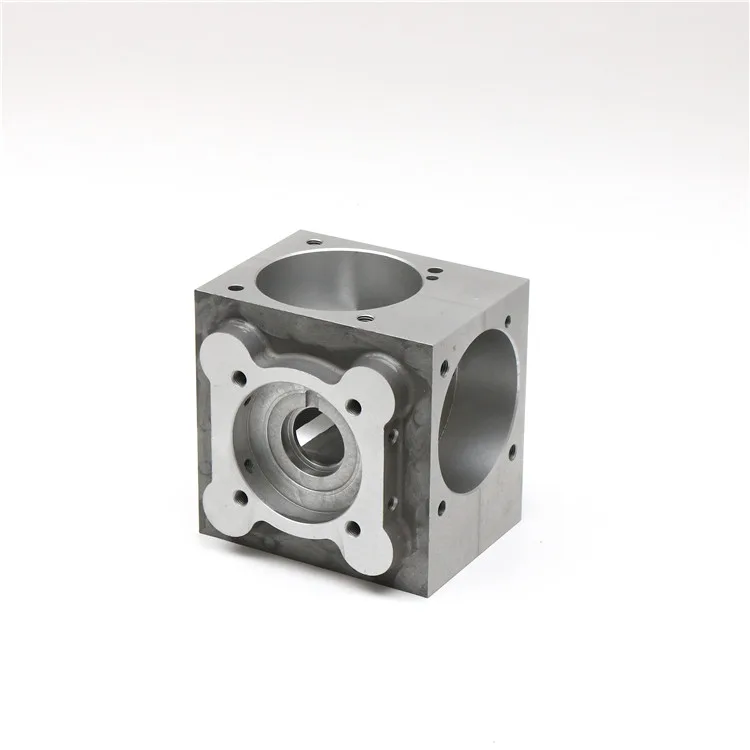

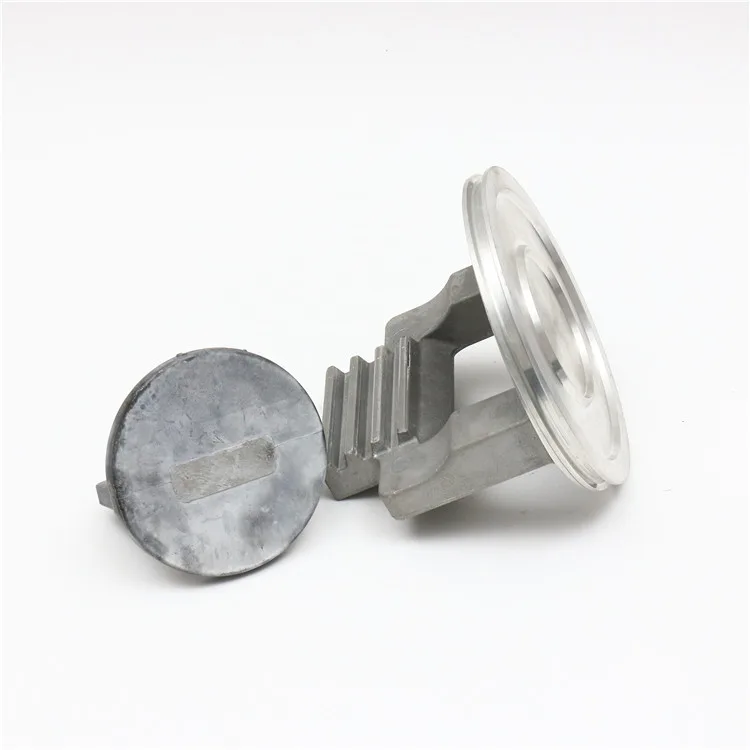

Cast Aluminum Valve Component

A component for a valve assembly, with the specific internal or external interface defined by the part drawing. This valve component is specified in Aluminum. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Valve Component

• Material: Aluminum

• Processing: Precision Machined, Cast

Valve Component Design and Assembly

• Component scope: identify the valve type and the exact part required within the assembly.

• Connection geometry: provide the dimensions of the mating parts and the appropriate connection standard.

• Service-related details: state the intended fluid and operating conditions where they affect the specified material or design.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Identify the valve type and the component's position in the assembly. Specify connection, sealing and fit requirements relevant to that position. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
