Custom Carbon Steel Pump Impeller

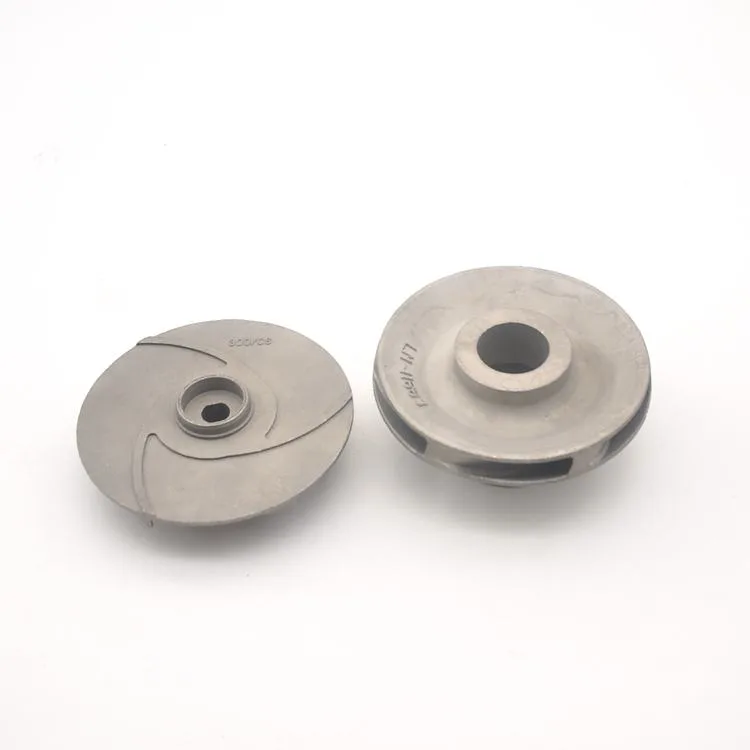

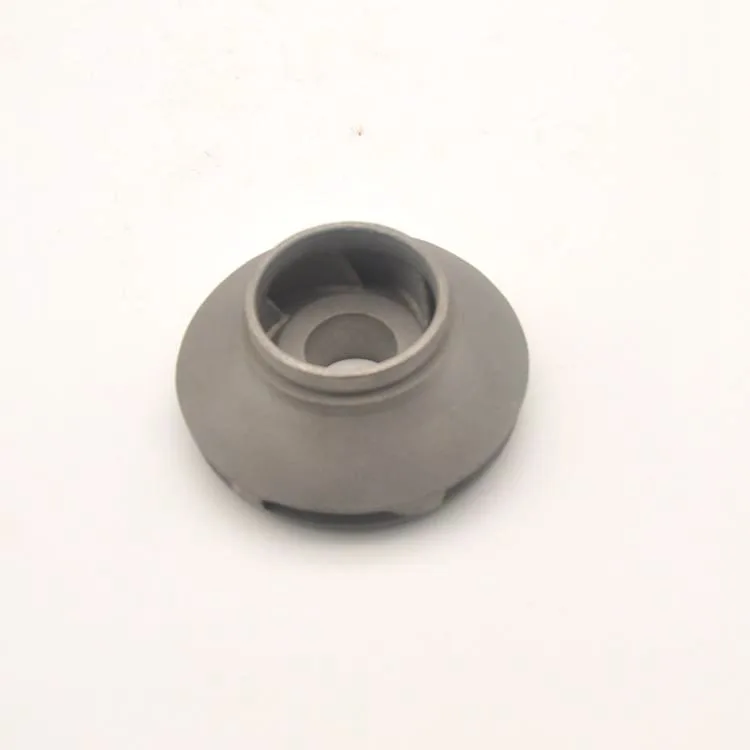

An impeller item for a rotating pump assembly. This pump impeller is specified in Carbon Steel. The manufacturing specification includes machining.

Technical Overview

• Part: Pump Impeller
• Material: Carbon Steel
• Processing: Machined

Pump Impeller Design and Assembly

• Vane and rim geometry: show the flow-related profile, outside diameter and direction of rotation.
• Hub connection: define the shaft bore, keyway or other attachment features present in the design.
• Assembly controls: specify clearances, reference datums and any balance requirement separately.

Material and Manufacturing Requirements

The specified material is carbon steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Provide the vane geometry, outside diameter, hub bore and shaft attachment. Balance requirements and rotation direction should be stated for the final part. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
