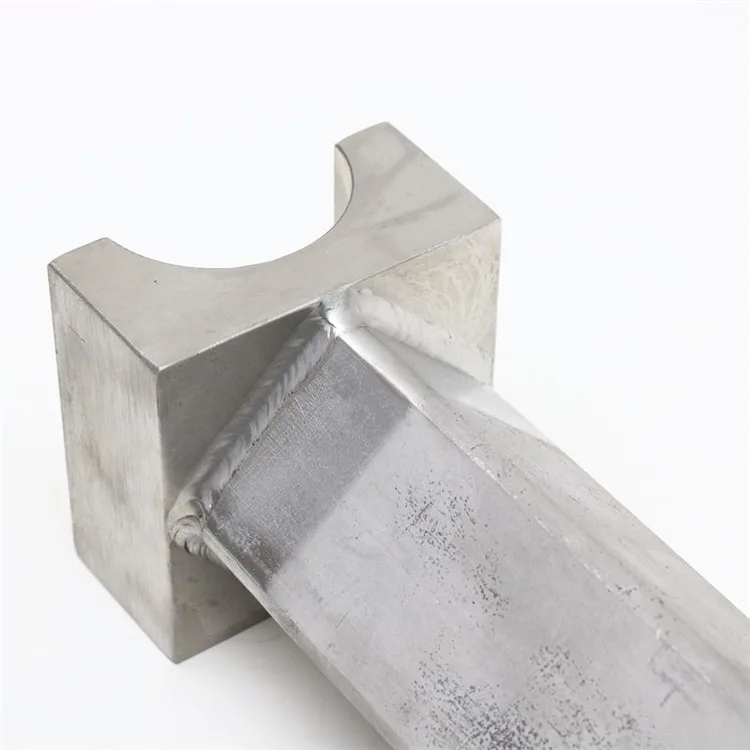

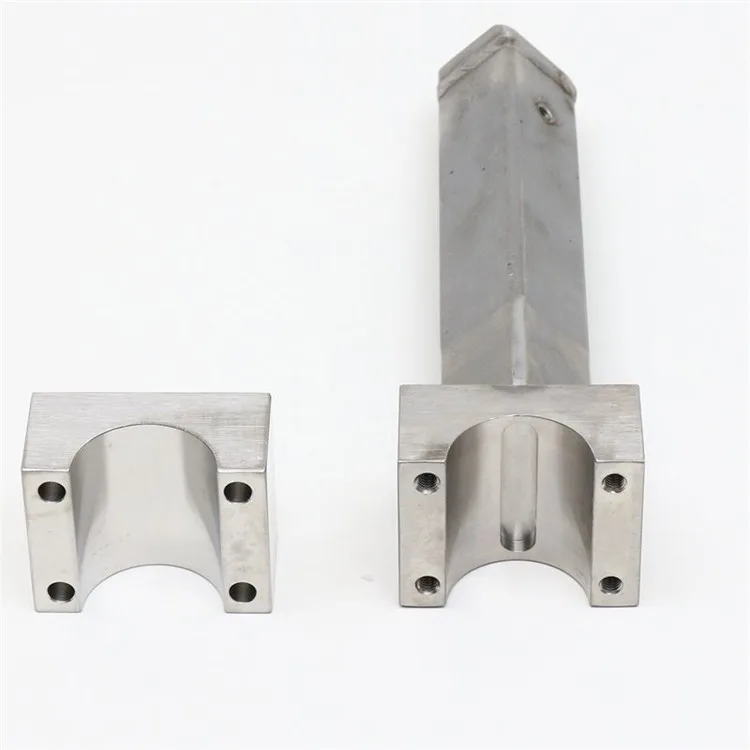

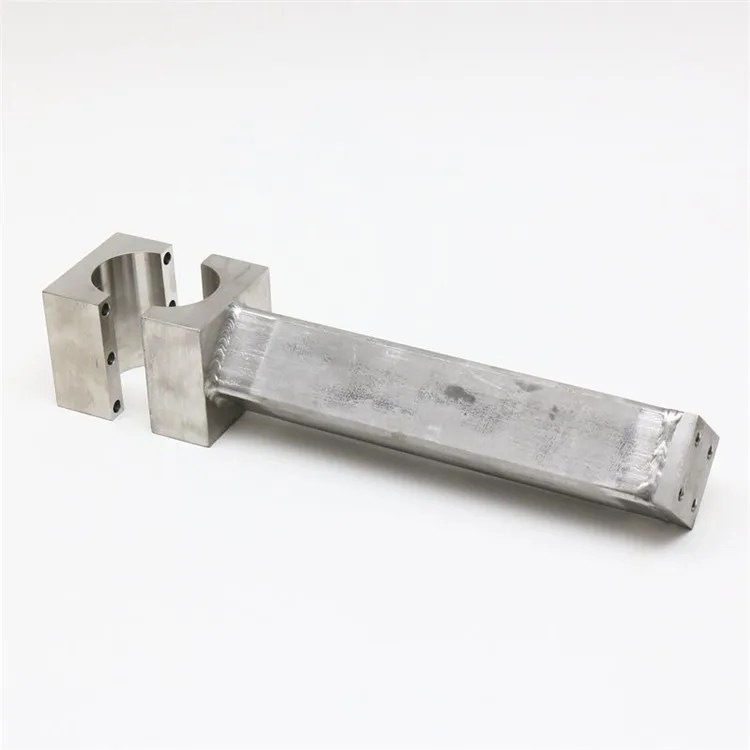

Stainless Steel Mixer Arm Component

An arm item for the mixer mechanism used with this component. This mixer arm component is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Mixer Arm Component
• Material: Stainless Steel
• Processing: Precision Machined

Mixer Arm Component Design and Assembly

• Mixer interface: identify the equipment model and the component's mounting or drive connection.
• Working clearance: show the relationship to the mixing elements, bowl or surrounding structure.
• Product-contact details: specify the surface condition required in areas exposed to the mixed material.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Define the arm profile, hub or pivot interface and clearance to the bowl and adjacent mixing elements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
