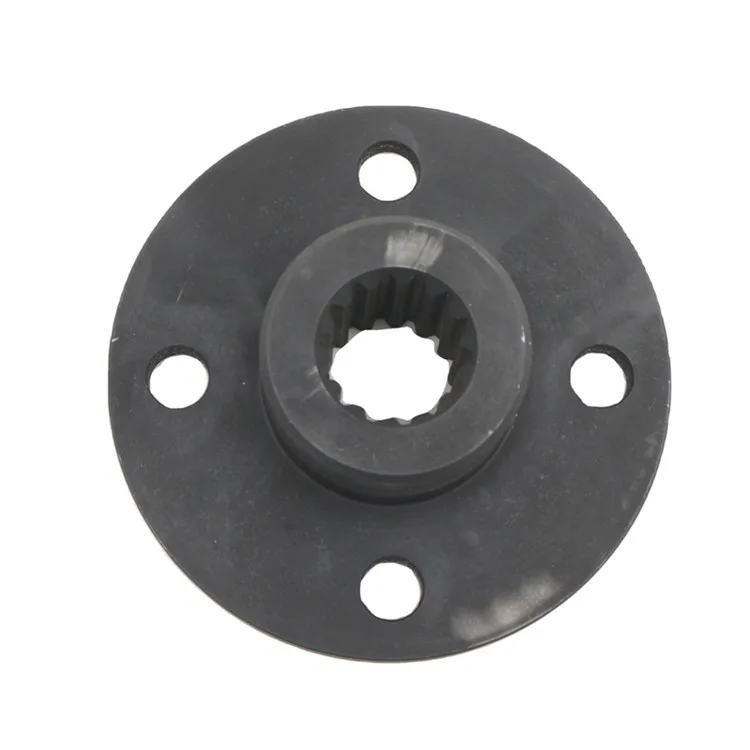

Custom Ductile Iron Flange

A flange item for the adjoining component or pipe connection. This flange is specified in Ductile Iron. The manufacturing specification includes machining.

Technical Overview

• Part: Flange
• Material: Ductile Iron
• Processing: Machined

Flange Design and Assembly

• Mounting pattern: define hole quantity, hole size and bolt-circle or coordinate positions.
• Mating face: identify the contact surface and any seal-related details present in the design.
• Center opening: specify bore geometry, overall thickness and the connection to the adjoining part.

Material and Manufacturing Requirements

The specified material is ductile iron. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

State outside diameter, thickness, bolt-circle geometry and mating-face requirements. Identify the connection standard where one applies. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
