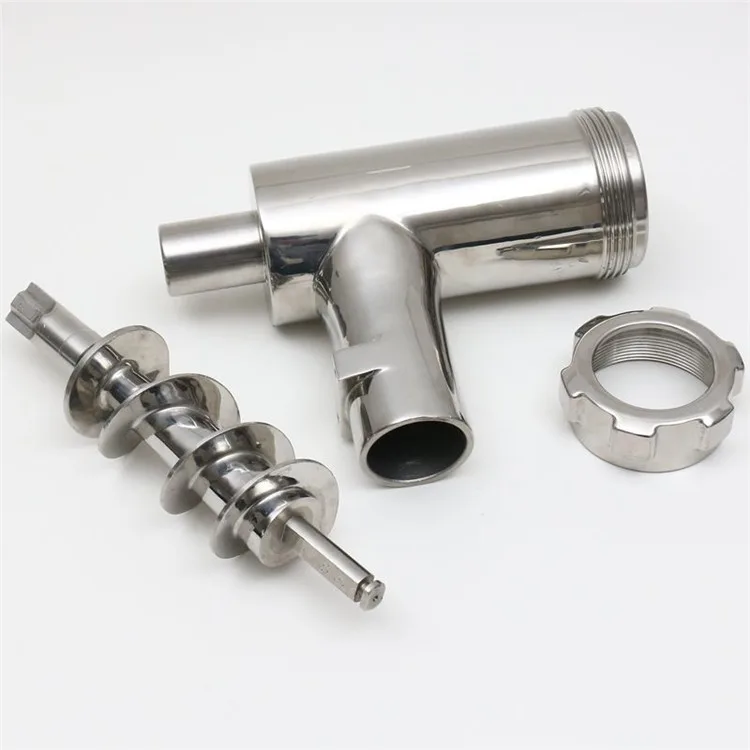

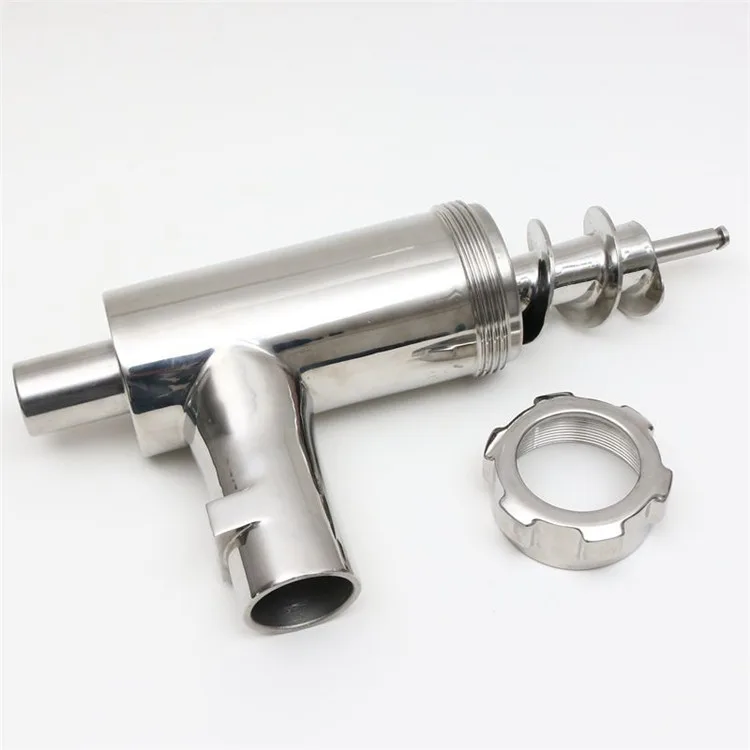

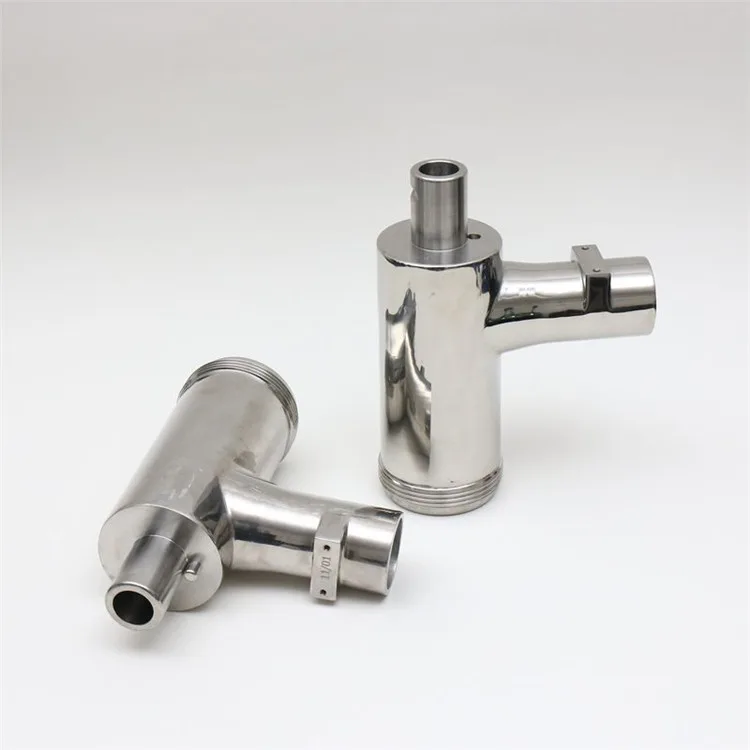

Investment-Cast Meat Grinder Housing

A housing item for the meat grinder's working assembly. This meat grinder housing is produced to the specified part drawing. The manufacturing specification includes investment casting and machining.

Technical Overview

• Part: Meat Grinder Housing
• Processing: Machined, Investment-Cast

Meat Grinder Housing Design and Assembly

• Working passage: define the internal geometry and the interface with the grinder's processing elements.
• Feed and discharge: show the connection features relevant to the ordered housing.
• Assembly access: identify end attachments, cleaning access and contact-surface requirements for the actual design.

Material and Manufacturing Requirements

The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Provide internal bore geometry, inlet and outlet interfaces and the end-attachment details. Confirm clearance to the screw and cutter assembly. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
