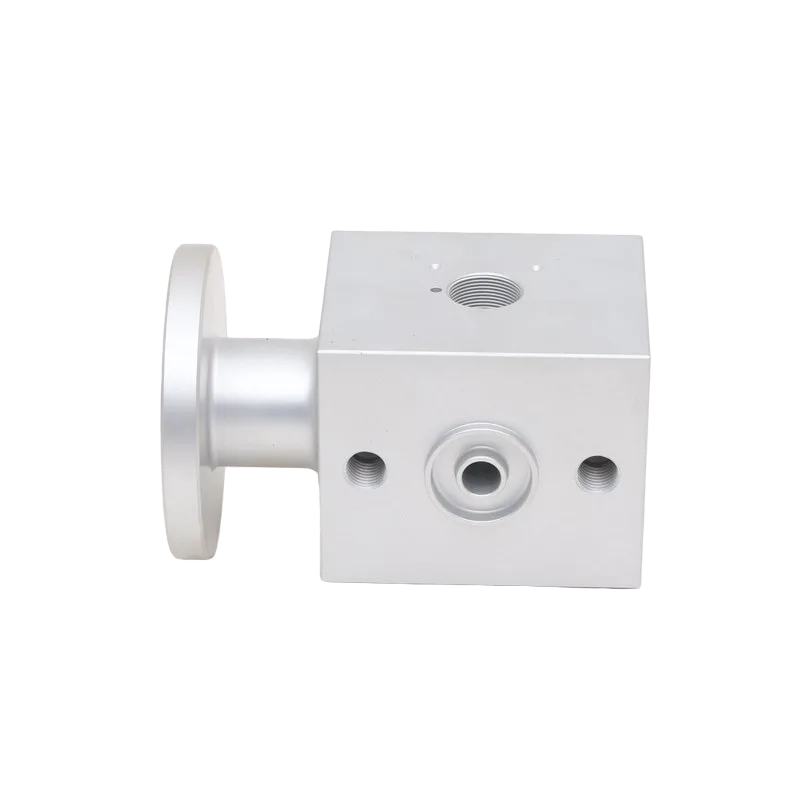

Aluminum Valve Manifold Block

A manifold block for the connection layout defined by the assembly drawing. This valve manifold block is specified in Aluminum. The manufacturing specification includes precision machining.

Technical Overview

• Part: Valve Manifold Block
• Material: Aluminum
• Processing: Precision Machined

Valve Manifold Block Design and Assembly

• Port map: label each connection, its size and its position relative to the installation datums.
• Passage geometry: define internal routes and identify any intersections or plugged openings.
• Mounting arrangement: show attachment points and the clearance required for connecting hardware.

Material and Manufacturing Requirements

The specified material is aluminum. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Supply port positions, intersecting passage dimensions and mounting-hole coordinates. Identify any plugged passages and the required connection standard. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
