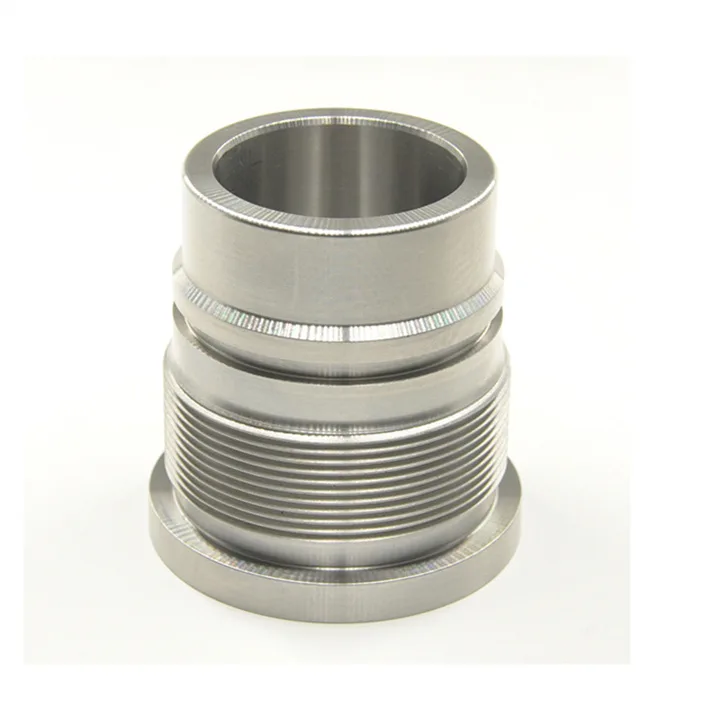

Custom Stainless Steel Connector

A connector item for joining the components specified in the assembly drawing. This connector is specified in Stainless Steel. The manufacturing specification includes machining.

Technical Overview

• Part: Connector
• Material: Stainless Steel
• Processing: Machined

Connector Design and Assembly

• Two-sided interface: provide the dimensions of each mating end and identify the connected components.
• Location and orientation: show the reference features used to position the connector.
• Connection requirements: specify thread, sealing or retention details applicable to the selected design.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Provide the geometry at both ends, locating features and required assembly fit. State the connection standard where relevant. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
