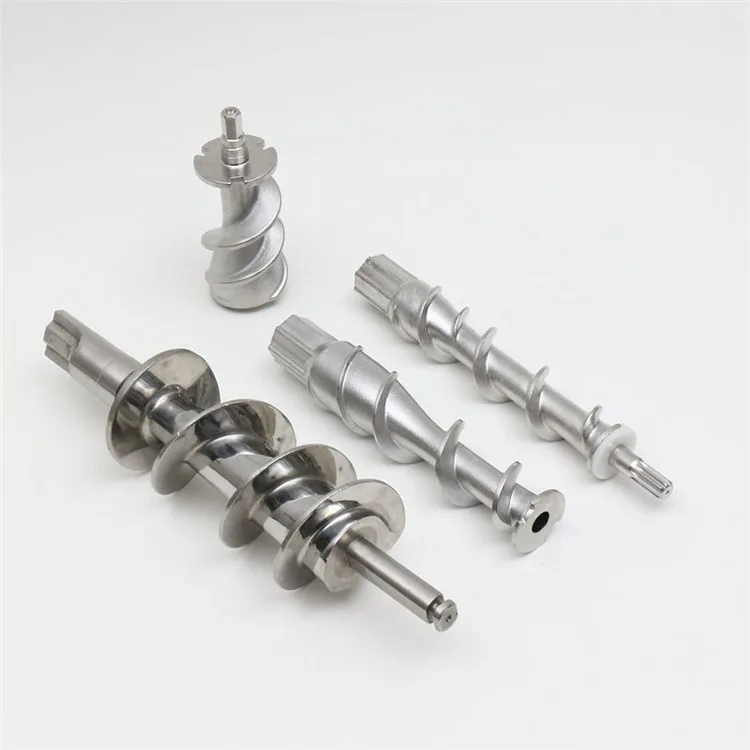

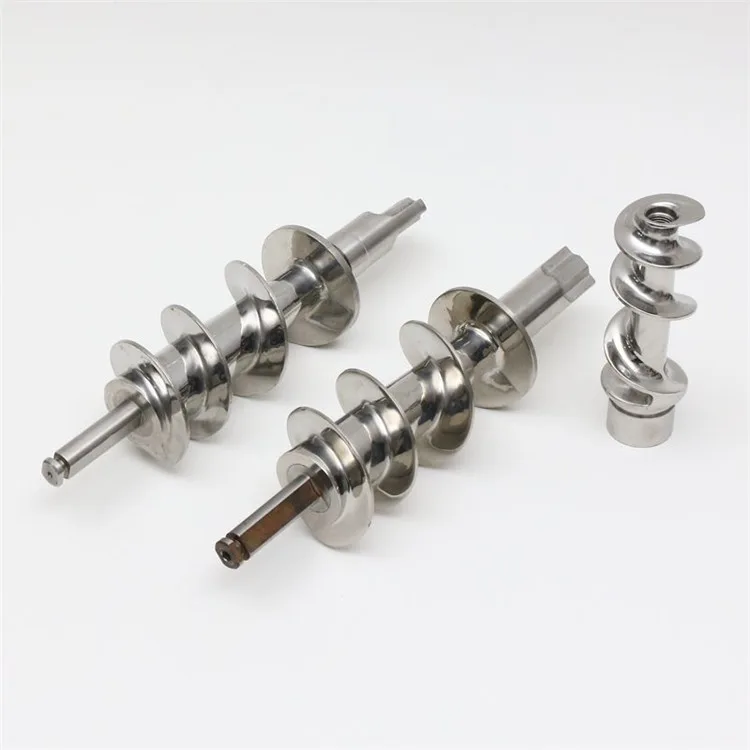

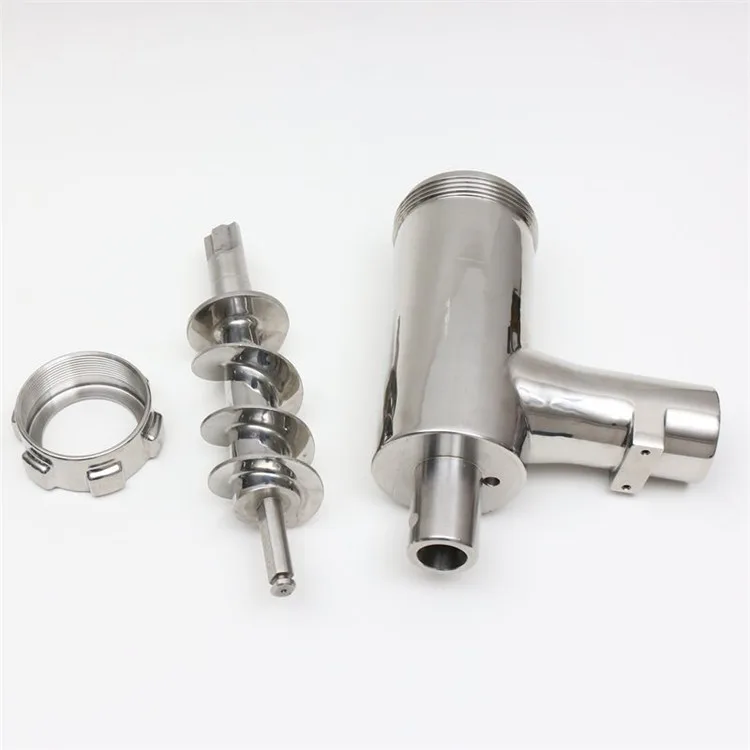

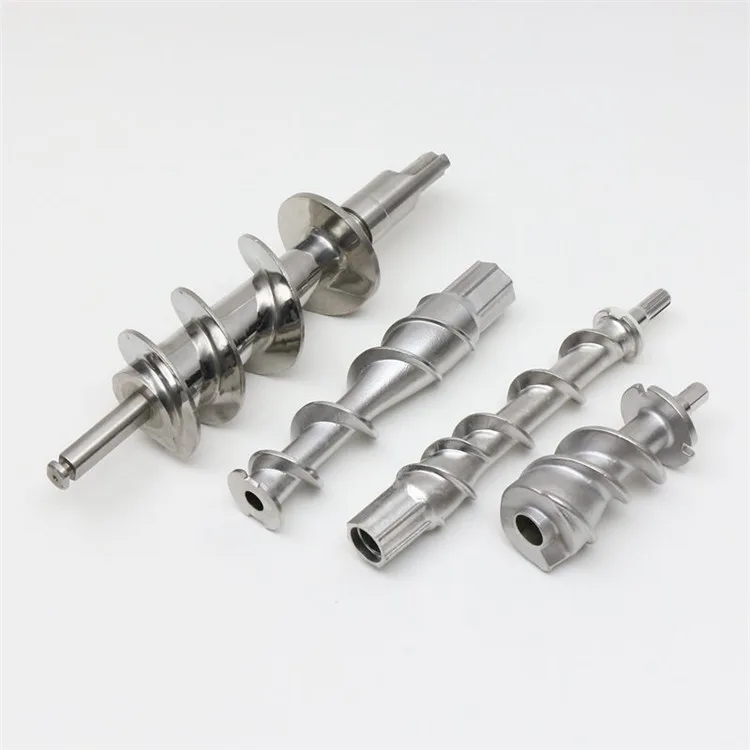

Machined Stainless Steel Mixing Shaft

A shaft item for a mixing assembly, with mixer attachment details defined by the equipment design. This mixing shaft is specified in Stainless Steel. The manufacturing specification includes machining.

Technical Overview

• Part: Mixing Shaft
• Material: Stainless Steel
• Processing: Machined

Mixing Shaft Design and Assembly

• Drive interface: specify the connection between the shaft and the mixer drive.
• Working section: define the shaft length and the attachment of mixing elements included in the assembly.
• Equipment fit: provide bearing positions, operating clearances and product-contact surface requirements where applicable.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Specify shaft length, drive connection, mixing-element attachment and operating clearances. Identify any product-contact surface requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
