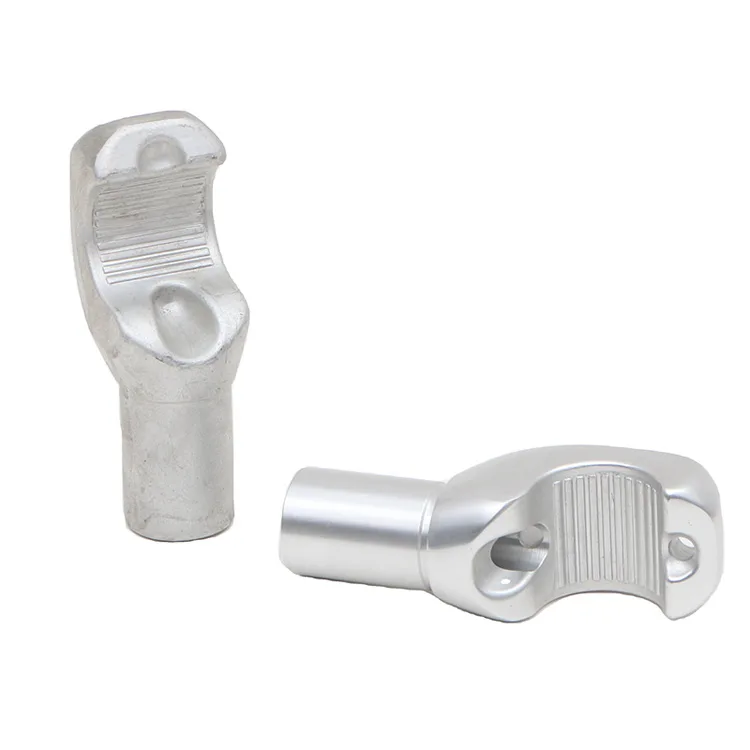

Forged 7075 Aluminum Clip

A clip item whose retention geometry follows the part drawing. This clip is specified in 7075 Aluminum. The manufacturing specification includes forging and precision machining.

Technical Overview

• Part: Clip
• Material: 7075 Aluminum
• Processing: Precision Machined, Forged

Clip Design and Assembly

• Retaining profile: define the opening and the shape of the mating component.
• Installation direction: show how the clip is positioned and engaged during assembly.
• Contact dimensions: identify the features that control retention and the required surface condition.

Material and Manufacturing Requirements

The specified material is 7075 Aluminum. Include the applicable grade designation and delivery condition in the drawing or purchase specification, together with any material documentation required for the order.

Forging is included in the specification. Identify the finished-part geometry and distinguish surfaces requiring later machining from those to be accepted in the forged condition.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify the mating profile, opening dimensions and installation direction. Confirm material and finish requirements for the intended fit. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
