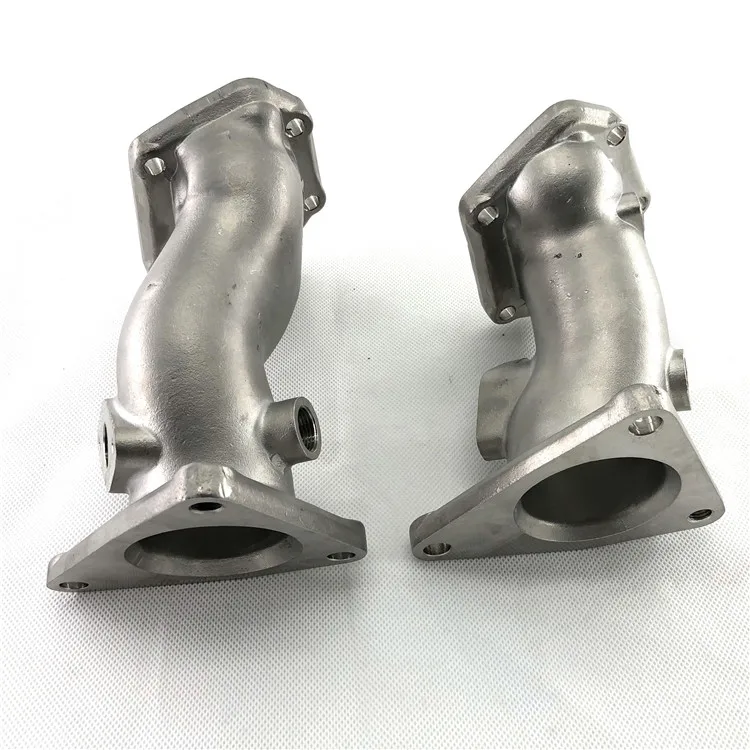

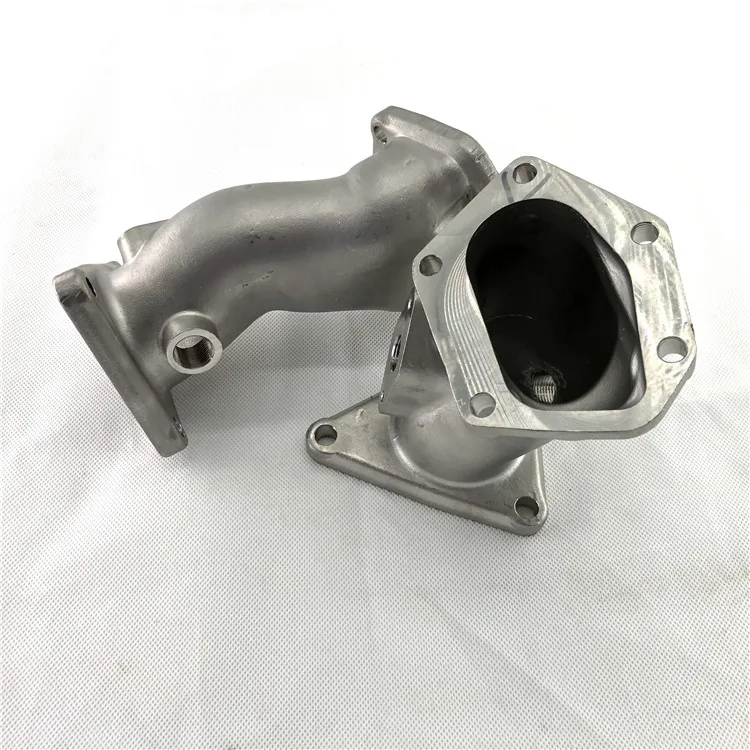

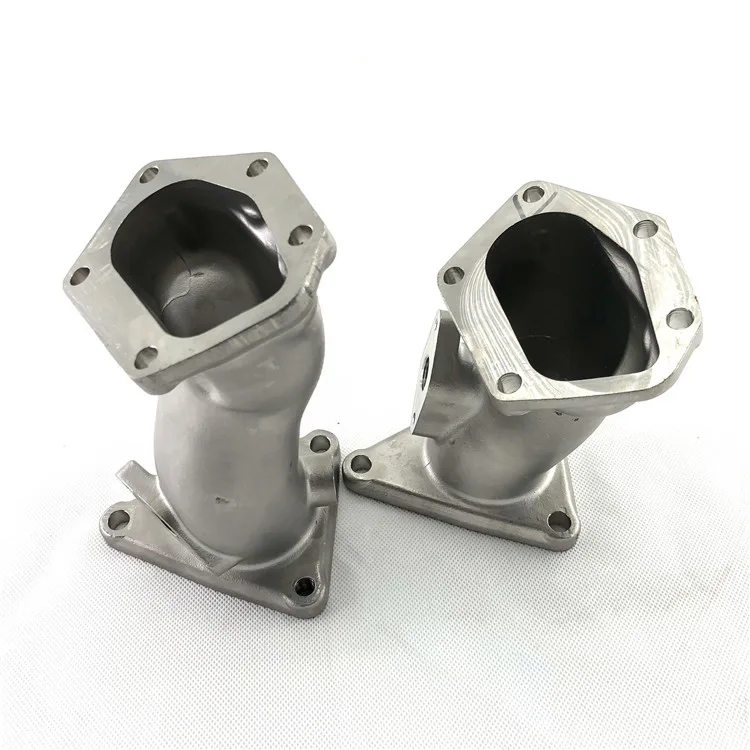

Stainless Steel Manifold Connector

A connector item for a manifold interface. This manifold connector is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Manifold Connector
• Material: Stainless Steel
• Processing: Precision Machined

Manifold Connector Design and Assembly

• Two-sided interface: provide the dimensions of each mating end and identify the connected components.
• Location and orientation: show the reference features used to position the connector.
• Connection requirements: specify thread, sealing or retention details applicable to the selected design.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

State the mating manifold geometry, passage alignment and thread or flange dimensions for the connection. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
