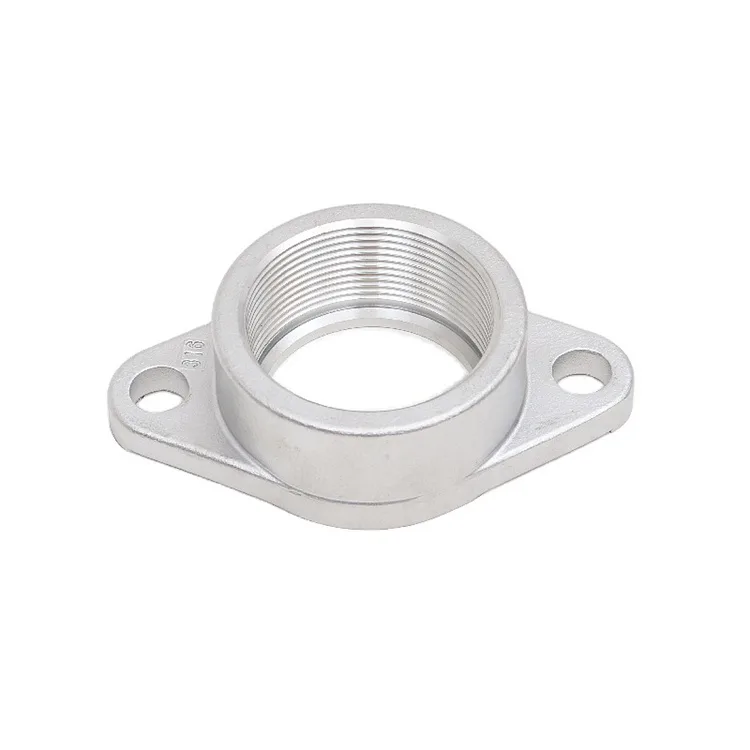

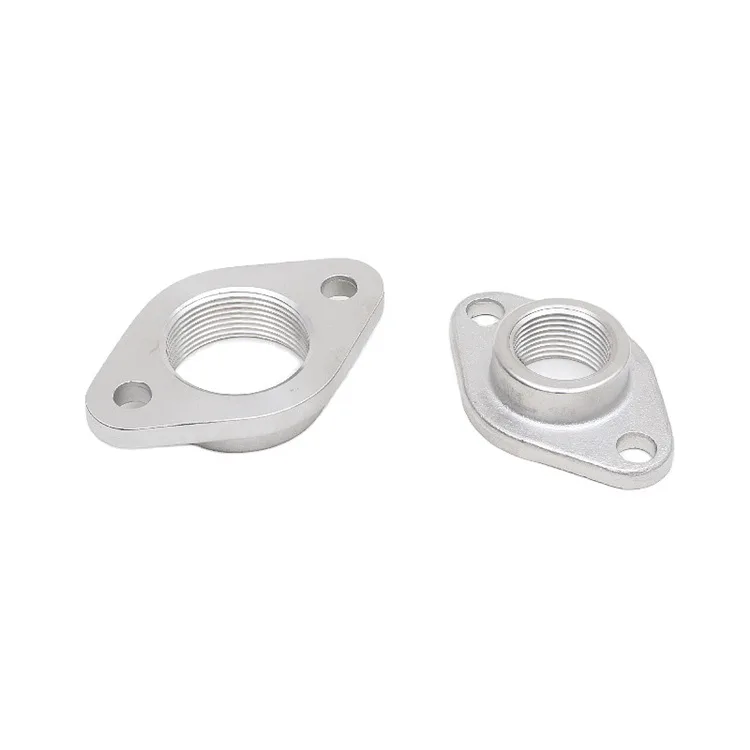

Cast Stainless Steel Flange

A flange item for the adjoining component or pipe connection. This flange is specified in Stainless Steel. The manufacturing specification includes casting and precision machining.

Technical Overview

• Part: Flange
• Material: Stainless Steel
• Processing: Precision Machined, Cast

Flange Design and Assembly

• Mounting pattern: define hole quantity, hole size and bolt-circle or coordinate positions.
• Mating face: identify the contact surface and any seal-related details present in the design.
• Center opening: specify bore geometry, overall thickness and the connection to the adjoining part.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Casting is specified for this part. Clarify the required casting geometry, the surfaces to be machined and any acceptance criteria relevant to the finished component rather than assuming a universal casting specification.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

State outside diameter, thickness, bolt-circle geometry and mating-face requirements. Identify the connection standard where one applies. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
