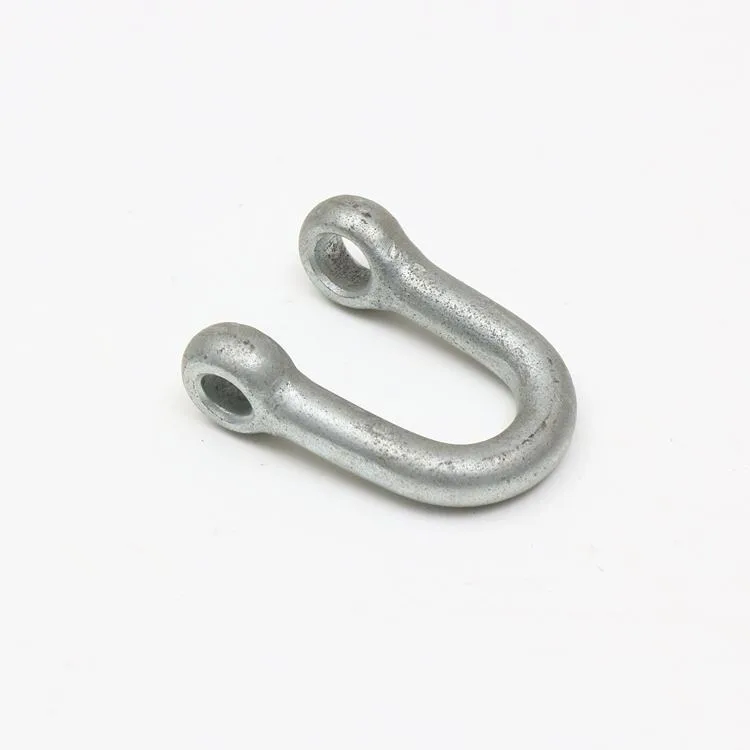

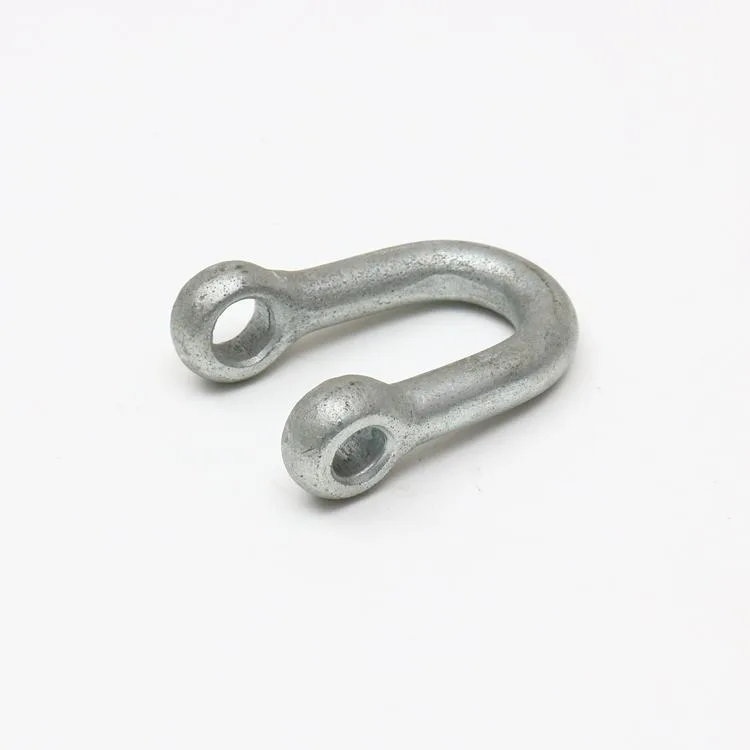

Hot-Forged Alloy Steel Automotive Hanger

This automotive hanger is intended to match the interfaces defined by the equipment assembly drawing. This automotive hanger is specified in Alloy Steel. The manufacturing specification includes hot forging and precision machining.

Technical Overview

• Part: Automotive Hanger
• Material: Alloy Steel
• Processing: Precision Machined, Hot-Forged

Automotive Hanger Design and Assembly

• Vehicle application: identify the relevant assembly and component drawing revision.
• Mating interfaces: specify fastening, mounting or engagement features used in that assembly.
• Procurement scope: distinguish the individual metal component from a complete vehicle subsystem.

Material and Manufacturing Requirements

The specified material is alloy steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Hot forging is included in the specification. Distinguish the forged blank from the finished component, with any subsequent machining, trimming and treatment requirements stated in the order drawing.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Provide a dimensioned part drawing showing the assembly interfaces, required material and the surfaces that determine fit. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
