Custom 4-Axis Machined Wrench Component

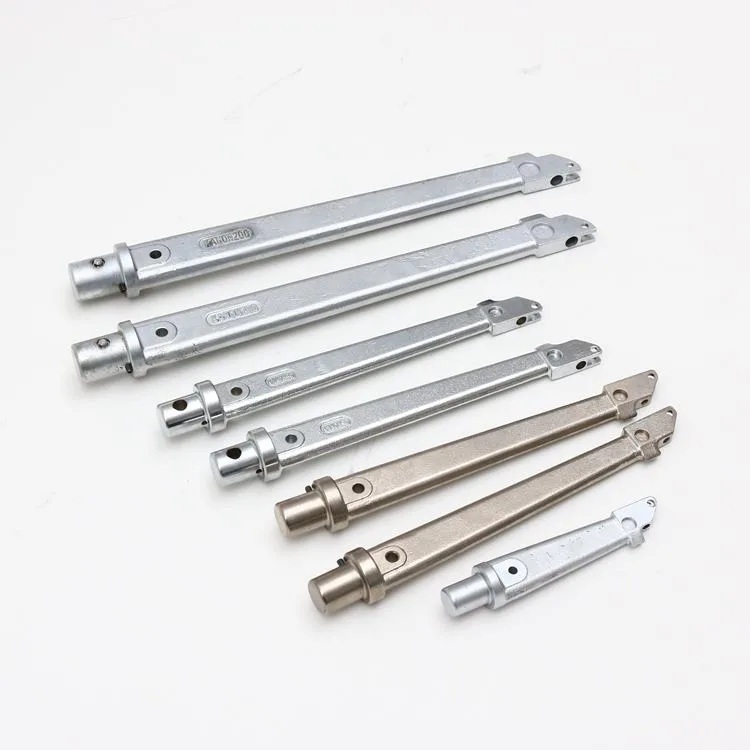

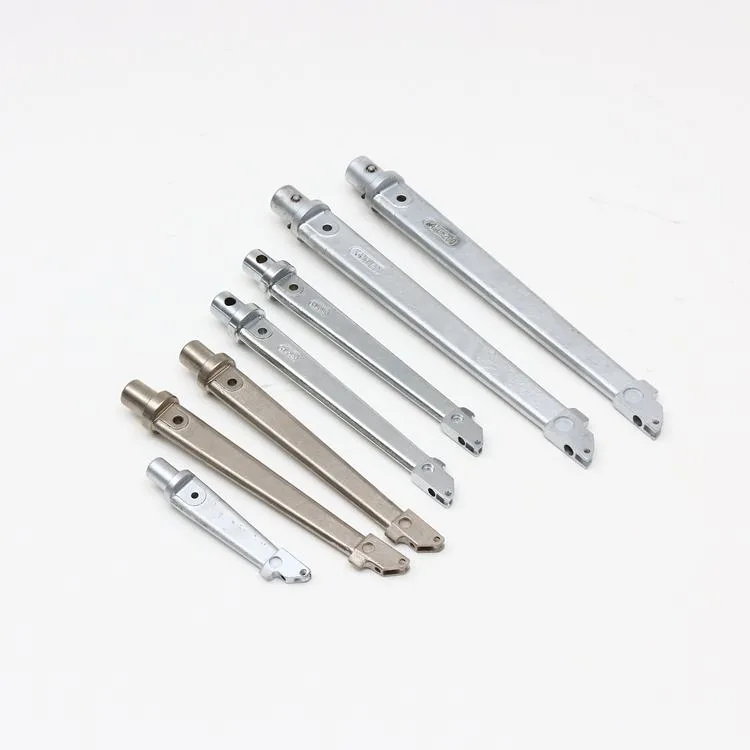

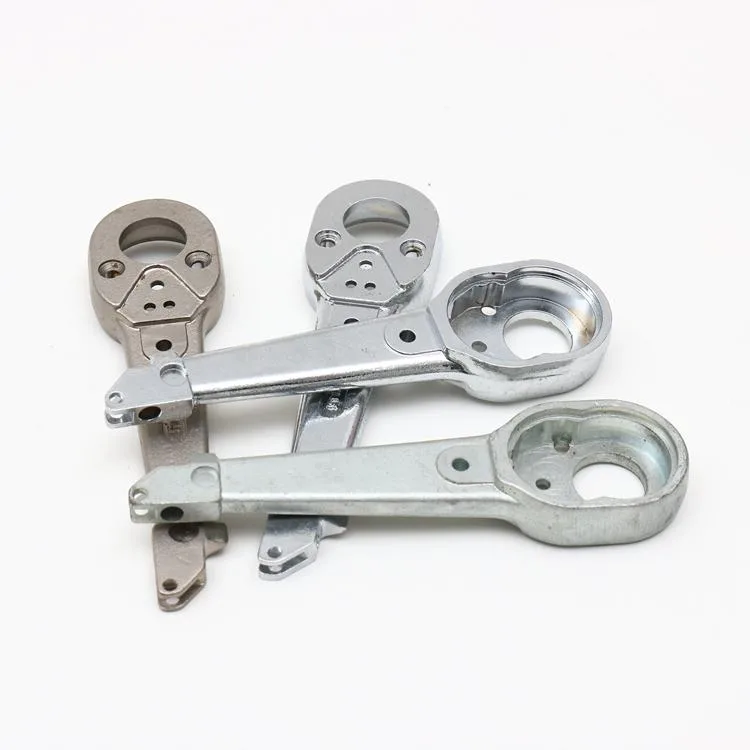

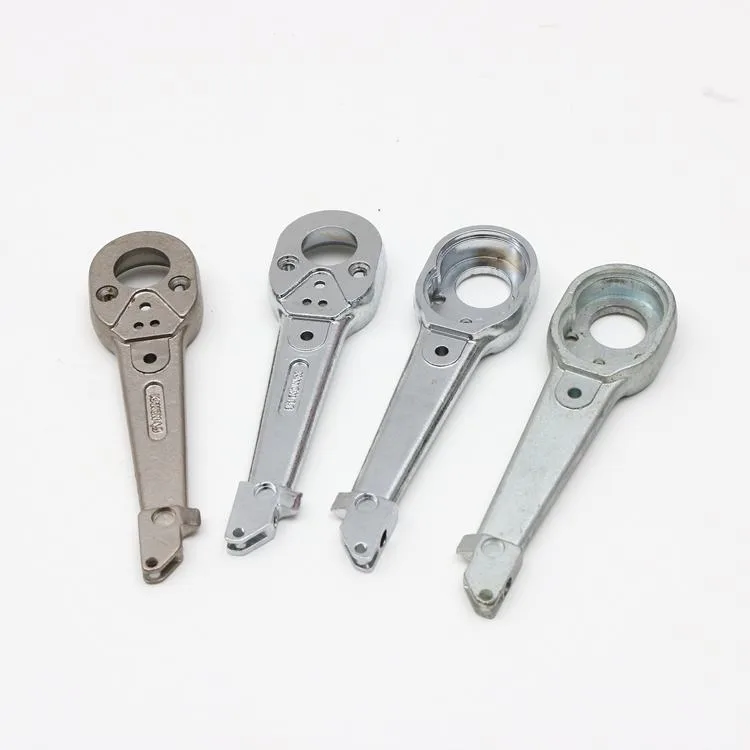

A wrench item with the working profile identified by the component drawing. This wrench component is produced to the specified part drawing. The manufacturing specification includes 4-axis machining.
Technical Overview
- Part: Wrench Component
- Processing: 4-Axis Machined
Wrench Component Design and Assembly
- Working end: specify jaw, socket or engagement geometry for the mating fastener.
- Body dimensions: define the profile and the connection to the handle or other tool component.
- Order requirements: state the material and any treatment or finish needed for the intended tool application.
Material and Manufacturing Requirements
The material grade is to be defined with the order drawing. Identify the intended equipment and service environment so that the material requirement can be agreed before the manufacturing specification is finalized.
The specified route includes 4-axis machining. Define the angular relationship between machined features and identify the common datums used to locate features on different faces of the component.
Quotation Information
Specify jaw or socket geometry, engagement depth and handle connection. Confirm material and treatment requirements for the intended use. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
