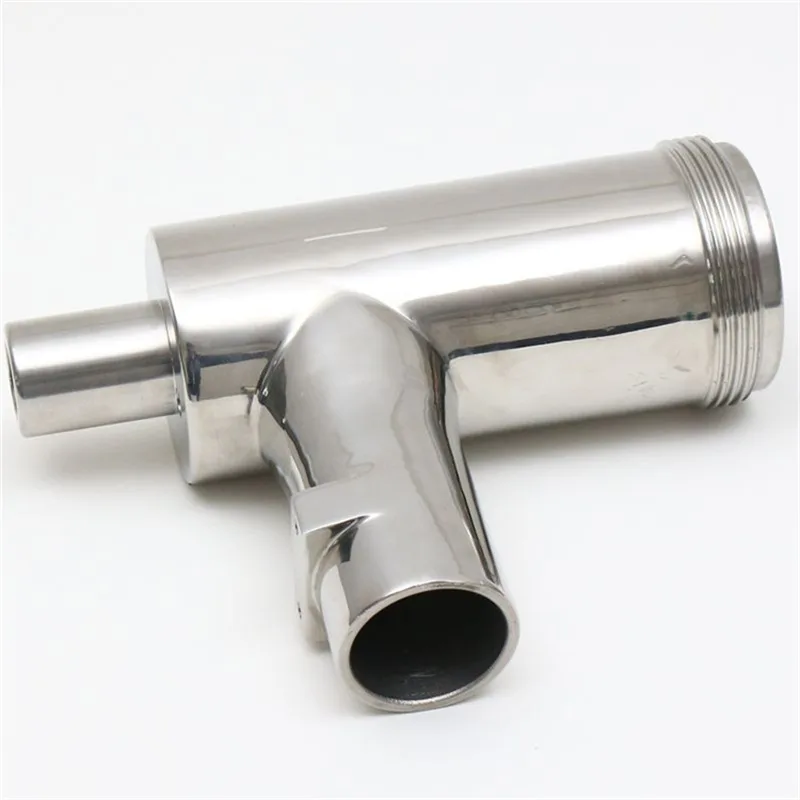

Stainless Steel Meat Grinder Sleeve

A sleeve item for the meat grinder assembly. This meat grinder sleeve is specified in Stainless Steel. The manufacturing specification includes precision machining.

Technical Overview

• Part: Meat Grinder Sleeve
• Material: Stainless Steel
• Processing: Precision Machined

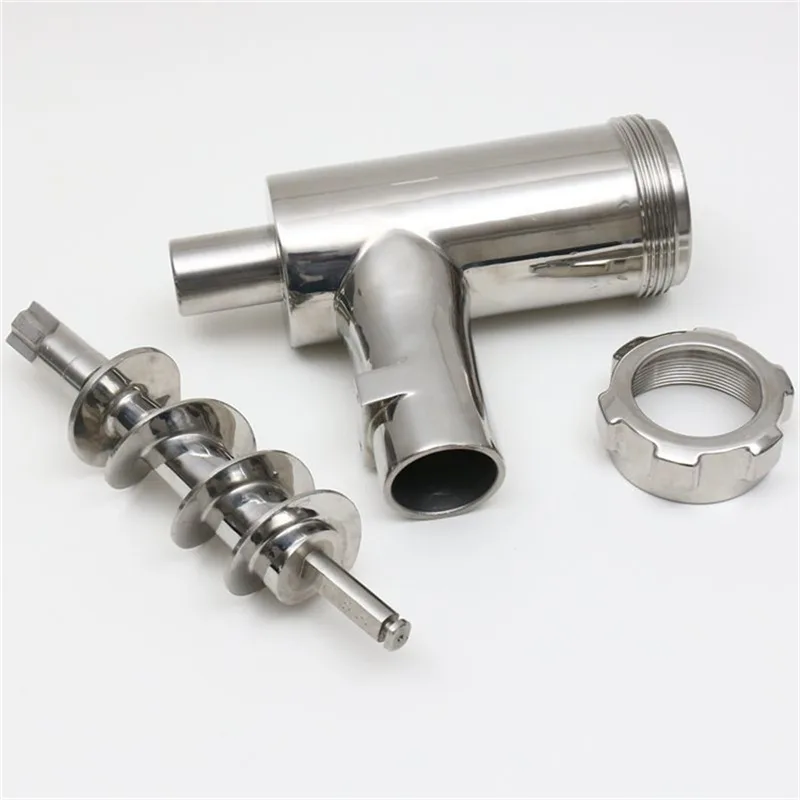

Meat Grinder Sleeve Design and Assembly

• Machine identification: provide the grinder model and the exact component position.
• Mating geometry: show the connection to the drive, chamber, cutter or other relevant neighboring part.
• Contact requirements: specify material grade and surface condition for any areas that contact the processed product.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Precision machining is specified for this component. Identify the critical dimensions, their reference datums and the surfaces requiring a defined finish so the quotation reflects the functional requirements of the actual part.

Quotation Information

Specify bore, outside diameter, length and fit with the surrounding grinder parts. Identify any contact-surface requirements. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
