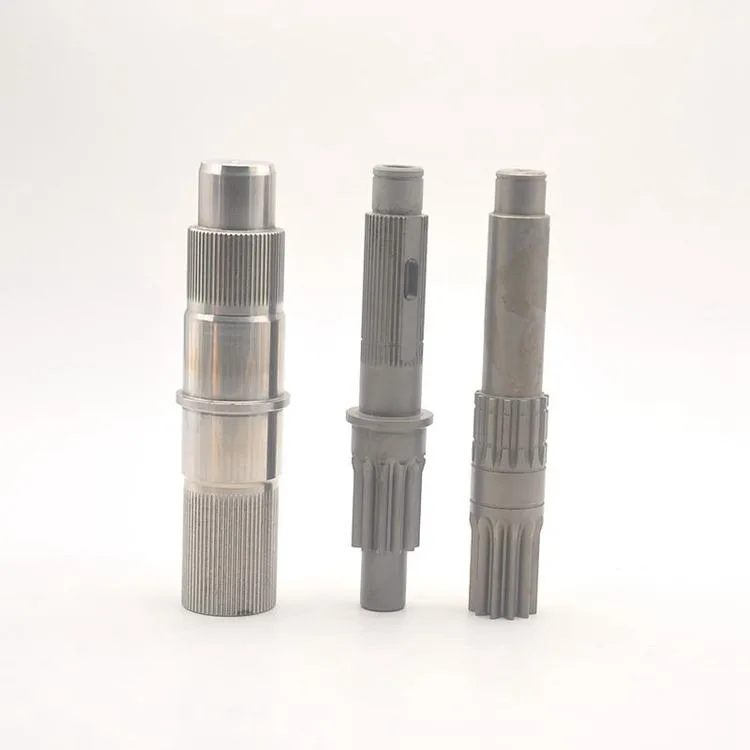

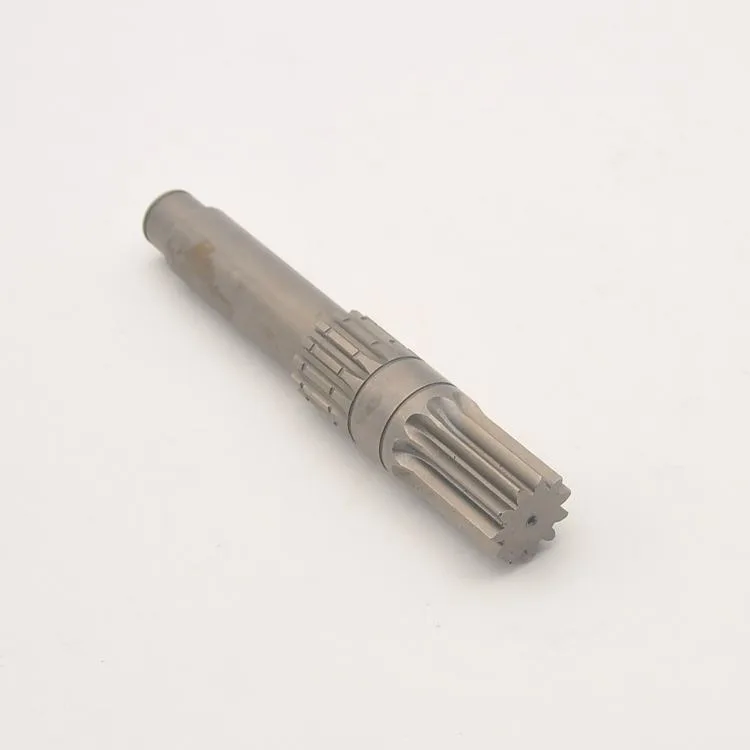

Custom Stainless Steel Splined Shaft

A shaft with a spline interface specified for this component. This splined shaft is specified in Stainless Steel. The manufacturing specification includes machining.

Technical Overview

• Part: Splined Shaft
• Material: Stainless Steel
• Processing: Machined

Splined Shaft Design and Assembly

• Spline definition: state the applicable tooth form, size, tooth count and fit designation.
• Engagement length: show the working spline length and its relationship to shoulders or adjoining features.
• Alignment: identify the reference axis and the mating hub or shaft used for dimensional review.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Specify spline standard, tooth count, major and minor diameters, engagement length and fit with the mating hub. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
