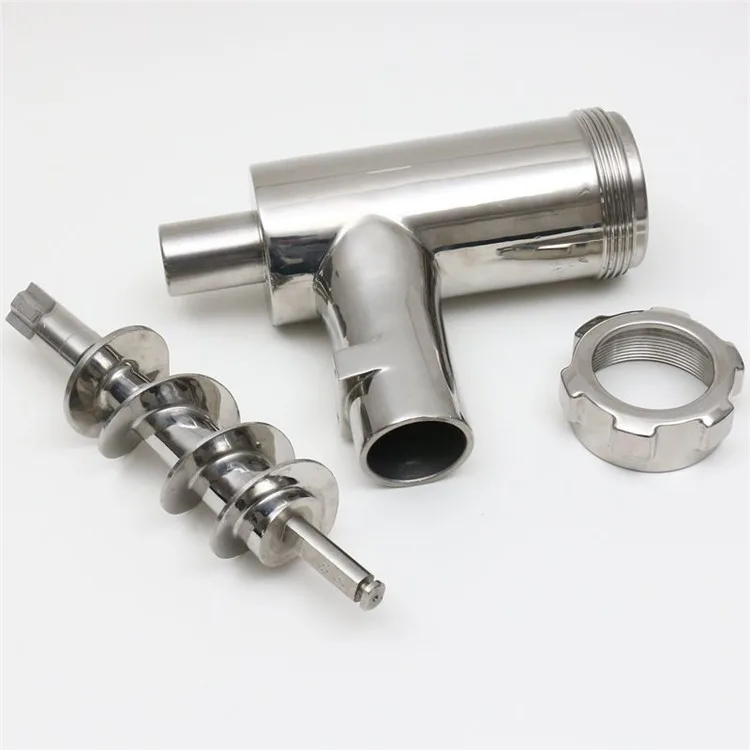

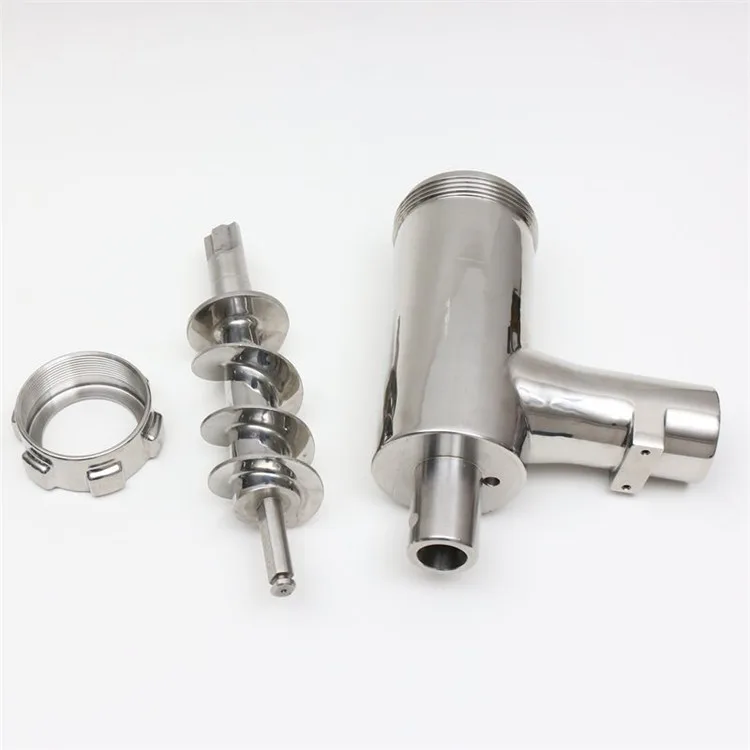

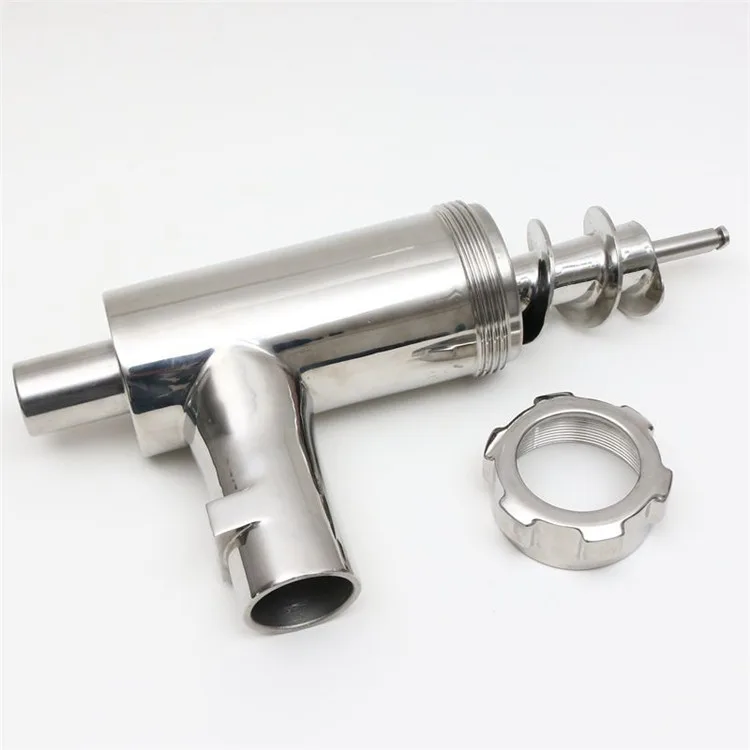

Investment-Cast Stainless Steel Meat Grinder Assembly

An item for the meat grinder assembly used with this component. This meat grinder assembly is specified in Stainless Steel. The manufacturing specification includes investment casting and machining.

Technical Overview

• Part: Meat Grinder Assembly
• Material: Stainless Steel
• Processing: Machined, Investment-Cast

Meat Grinder Assembly Design and Assembly

• Machine identification: provide the grinder model and the exact component position.
• Mating geometry: show the connection to the drive, chamber, cutter or other relevant neighboring part.
• Contact requirements: specify material grade and surface condition for any areas that contact the processed product.

Material and Manufacturing Requirements

The specified material is stainless steel. State the exact grade and delivery condition when requesting a quotation, particularly where the material must match an existing assembly or a defined service requirement.

Investment casting is included in the specified route. Identify which features remain as cast and which require finishing so the casting requirements and final assembly dimensions can be reviewed together.

Machining is included in the part specification. The drawing should distinguish functional interfaces from general surfaces and identify the dimensions that must be coordinated with the adjoining components.

Quotation Information

Identify the exact part and grinder model, then provide mating dimensions and any material or surface requirements for food-contact locations. Include the drawing revision, required quantity and any sample or inspection documentation needed for approval.
